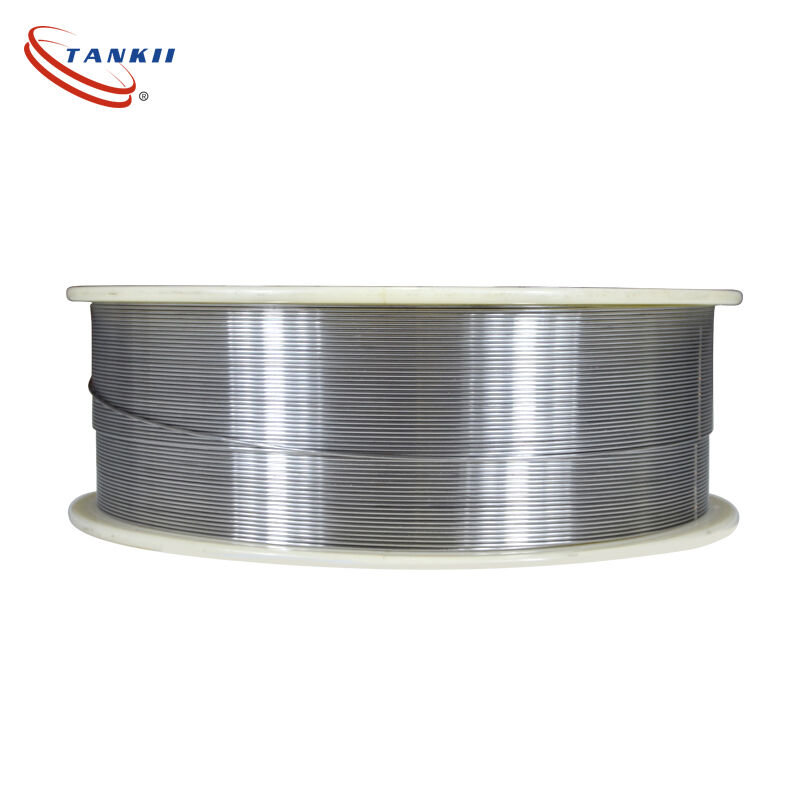

1.6mm 3.17mm Nickel Aluminum 80/20 TaFa 79B Metco 405 Spray Wire

Name: 1.6mm 3.17mm Nickel Aluminum 80/20 TaFa 79B Metco 405 Spray Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Al20
Price: 232.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: Ni80Al20

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: negotiable

Packaging Details: wooden case

Delivery Time: 15-25days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Model NO.:	Ni80Al20	Spool:	DIN300
Product Type:	Wire	Transport Package:	15kg/Spool, Paper Carton, Plywood Box
Specification:	RoHS, ISO 9001: 2008	HS Code:	7505220000
Trademark:	TANKII

Model NO.:	Ni80Al20
Spool:	DIN300
Product Type:	Wire
Transport Package:	15kg/Spool, Paper Carton, Plywood Box
Specification:	RoHS, ISO 9001: 2008
HS Code:	7505220000
Trademark:	TANKII

Description

1.6mm 3.17mm Nickel Aluminum 80/20 TaFa 79B Metco 405 Spray Wire

NiAl 80/20: Thermal Spray Wire

Description
NiAl 80/20 is a solid thermal spray wires, It can be use as bond coatings and for machine element restoration widely. The materials show an exothermic reaction during the spray process, Also can produce dense coatings with exceptionally high bond strengths that self-bond to most metallic substrates and can tolerate elevated temperatures and oxidizing atmospheres. Our Nickel Aluminum 80/20 thermal spray wires can equivalent to: Sulzer Metco 405, Tafa 79B, Nickel Aluminium 80/20. It is specifically designed for arc spray sysytems.

Applications
Bond coatings.
Dimensional Restoration.
Fretting resistance ar high and low temperatures.
Particle erosion resistance at high temperatures.
High-temperature anti-corrosive coating.

Comecial Composition %:

Al	Ni	Mn	Ti	Si	Fe	Cu	C
19~21	Bal.	Max0.3	Max0.4	Max0.3	Max0.5	Max0.2	Max0.005

Mechanical Properties :

Coating Hardness	HV 243
Bonding Strength	68.95 N/mm2
Deposit Rate	10 lbs/hr/100A
Condition	Solid Wire

Physical Properties:

Main physical properties of NiAl 95/5 thermal spray wire is density, size and melting point.

Density.g/cm3	Normal size.mm	Melting point.ºC
8.5	1.6mm-3.2mm	1450

Typical Deposit Characteristics:

Typical Hardness	HRB 75
Bonding Strength	Min 55Mpa
Deposit Rate	10 lbs/hr/100A
Deposit Efficiency	70%
Wire Coverage	0.9 oz/ft2/mil

NiAl 95/5 is an austenitic nickel-aluminium alloy (NiAl alloy) for use in arc and flame spray systems. The alloy produces dense, well bonding coatings.

Typical applications for NiAl95/5 are bond coats, as protective coatings against high-temperature oxidation, protective coatings against scaling of conventional iron base alloys and as build-up coatings for dimensional restoration.
