Nichrome Alloy Ni80Cr20 wire 0.025 mm for heating element

Name: Nichrome Alloy Ni80Cr20 wire 0.025 mm for heating element
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: wooden case

Delivery Time: 15-25days

Payment Terms: T/T, Western Union

Supply Ability: 100tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Model NO.:	Ni80Cr20	Type:	Ni-base Corrosion Resistant Alloy
Condition:	Bright, Annealed, Soft	Colour:	Sliver
Ohm/meter:	Uniform	Delivery Method:	By Air, Sea, Express
Sample:	Available	Usage:	Heater, Resistor
Min Elongation:	20%	Specification:	RoHS, ISO 9001: 2008
Transport Package:	Spool, Carton, Wooden Box

Model NO.:	Ni80Cr20
Type:	Ni-base Corrosion Resistant Alloy
Condition:	Bright, Annealed, Soft
Colour:	Sliver
Ohm/meter:	Uniform
Delivery Method:	By Air, Sea, Express
Sample:	Available
Usage:	Heater, Resistor
Min Elongation:	20%
Specification:	RoHS, ISO 9001: 2008
Transport Package:	Spool, Carton, Wooden Box

Description

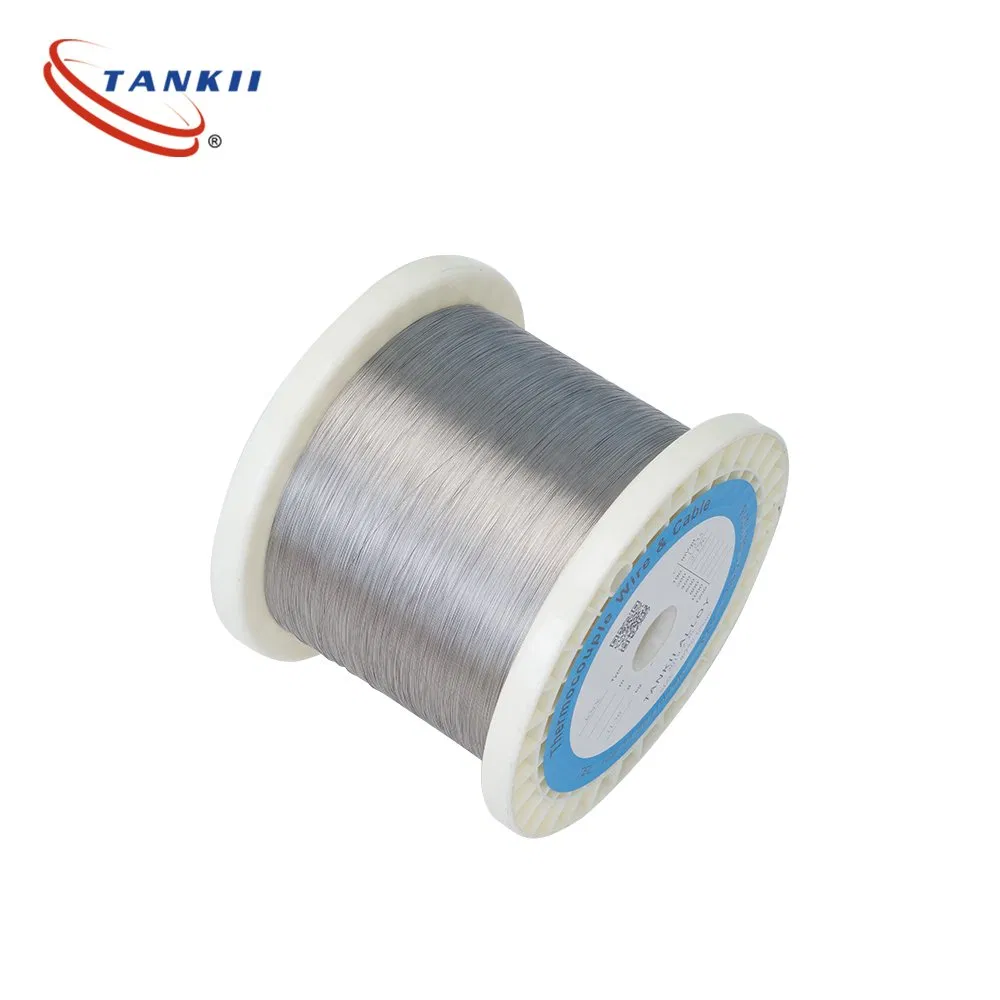

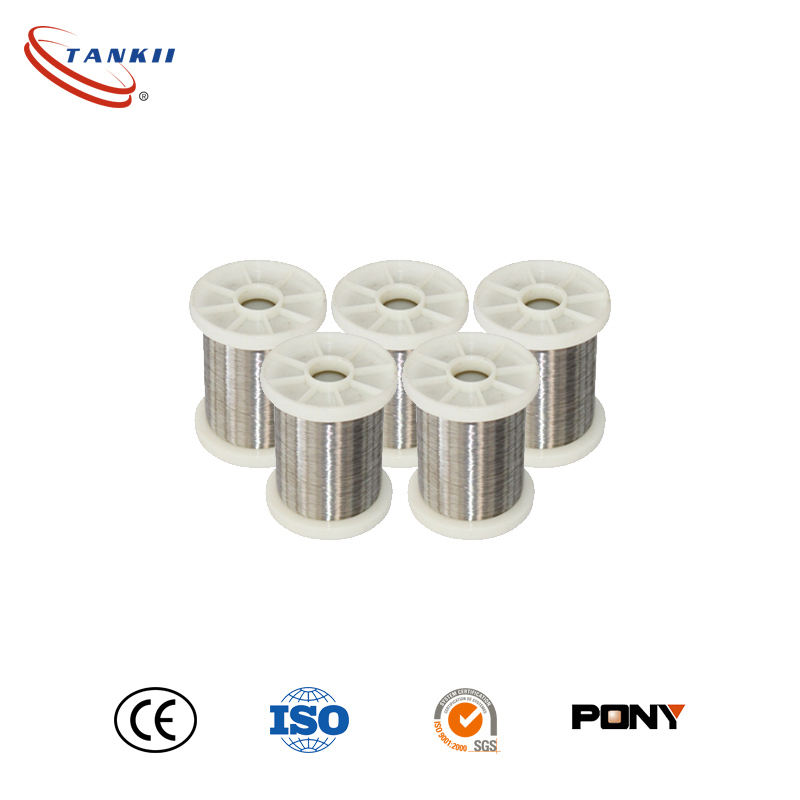

Nichrome Alloy Ni80Cr20 wire 0.025 mm for heating element

Quick Data Show:

Grade: Nichrome 80/20

Chemical Composition: Nickel 80%, Chrome 20%

Electrical Resistivity: 1.09 ohm mm2/m

Max working temperature: 1200 C

Condition: Bright, Annealed, Soft

Wire diameter 0.015mm-1.0mm packing in spool

Rod, Bar diameter 1mm-30mm

Flat Wire, Ribbon, Foil, Sheet thickness 0.005mm~2.5mm, Width 0.5mm~500mm

Plate: Thickness 2.5mm~7mm, width 10mm~500mm

Usually used as heating element, resistor.

Our advantage: Long working Life and anti-oxidation under high temperature

Detailed Description:

Grade: NiCr 80/20 is also called Chromel A, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650, NCHW1

We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 25/20,Karma

Chemical Composition and Properties:

Properties/Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition(%)	Ni	Bal.	Bal.	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Bal.	Bal.	Bal.
Max Working Temperature(ºC)		1200	1250	1150	1100	1100
Resistivity at 20ºC (μ Ω · m)		1.09	1.18	1.12	1.04	1.04
Density(g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m· h· ºC)		60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion (α × 10-6/ºC)		18	17	17	19	19
Melting Point(ºC)		1400	1380	1390	1390	1390
Elongation(%)		> 20	> 20	> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

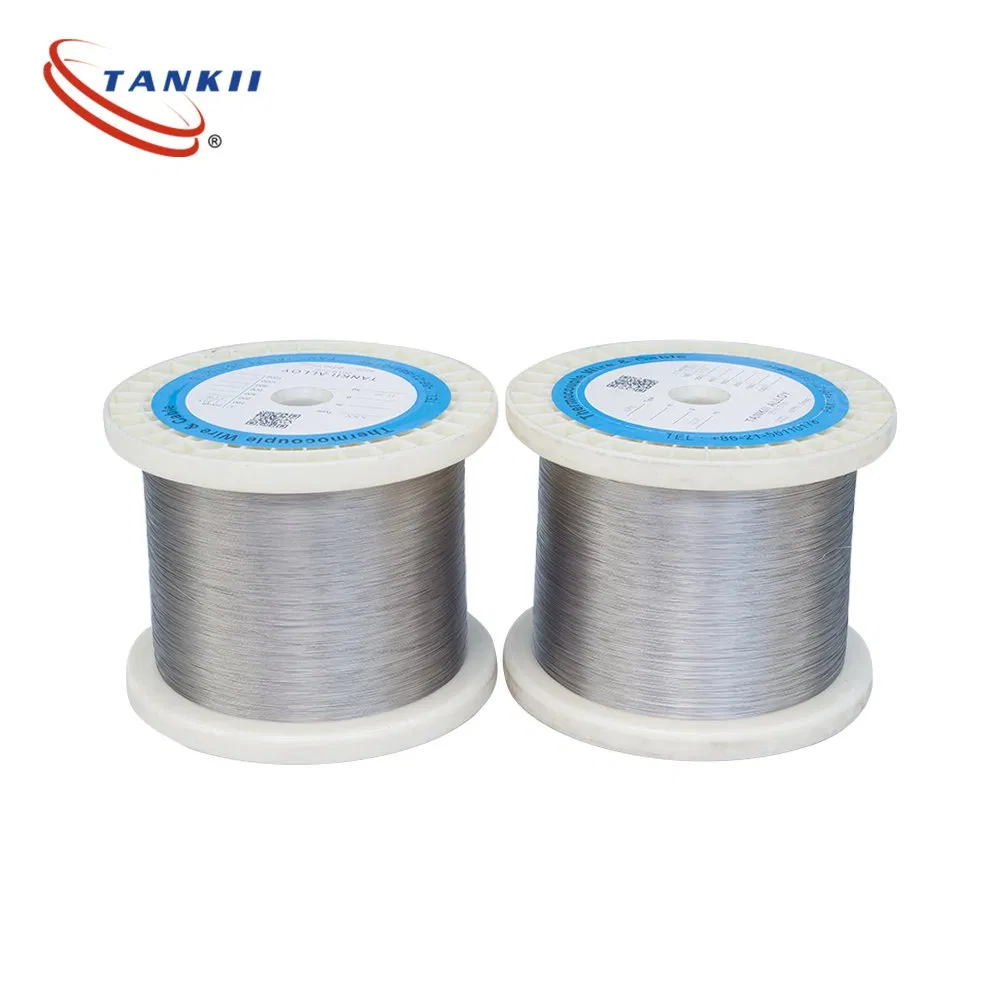

Nichrome Alloy Ni80Cr20 wire 0.025 mm for heating element 0
