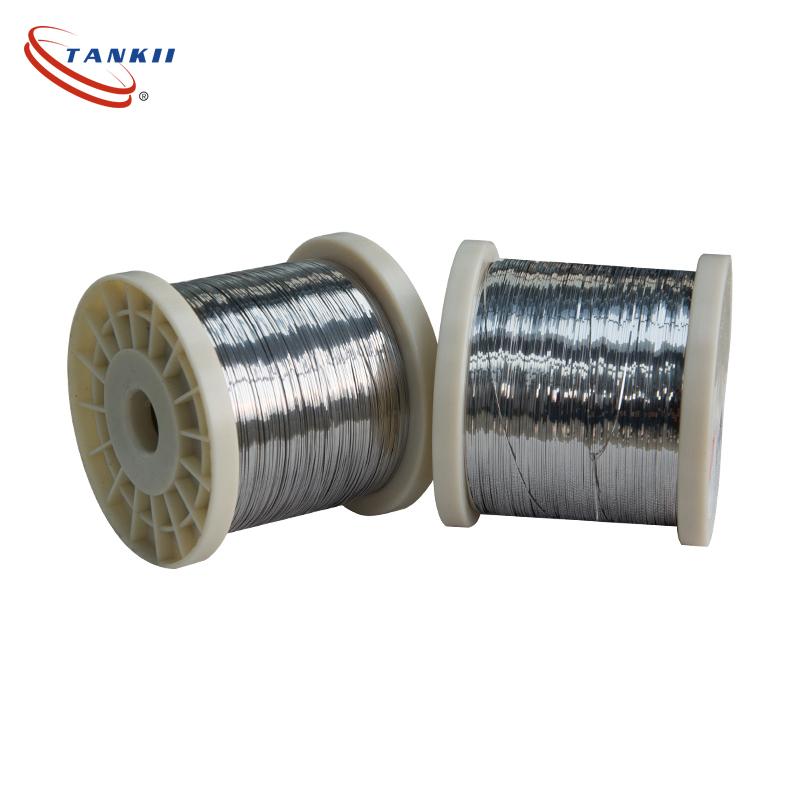

Fecral 13/4 Alloy 0cr13al4 Heating Resistance Ribbon / Flat Alloy Wire

Name: Fecral 13/4 Alloy 0cr13al4 Heating Resistance Ribbon / Flat Alloy Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: FeCrAl 134
Price: 300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: FeCrAl 134

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Price: Negotatioin

Packaging Details: spool 、coil、 wooden case

Delivery Time: 5-25days

Payment Terms: T/T, Western Union

Supply Ability: 20000kg / week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Fecral 13/4 alloy heating ribbon, 0Cr13Al4 flat resistance wire, NiCr alloy heating element


Name:	FeCrAl 134	Material:	FeCrAl Alloy
Size:	Customized	Application:	Etching
MOQ:	20KG	Shape:	Strip
Surface:	Bright

Name:	FeCrAl 134
Material:	FeCrAl Alloy
Size:	Customized
Application:	Etching
MOQ:	20KG
Shape:	Strip
Surface:	Bright

Description

Fecral 13/4 Alloy 0cr13al4 Heating Resistance Ribbon / Flat Alloy Wire

Fecral 13/4 Alloy 0cr13al4 Heating Resistance Ribbon / Flat Alloy Wire

FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.

Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements

FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.

They are typically used in electrical heating elements in industrial furnaces and home appliances.

Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower pr

Grade		1Cr13Al4	TK1	0Cr25Al5	0Cr20Al6Re	0Cr23Al5	0Cr19Al3	0Cr21Al6Nb	0Cr27Al7Mo2
Nominal composition %	Cr	12.0-15.0	22.0-26.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	5.0-7.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	0.04-1.0	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Bal.		Bal.	Bal.	Bal.	Bal.	Bal.	Bal.
								Nb0.5	Mo1.8-2.2
Resistivity 20ºC		1.25	1.48	1.42	1.40	1.35	1.23	1.45	1.53
Density(g/cm³)		7.4	7.1	7.1	7.16	7.25	7.35	7.1	7.1
Max continuous operating temperature(ºC)		650	1400	1250	1250	1250	1100	1350	1400

Grade: CrAl 20/5, Cr25Al5, Cr21Al6Nb, TK1

Max working temperature: 1250~1400°c

Resistivity: 1.35~1.5 mm2 Ω/m

Diameter 6mm~14mm usually
