K Type Thermocouple Wire Chromel Alumel KP KN 0.01~12mm

Name: K Type Thermocouple Wire Chromel Alumel KP KN 0.01~12mm
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: K type
Price: 20 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Model Number: K type

Payment & Shipping Terms

Minimum Order Quantity: 15KG

Price: 20 usd/kg

Packaging Details: Carton+wooden crate

Delivery Time: 15DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10TON/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    chromel alumel K type thermocouple wire, KN K type thermocouple wire, KP K type thermocouple wire


Description

K Type Thermocouple Wire Chromel Alumel KP KN 0.01~12mm

Basic Info.

Model NO.

Application

Heating

Conductor Material

Chromel Alumel

Sheath Material

Bare

Insulation Material

Bare

Material Shape

Round Wire

Range of Application

Flame Retardant

Certification

ISO9001

Brand

Tankii

Surface

Bright/ oxidized

Dia

0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm

Condition

Bright, Annealed, Soft

Diameter

0.012-8mm

shape

round, ribbon, strip, rods

SGS

yes

RoHS

yes

MTC

yes

Free sample

yes

Item

K type thermocouple wire chromel alumel KP KN 0.01

Transport Package

Spool, Carton, Wooden Box

Specification

0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mm

Trademark

TANKII

Origin

China

HS Code

7505220000

Production Capacity

50 Tons/Month

Product Description

K type thermocouple wire chromel alumel KP KN 0.01~12mm (type K KCA KCB KPX KNX)

Product Description
Tankii NiCr-Ni(Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Detailed Parameter

Chemical Composition
Conductor Name	Polarity	Code	Nominal Chemical Composition /%
Conductor Name	Polarity	Code	Ni	Cr	Si
Ni-Cr	Positive	KP	90	10	--
Ni- Si	Negative	KN	97	--	3

Working Temperature
Diameter/mm	Long time Working temperature /ºC	Short period Working temperature /ºC
0.3	700	800
0.5	800	900
0.8,1.0	900	1000
1.2,1.6	1000	1100
2.0,2.5	1100	1200
3.2	1200	1300

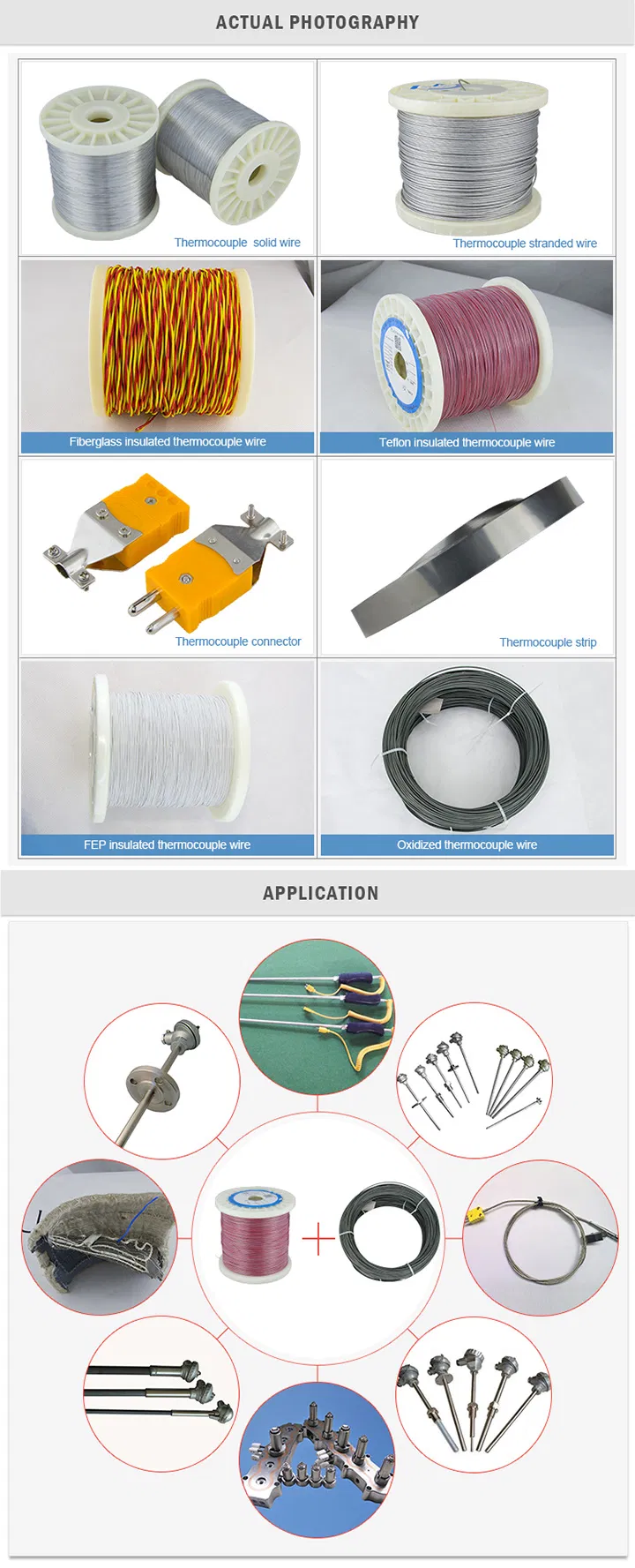

Thermocouple wire's Application:
1. Heating - Gas burners for ovens
2. Cooling - Freezers
3. Engine protection - Temperatures and surface temperatures
4. High temperature control - Iron casting

K Type Thermocouple Wire Chromel Alumel KP KN 0.01~12mm 0

K Type Thermocouple Wire Chromel Alumel KP KN 0.01~12mm 0

K Type Thermocouple Wire Chromel Alumel KP KN 0.01~12mm 1

K Type Thermocouple Wire Chromel Alumel KP KN 0.01~12mm 2
