Fecral Alloy 0Cr13al4 Resistance Heating Fecral Electric Strip / Ribbon

Name: Fecral Alloy 0Cr13al4 Resistance Heating Fecral Electric Strip / Ribbon
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0Cr13al4
Price: 26.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: 0Cr13al4

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotatioin

Packaging Details: Spool,coil,cartoon

Delivery Time: 5-30 days

Payment Terms: T/T, Western Union

Supply Ability: 20000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Fecral alloy Resistance Heating Strip, Fecral Electric Strip, 0Cr13al4 Resistance Heating Fecral Electric Strip


Product Name:	Spark Plug Wire	Shape:	Wire
Material:	FeCrAl	Application:	Spark Plug Wire
Size:	Customer's Requirement	Type:	Bare

Product Name:	Spark Plug Wire
Shape:	Wire
Material:	FeCrAl
Application:	Spark Plug Wire
Size:	Customer's Requirement
Type:	Bare

Description

Fecral Alloy 0Cr13al4 Resistance Heating Fecral Electric Strip / Ribbon

Fecral alloy 0Cr13al4 Resistance Heating Fecral Electric Strip/Ribbon

Chemical Content, %

C	P		S	Mn	Si	Cr	Ni	Al	Fe	Other
Max					Si	Cr	Ni	Al	Fe	Other
0.12		0.025	0.020	0.50	≤0.7	12.0~15.0	≤0.60	4.0~6.0	Balance	-

Mechanical Properties

Max Continuous Service Temperature:
Resisivity 20ºC:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:

950ºC
1.25ohm mm2/m
7.40g/cm3
52.7 KJ/m·h·ºC
15.4×10-6/ºC (20ºC~1000ºC)
1450ºC
Min 16%
Ferrite
magnetic

Temperature Factor of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC
1.000	1.005	1.014	1.028	1.044	1.064	1.090

700ºC	800ºC	900ºC	1000ºC	1100ºC	1200ºC	1300ºC
1.120	1.132	1.142	1.150	-	-	-

Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It i the ne environmental protection electric heating wire.And an alternative to the costly nichrome wire.Can be customized according to customer requirements

Usage:
It is widely used in industrial furnace, household electrical appliances, infrared heater, etc.

The key properties:
1.The thickness of surface insulation resistance to oxidation layer: 5-15 μ m.
2. Insulation resistance: multimeter detection infinity.
3.The voltage-endurance of insulating single layer is greater than the alternating voltage 60 ν without breakdown.
4. The use of voltage: 6-380 ν.
5. Using temperature: Maximum1200 ºC
6. Service life: not less than 6000 hours.
7.Thermal shock performance: Electric heating element can withstand the cold and hot impact 600-6000 times without deformation.

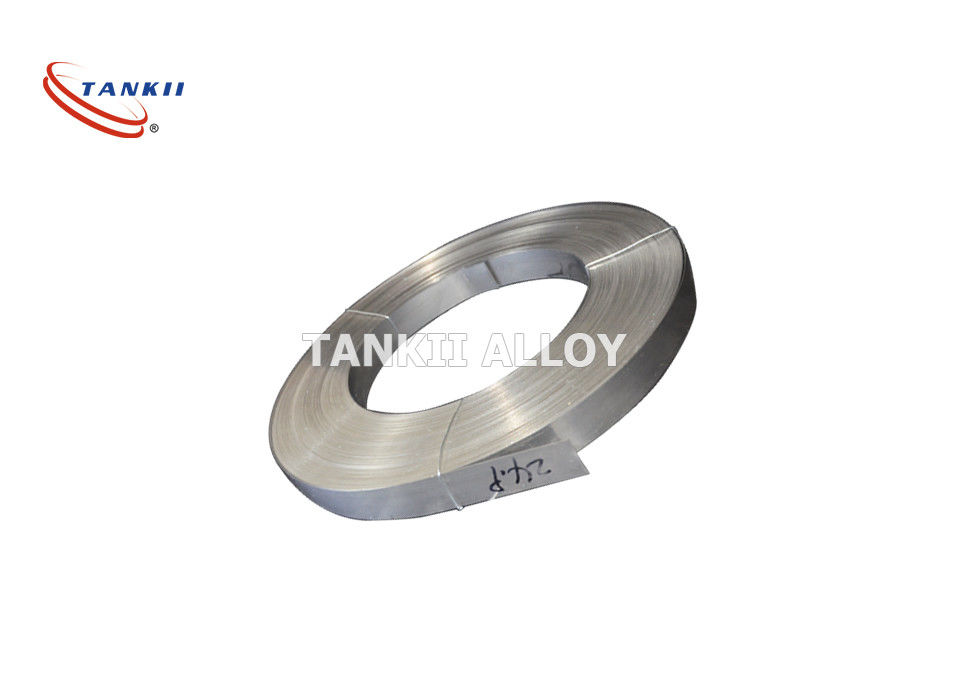

Fecral Alloy 0Cr13al4 Resistance Heating Fecral Electric Strip / Ribbon 0

Fecral Alloy 0Cr13al4 Resistance Heating Fecral Electric Strip / Ribbon 1
