Pure Nickel 270 Strip UNS N02270 For Corrosion-Resistant Products

Name: Pure Nickel 270 Strip UNS N02270 For Corrosion-Resistant Products
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: UNS N02270)
Price: 300.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Model Number: UNS N02270)

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    pure Nickel 270 Strip, UNS N02270 Strip, UNS N02270 Nickel 270 Strip


Description

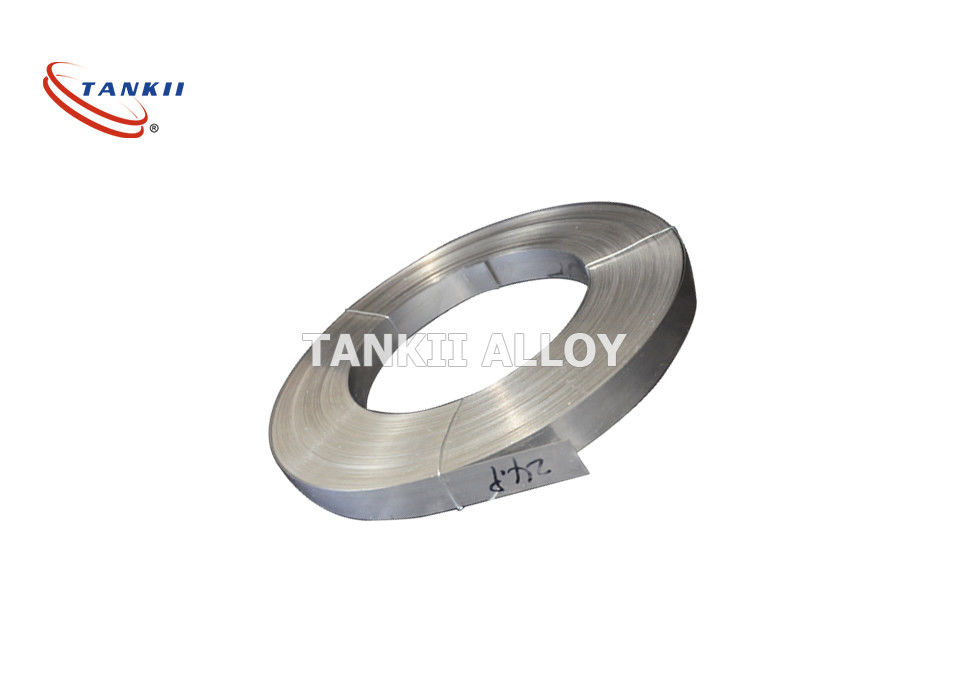

Pure Nickel 270 Strip UNS N02270 For Corrosion-Resistant Products

Product Description

Nickel 270 Strip

1.Description

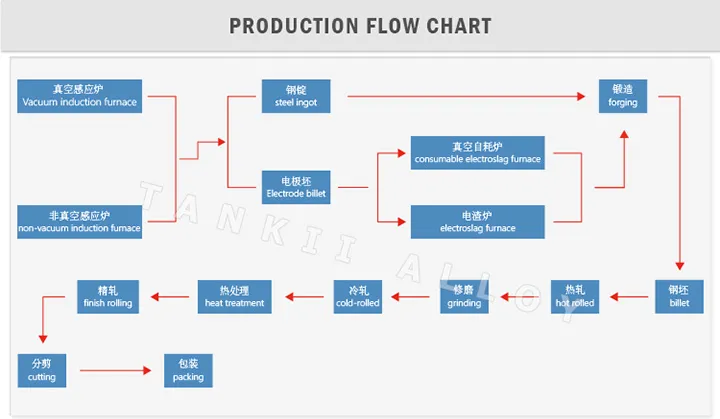

Pure nickel 270 stripare made by advanced vacuum melting process.and by forging,rolling,annealing
and drawing. Good mechanical properties corrosion resistance pure nickel 270 strip is used in electric
apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

Nickel 270 alloy is a high purity nickel alloy that has high ductility and low base hardness. It is made by powder metallurgy. It contains 99.95% nickel in addition to traces of minor elements.

1). Chemical composition(%)

Nickel min 99.9%

2). Physical properties

Grade	Density (g/cm3)	Melting Range (ºC)	Curie point (ºC)	Volume resistivity (μΩ.cm)	Thermal conductivity (W/m. ºC)
Nickel 270	8.89	1435-1446	360		79.3(20ºC)

3). Mechnical properties

FORM		Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)	Hardness (RB)
Bar	Hot-finished	105-310	60-85	55-35	45-80
Bar	Cold-drawn,annealed	105-210	55-75	55-40	75-98
Strip	Hard	480-795	620-895	15-2	>90
Strip	Annealed	105-210	380-580	55-40	<70
Wire	Annealed	105-345	380-580	50-30
	No.1 Temper	275-520	485-655	40-20
	Spring Temper	725-930	860-1000	15-2

2.Specification
Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 1000mm
Sheet/Coil:Thickness:0.002-0.125mm

3.Usage
Good mechanical properties corrosion resistance pure nickel 270 strip is used in electric apparatus,lead for lamp
and chemical machinery.Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

4.Features
Good mechanical properties corrosion resistance pure nickel 270 strip has Stable performance;Anti-oxidation;
Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface
condition without spots.

5,application

Fluorescent light components
Electronic cathodes or anodes
Resistance thermometers

6.Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet

6)Shanghai Tankii Alloy Material Co., Ltd. is your best choice on nickel strip.
If you need, pls be free to contact us. I am Martin Lee
