Nickel - Chrome Flat Wire High Resistance Wire Maintain Good Chemical Stability

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiation

Packaging Details: spool+plastic bag+carton+pallet for resistance wires

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

nichrome wire

Color:
Sliver Or Polish
Conductor Material:
Ni-Cr
Thickness:
: 0.02----4.0mm
Condition:
Bright Annealed
Feature::
High Nickel, High Resistance
Certificate::
ISO 9001 RoHS SGS
Width:
2.5----250mm
Type:
Nickel Strip
Color:
Sliver Or Polish
Conductor Material:
Ni-Cr
Thickness:
: 0.02----4.0mm
Condition:
Bright Annealed
Feature::
High Nickel, High Resistance
Certificate::
ISO 9001 RoHS SGS
Width:
2.5----250mm
Type:
Nickel Strip
Description

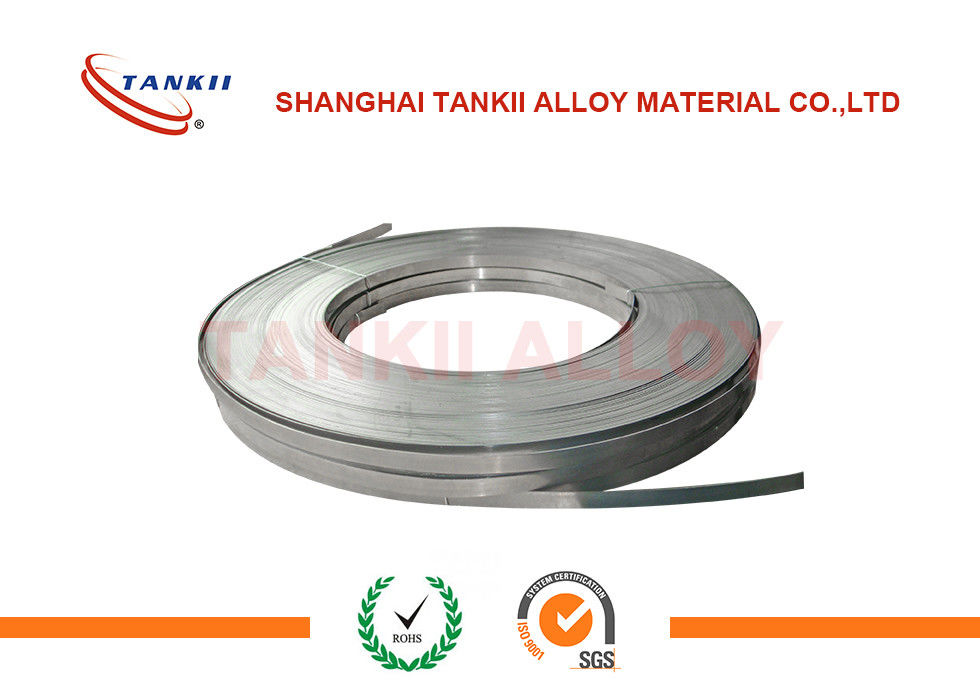

Nickel - Chrome Flat Wire High Resistance Wire Maintain Good Chemical Stability



Nickel-Chrome flat wire High-Resistance Wire, Under High Temperature To Maintain Good Chemical Stability.





Code: Cr20Ni80,Cr30Ni70,Cr15Ni60,Cr20Ni35,Cr20Ni30
Nickel - Chrome Flat Wire High Resistance Wire Maintain Good Chemical Stability 0
        Material: Nickel-Chrome flat wire
Nickel - Chrome Flat Wire High Resistance Wire Maintain Good Chemical Stability 0
        Specifications: Thickness:0.04-0.80mm, width:0.4-6.0mm
Nickel - Chrome Flat Wire High Resistance Wire Maintain Good Chemical Stability 0
        features: nickel-chromium, nickel, ferrochrome alloy wire with electric high temperature oxidation resistance, high strength, not soften and a series of advantages. When used in a long time, the same type and the permanent elongation is very small, which is more Cr20Ni80 alloy with excellent comprehensive properties, is to produce high-quality varieties of choice for electric components. The products are widely used in industrial furnace, metallurgy, machinery, household appliances and other industries producing heating elements and resistance elements


Product Specifications:

Flat wire

Thickness

0.04-0.80mm

Flat wire

Tidth

0.4-6.0mm


Nickel-chromium, nickel, ferrochrome heating wire main performance tables:

Material/performance

Cr20Ni80

Cr30Ni70

Cr15Ni60

Cr20Ni35

Cr20Ni30

Com
position
%

Ni

Rest

Rest

55.0~61.0

34.0~37.0

30.0~34.0

Cr

20.0~23.0

28.0~31.0

15.0~18.0

18.0~21.0

18.0~21.0

Fe

≤1.0

≤1.0

Rest

Rest

Rest

Maximum
temperature℃

1200

1250

1150

1100

1100

Meltiing point℃

1400

1380

1390

1390

1390

Density g/cm3

8.40

8.10

8.20

7.90

7.90

Resistivity
μΩ·m,20℃

1.09±0.05

1.18±0.05

1.12±0.05

1.00±0.05

1.04±0.05

Elongation at rupture

≥20

≥20

≥20

≥20

≥20

Specific heat
J/g.℃

0.440

0.461

0.494

0.500

0.500

Thermal conductivity
KJ/m.h℃

60.3

45.2

45.2

43.8

43.8

Coefficient of lines expansion
a×10-6/℃
(20~1000℃)

18.0

17.0

17.0

19.0

19.0

Micrographic structure

Austenite

Austenite

Austenite

Austenite

Austenite

Magnetic properties

Nonmagnetic

Nonmagnetic

Nonmagnetic

 Weak
magnetic

Weak magnetic


Nickel-chromium flat wire main performance tables:

W*T
(mm)



Cross sectional area
(mm2)

Cr20Ni80

Cr15Ni60

resistivity
(1.09 ±0.05μΩ·m)

resistivity
(1.12 ±0.05μΩ·m)

Resistance per meter
(20ºC Ω/m)



Length per kg.
(m/kg)

Weight per meter
(kg/m)

Resistance per meter
(20ºC Ω/m)

Length per kg.
(m/kg)

Weight per meter
(kg/m)

0.08×0.2

0.0152

71.71

7832

0.000128

73.03

8023

0.000125

0.08×0.4

0.0304

35.86

3916

0.000255

36.51

4012

0.000249

0.08×0.6

0.0456

23.90

2611

0.000383

24.34

2674

0.000374

0.08×0.8

0.0608

17.93

1958

0.000511

18.26

2006

0.000499

0.08×1

0.076

14.87

1567

0.000638

45.00

1605

0.000623

0.08×1.2

0.0912

12.39

1305

0.000766

12.50

1337

0.000748

0.08×1.5

0.114

9.912

1044

0.000958

10.00

1070

0.000935

0.1×0.2

0.019

57.37

6266

0.000160

58..42

6418

0.000156

0.1×0.4

0.038

28.68

3133

0.000319

29.21

3209

0.000312

0.1×0.6

0.057

19.12

2089

0.000479

19.47

2139

0.000467

0.1×0.8

0.076

14.34

1566

0.000638

14.61

1605

0.000623

0.1×1

0.095

11.89

1253

0.000798

12.00

1284

0.000779

0.1×1.5

0.143

7.902

833

0.00120

7.97

853

0.00117

0.1×2

0.19

5.947

627

0.00160

6.00

642

0.00156

0.1×3

0.285

3.825

418

0.002394

3.895

428

0.002337

0.1×4

0.38

2.868

313

0.003192

2.921

321

0.003116

0.1×5

0.475

2.295

251

0.00399

2.337

257

0.003895

0.15×0.2

0.0285

38.25

4184

0.000239

38.95

4279

0.000234

0.15×0.4

0.057

19.12

2089

0.000479

19.47

2139

0.000467

0.15×0.6

0.0855

12.75

1392

0.000718

12.98

1426

0.000701

0.15×0.8

0.114

9.561

1044

0.000958

9.74

1070

0.000935

0.15×1

0.143

7.902

833

0.00120

7.97

853

0.00117

0.15×1.5

0.214

5.280

556

0.00180

5.33

570

0.00175

0.15×2

0.285

3.965

418

0.00239

4.00

428

0.00234

0.15×3

0.4275

2.550

278

0.003591

2.596

285

0.0035055

0.15×4

0.57

1.912

209

0.004788

1.947

214

0.004674

0.15×5

0.7125

1.530

167

0.005985

1.558

171

0.0058425

0.15×6

0.855

1.275

139

0.007182

1.298

143

0.007011

0.2×0.4

0.076

14.34

1567

0.000638

14.61

1605

0.000623

0.2×0.6

0.114

9.561

1044

0.000958

9.74

1070

0.000935

0.2×0.8

0.152

7.171

783

0.00128

7.30

802

0.00125

0.2×1

0.19

5.947

627

0.00160

6.00

642

0.00156

0.2×1.5

0.285

3.965

418

0.00239

4.00

428

0.00234

0.2×2

0.38

2.974

313

0.00319

3.00

321

0.00312

0.2×3

0.57

1.982

209

0.00479

2.00

214

0.00467

0.2×4

0.76

1.434

157

0.006384

1.461

160

0.006232

0.2×5

0.95

1.147

125

0.00798

1.168

128

0.00779

0.2×6

1.14

0.956

104

0.009576

0.974

107

0.009348

0.4×0.6

0.228

4.781

522

0.00192

4.87

535

0.00187

0.4×0.8

0.304

3.586

392

0.00255

3.65

401

0.00249

0.4×1

0.38

2.974

313

0.00319

3.00

321

0.00312

0.4×1.5

0.57

1.982

209

0.00479

2.00

214

0.00467

0.4×2

0.76

1.487

157

0.00638

1.50

161

0.00623

0.4×3

1.14

0.991

104

0.00958

1.00

107

0.00935

0.4×4

1.52

0.750

78.3

0.01277

0.757

80.2

0.0125

0.4×5

1.9

0.574

63

0.01596

0.584

64

0.01558

0.4×6

2.28

0.478

52

0.019152

0.487

53

0.018696

0.6×0.8

0.456

2.390

261

0.00383

2.43

267

0.00374

0.6×1

0.57

1.982

209

0.00479

2.00

214

0.00467

0.6×1.5

0.855

1.322

139

0.00718

1.33

143

0.00701

0.6×2

1.14

0.991

104

0.00958

1.00

107

0.00935

0.6×3

1.71

0.661

69.6

0.01436

0.667

71.3

0.0140

0.6×4

2.28

0.500

52.2

0.01915

0.504

53.5

0.0187

0.8×1.0

0.76

1.487

157

0.0638

1.50

161

0.00623

0.8×1.5

1.14

0.991

104

0.00958

1.00

107

0.00935

0.8×2

1.52

0.743

78.3

0.01277

0.750

80.2

0.0125

0.8×3

2.28

0.496

52.2

0.01915

0.500

53.5

0.0187

0.8×4

3.04

0.375

39.2

0.02554

0.378

40.1

0.0249

0.8×5

3.8

0.287

31

0.03192

0.292

32

0.03116

0.8×6

4.56

0.239

26

0.038304

0.243

27

0.037392

1.0×1.5

1.425

0.793

83.5

0.01197

0.800

85.6

0.0117

1.0×2

1.9

0.595

62.7

0.01596

0.600

64.2

0.0156

1.0×3

2.85

0.396

41.8

0.02394

0.400

42.8

0.0234

1.0×4

3.8

0.300

31.3

0.03192

0.303

32.1

0.0312

1.0×5

4.75

0.229

25

0.0399

0.234

26

0.03895

1.0×6

5.7

0.191

21

0.04788

0.195

21

0.04674


Delivery status:
1,Roduct packaging and wire cloth strip wrapped in packages, in rolls supply. wire and flat, around the axis of PlasticSupply.
2,Export products and customers with special requirements, negotiated settlement.





Nickel - Chrome Flat Wire High Resistance Wire Maintain Good Chemical Stability 3Nickel - Chrome Flat Wire High Resistance Wire Maintain Good Chemical Stability 4Nickel - Chrome Flat Wire High Resistance Wire Maintain Good Chemical Stability 5
