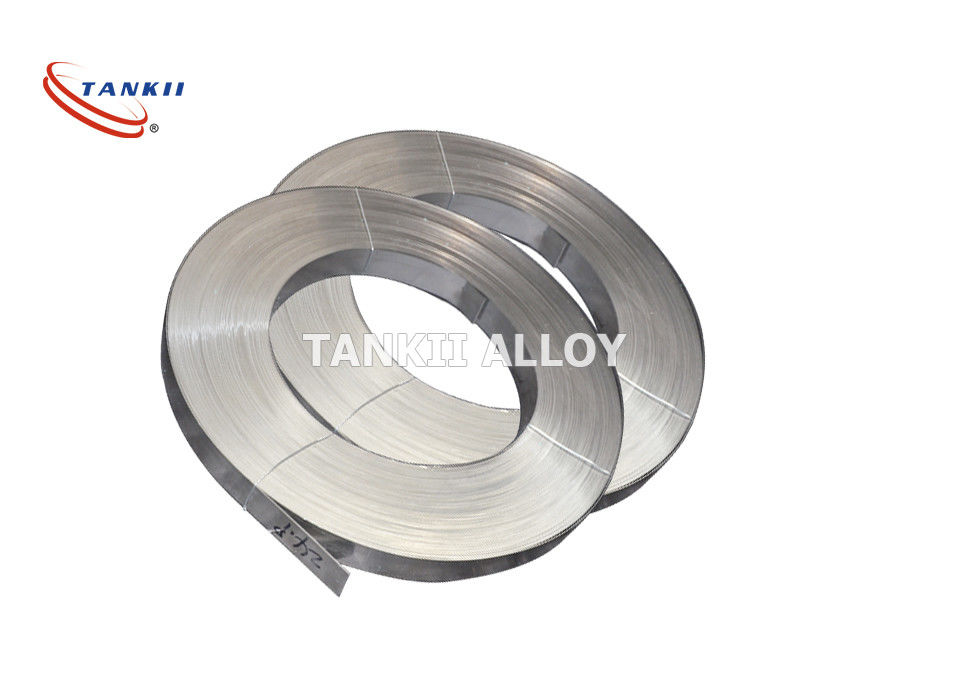

High Quality Ni200/Ni201/Ni6 Pure Nickel Band For 18650 Batteries

Name: High Quality Ni200/Ni201/Ni6 Pure Nickel Band For 18650 Batteries
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni200
Price: negotiable USD
Availability: InStock

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: Ni200

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Packaging Details: In Coil

Delivery Time: 5~14 dyas after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 tons/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Ni200 Pure Nickel Band, 18650 Batteries Pure Nickel Band, High Quality Pure Nickel Band


Resistivity:	1.5	Density:	8.89
Thickness:	0.02~ 0.1mm	Package:	Wooden Box
Leading Time:	5~14 Dyas	Item:	Pure Nickel Foil Ni200 0.05mm Thickness Foil Used For Electric Apparatus / Chemical Machinery

Resistivity:	1.5
Density:	8.89
Thickness:	0.02~ 0.1mm
Package:	Wooden Box
Leading Time:	5~14 Dyas
Item:	Pure Nickel Foil Ni200 0.05mm Thickness Foil Used For Electric Apparatus / Chemical Machinery

Description

High Quality Ni200/Ni201/Ni6 Pure Nickel Band For 18650 Batteries

High Quality Ni200/Ni201/Ni6 Pure Nickel Band for 18650 Batteries

It has good mechanical strength,corrosion-resistant and heat-resistance strength.

It is widely used in electric apparatus,chemical machinery,good processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.

Chemical Composition

Grade	Element Composition/%
Grade	Ni+Co	Mn	Cu	Fe	C	Si	Cr	S
Ni201	≥99.0	≤0.35	≤0.25	≤0.30	≤0.02	≤0.3	≤0.2	≤0.01
Ni200	≥99.0	/≤0.35	≤0.25	≤0.30	≤0.15	≤0.3	≤0.2	≤0.01

Propertis

Grade	Density	Melting point	Coefficient of expansion	Modulus of rigidity	Modulus of elasticity	Electrical resistivity
Ni200	8.9g/cm3	1446°C	13.3 µm/m °C (20-100°C)	81kN/mm2	204kN/mm2	9.6μW• cm
Ni201	8.9g/cm3	1446°C	13.1µm/m °C(20-100°C)	82kN/mm2	207kN/mm2	8.5μW• cm

Diameter(mm)	Tolerance(mm)	Diameter(mm)	Tolerance(mm)
0.03-0.05	±0.005	>0.50-1.00	±0.02
>0.05-0.10	±0.006	>1.00-3.00	±0.03
>0.10-0.20	±0.008	>3.00-6.00	±0.04
>0.20-0.30	±0.010	>6.00-8.00	±0.05
>0.30-0.50	±0.015	>8.00-12.0	±0.4

Specification of Cold-drawing Strip Type

Thickness(mm)	Tolerance(mm)	Width(mm)	Tolerance(mm)
0.05-0.10	±0.010	5.00-10.0	±0.2
>0.10-0.20	±0.015	>10.0-20.0	±0.2
>0.20-0.50	±0.020	>20.0-30.0	±0.2
>0.50-1.00	±0.030	>30.0-50.0	±0.3
>1.00-1.80	±0.040	>50.0-90.0	±0.3
>1.80-2.50	±0.050	>90.0-120.0	±0.5
>2.50-3.50	±0.060	>120.0-250.0	±0.6

Type	Dimension(mm)	Cell spacing(mm)	Width	Dimension of the square hole(mm)	Nickel Plated Steel Strip	Pure Nickel	Type of battery pack
Type	Dimension(mm)	Cell spacing(mm)	Width	Dimension of the square hole(mm)	Length for per Kg(m)		With holder	Without holder
1P 18650 Nickel strip	0.15 x 7 x 18.4	18.4	7	-	128.3	112.6		√
	0.15 x 7 x 19	19		-	127.9	112.1	√
	0.15 x 7 x 19.5	19.5		-			√
	0.15 x 7 x 20.25	20.25		-	127.6	111.9	√
2P 18650 Nickel strip	0.15 x 26 x 19(13.5 x 13.5)	19	26	12 x 12	47.2	41.4	√
	0.15 x 27 x 19.5(12 x 14.5)	19.5	27	12 x 14.5	48.9	42.9	√
	0.15 x 27 x 19.75(12.5 x 12.5)	19.75		12.5 x 12.5	47	41.2	√
	0.15 x 27 x 20.25(13.5 x 13.5)	20.25		13.5 x 13.5	48.9	42.9	√
2P 18650 Nickel strip	0.15 x 25.5 x 18.4 (11 x 12.5)	18.4	25.5	11 x 12.5	48.9	42.9		√
Dislocation 2P 18650 Nickel strip	0.15 x 25.5 x 18.4(8 x 9.5)	18.4		8 x 9.5	41.1	36.1		√
Dislocation 2P 18650 Nickel strip	0.15 x 25.5 x 19.5(8 x 9.5)	19.5		8 x 9.5	38.6	33.8	√
3P 18650 Nickel strip	0.15 x 44.5 x 18.4(11 x 12.5)	18.4	44.5	11 x 12.5	27.4	24		√
	0.15 x 4245 x 19(12 x 12)	19	45	12 x 12	29.1	25.5	√
	0.15 x 47.5 x 20.25(12.65 x 12.65)	20.15	47.5	12.65 x 12.65	27.4	24	√
	0.15 x 47.5 x 20.25(13.5 x 13.5)	20.25	47.5	13.5 x 13.5	29.4	25.7	√
4P 18650 Nickel strip	0.15 x 63 x 18.5(11 x 12.5)	18.5	63	11 x 12.5	21.6	18.9		√
	0.15 x 64 x 19 (12 x 12)	19	64	12 x 12	21	18.4	√
	0.15 x 67.95 x 20.15(12.65 x 12.65)	20.15	67.95	12.65 x 12.65	19.6	17.2	√
	0.15 x 67.7 x 20.25(13.5 x 13.5)	20.25	67	13.5 x 13.5	21.3	18.7	√
5P 18650 Nickel strip	0.15 x 83 x 19(12 x 12)	19	83	12 x 12	16.4	14.4	√
	0.15 x 88.1 x 20.15(12.65 x 12.65)	20.15	88.1	12.65 x 12.65	19.7	17.3	√
	0.15 x 87.9 x 20.25(13.5 x 13.5)	20.25	87.9	13.5 x 13.5	16.7	14.6	√
6P 18650 Nickel strip	0.15 x 102 x 19 (12 x 12)	19	102	12 x 12	13.5	11.9	√
	0.15 x 108.25 x 20.15	20.15	108.25	12.65 x 12.65	12.6	11	√
	0.15 x 108.1 20.25(13.5 x 13.5)	20.25	108.1	13.5 x 13.5	13.7	12	√
7P 18650 Nickel strip	0.15 x 121 x 19 (12 x 12)	19	121	12 x 12	11.5	10	√
	0.15 x 128.4 x 20.15(12.65 x 12.65)	20.15	128.4	12.65 x 12.65	10.7	9.4	√
	0.15 x 128.3 x 20.25(13.5 x 13.5)	20.25	128.3	13.5 x 13.5	11.6	10.2	√
8P 18650 Nickel strip	0.15 x 140 x 19 (12 x 12)	19	140	12 x 12	10	8.7	√

Typical application areas for battery
