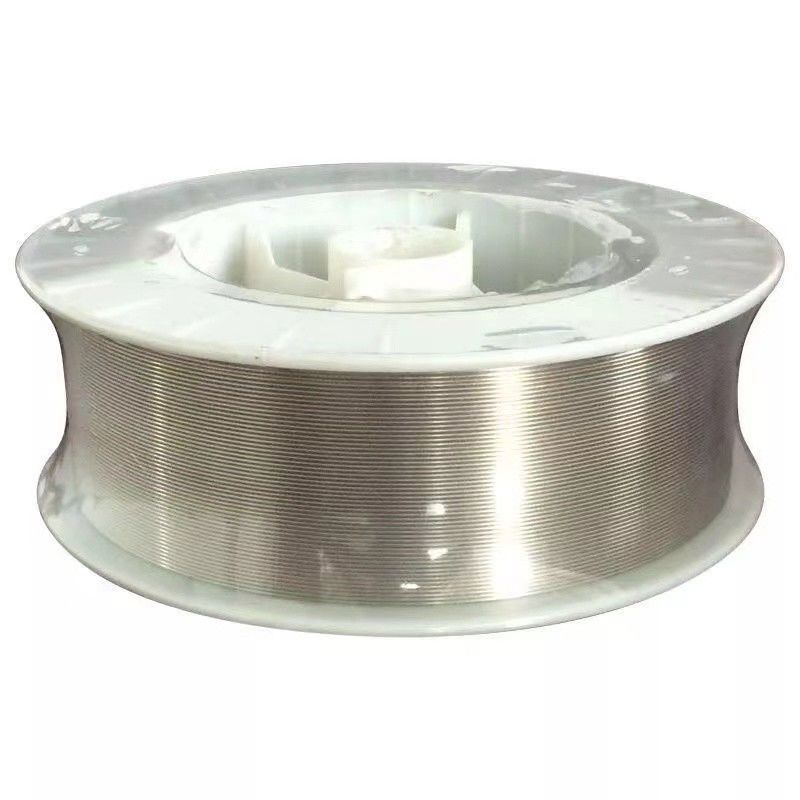

Large Stocks Thermal Spray Wire Tafa 24ca Wire 0Cr25Al5 1.6mm 2.0mm

Name: Large Stocks Thermal Spray Wire Tafa 24ca Wire 0Cr25Al5 1.6mm 2.0mm
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: (0Cr25Al5
Price: 5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: (0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 15kg

Price: 5usd/kg

Packaging Details: Standard

Delivery Time: 5-15days

Payment Terms: L/C, Western Union, T/T, D/P

Supply Ability: 100ton/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    2.0mm Thermal Spray Wire, Large Stocks Thermal Spray Wire, 1.6mm Thermal Spray Wire


Description

Large Stocks Thermal Spray Wire Tafa 24ca Wire 0Cr25Al5 1.6mm 2.0mm

Product Description

Large Stocks Thermal Spray Tafa 24ca Wire (0Cr25Al5)

(Common Name:0Cr25Al5,Aluchrom-O)

0Cr25Al5 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications for 0Cr25Al5 are used in electric ceramic cooktop,industrial furnace,heaters.

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.06	0.025	0.025	0.70	Max 0.60	23.0~26.0	Max 0.60	4.5~6.5	Bal.	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
500	700	23

Typical Physical properties

Density (g/cm3)	7.10
Electrical resistivity at 20ºC(ohm mm2/m)	1.42
Conductivity coefficient at 20ºC (WmK)	13

Coefficient of thermal expansion
Temperature	Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC	15

Specific heat capacity
Temperature	20ºC
J/gK	0.46

Melting point (ºC)	1500
Max continuous operating temperature in air (ºC)	1250
Magnetic properties	magnetic

Temperature Factor of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC	700ºC	800ºC	900ºC	1000ºC	1100ºC	1200ºC	1300ºC
1	1.002	1.005	1.008	1.013	1.021	1.030	1.038	1.040	1.042	1.044	1.046	1.047

Style of supply

Alloys Name	Type	Dimension
0Cr25Al5W	Wire	D=0.03mm~8mm
0Cr25Al5R	Ribbon	W=0.4~40	T=0.03~2.9mm
0Cr25Al5S	Strip	W=8~250mm	T=0.1~3.0
0Cr25Al5F	Foil	W=6~120mm	T=0.003~0.1
0Cr25Al5B	Bar	Dia=8~100mm	L=50~1000

Mechanical Properties of Ni95Al5 thermal spray wire

Coating Hardness	HRB 75
Bonding Strength	68.95 N/mm2
Deposit Rate	10 lbs/hr/100A
Condition	Solid Wire

Normal Features of Ni95Al5 thermal spray wire:
(1)High mechanical properties
(2)High corrosion resistance
(3)High temperature coefficient of electrical resistance

Large Stocks Thermal Spray Wire Tafa 24ca Wire 0Cr25Al5 1.6mm 2.0mm 0

Large Stocks Thermal Spray Wire Tafa 24ca Wire 0Cr25Al5 1.6mm 2.0mm 0
