Fecral Alloy 0cr25al5 0cr21al4 0cr23al5 0cr21al6nb Tape / Foil / Strip For Braking Resistor

Name: Fecral Alloy 0cr25al5 0cr21al4 0cr23al5 0cr21al6nb Tape / Foil / Strip For Braking Resistor
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0cr25al5 0cr21al4 0cr23al5 0cr21al6nb
Price: 5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: 0cr25al5 0cr21al4 0cr23al5 0cr21al6nb

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: 5usd/kg

Packaging Details: Standard

Delivery Time: 5-15days

Payment Terms: D/P, T/T, T/T, Western Union

Supply Ability: 100ton/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    0cr25al5 Fecral Alloy, 0cr23al5 Fecral Alloy, 0cr21al4 Fecral Alloy


Description

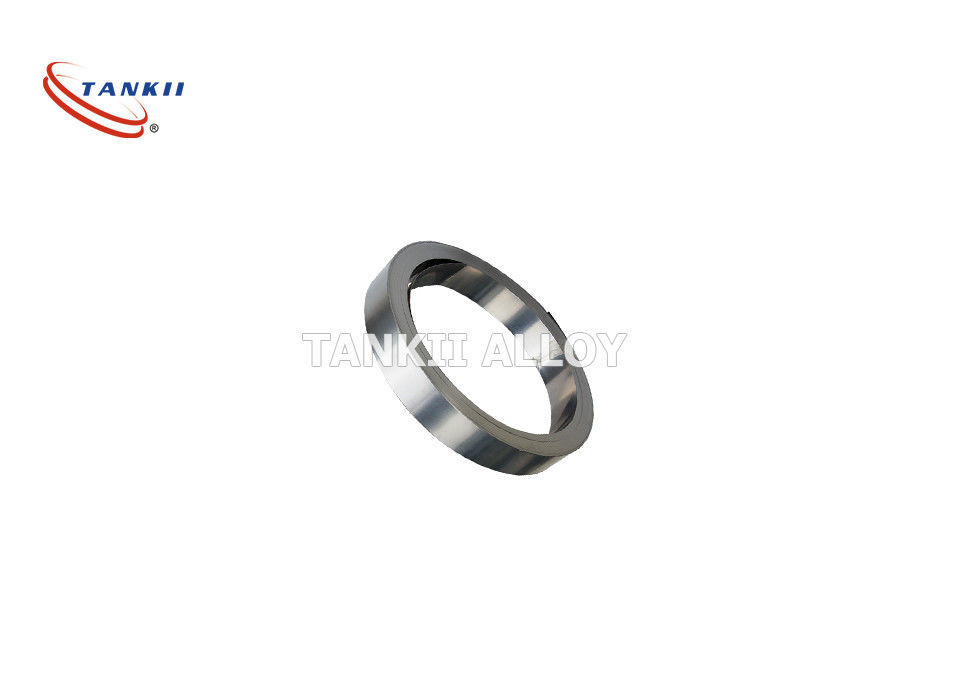

Fecral Alloy 0cr25al5 0cr21al4 0cr23al5 0cr21al6nb Tape / Foil / Strip For Braking Resistor

Product Description

Fecral Alloy 0cr25al5 0cr21al4 0cr23al5 0cr21al6nb Tape/Foil/Strip for Braking Resistor

1)Alloy grades:
OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
In the form of wire, ribbon/strip:
Round Wire: Dia 0.04mm-8.0mm
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm

2) Product Specifications:
Ferro-Chrome Alloys (Ferritic Alloys):
OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.
Nickel-Chrome Alloys (Ni-Cu Alloys):
Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
Constantan Alloys (Cu-Ni Alloys):
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.

3) High quality assured:

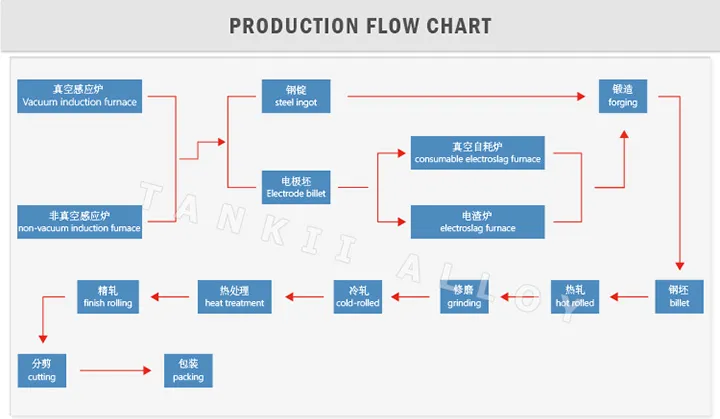

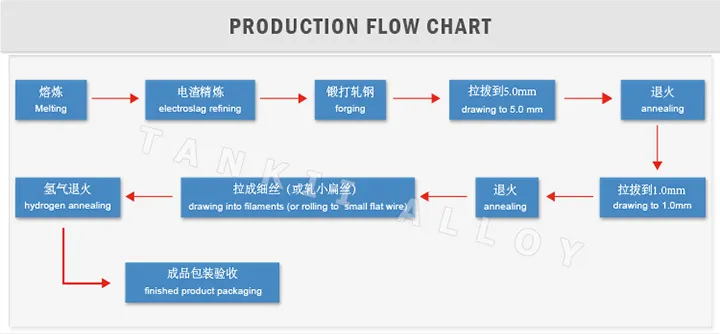

Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.

4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD

Max Continuous Service Temperature:
Resisivity 20'C
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:

1250'C
1.35+/-0.06ohm mm2/m
7.25g/cm3
60.2 KJ/m@h@'C
15.0×10-6/'C (20'C~1000'C)
1500'C
Min 12%
Ferrite
magnetic

C	P		S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.06		0.025	0.020	0.50	≤0.6	20.5-23.5	≤0.60	4.2-5.3	Balance	-

Fecral Alloy 0cr25al5 0cr21al4 0cr23al5 0cr21al6nb Tape / Foil / Strip For Braking Resistor 0

Fecral Alloy 0cr25al5 0cr21al4 0cr23al5 0cr21al6nb Tape / Foil / Strip For Braking Resistor 1
