1cr20al3 0cr25al5 0Cr21Al6Nb Superalloy Round Bar Hot Rolled Mold Steel

Name: 1cr20al3 0cr25al5 0Cr21Al6Nb Superalloy Round Bar Hot Rolled Mold Steel
Brand: Tankii
SKU: 1cr20al3 0cr25al5 0Cr21Al6Nb
Price: 5 USD
Availability: InStock
Rating: 5 (135 reviews)

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: 1cr20al3 0cr25al5 0Cr21Al6Nb

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: 5usd/kg

Packaging Details: Standard

Delivery Time: 5-15days

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 100ton/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    0Cr21Al6Nb Round Bar, Hot Rolled Mold Steel Round Bar


Description

1cr20al3 0cr25al5 0Cr21Al6Nb Superalloy Round Bar Hot Rolled Mold Steel

Product Description

Best Price 1cr20al3 0cr25al5 0Cr21Al6Nb Superalloy Round Bar Hot Rolled Mold Steel

1Cr13Al4, 0Cr25Al5, 0Cr23Al5, 0Cr21Al6, 0Cr21Al4, 0Cr21Al6Nb, 0Cr27Al7Mo2 is one kind of normal material of Fe-Cr-Al alloy.
FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,goodanti-oxidation and anti-corrosion under high temperature.
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive,
For other industries producing heating elements and resistance elements.
0Cr21Al6Nb
Chemical Content(%)

C	P	S		Mn		Si	Cr	Ni	Al	Fe	Other
Max
0.05	0.025		0.025		0.70	Max 0.6	21.0~23.0	Max 0.60	5.0~7.0	Bal.	Nb 0.5

Mechanical Properties

Max Continuous Service Temp	1350ºC
Resisivity at 20ºC	1.45 ohm mm2/m
Density	7.1 g/cm3
Thermal Conductivity	46.1 KJ/m·h·ºC
Coefficient of Thermal Expansion	16.0×10-6/ºC
Melting Point	1510ºC
Tensile Strength	637~784 Mpa
Elongation	Min 12%
Section Variation Shrink Rate	65~75%
Repeatedly Bend Frequency	Min 5 times
Continuous Service Time	-
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

Grade	Highest temperature	Resistivity	Melting point	Tensile strength	Elongation
0Cr21Al4	1100ºC	1.23±0.06μΩ.m	1500ºC	750	≥12
0Cr25Al5	1250ºC	1.42±0.07μΩ.m	1500ºC	750	≥12
0Cr21Al6NbCo	1350ºC	1.43±0.07μΩ.m	1510ºC	750	≥12
0Cr27Al7Mo2	1400ºC	1.53±0.07μΩ.m	1520ºC	750	≥10
KSC	1350ºC	1.44±0.05μΩ.m	1510ºC	750	≥16
Cr20Ni80	1200ºC	1.09±0.05μΩ.m	1400ºC	750	≥20
Cr15Ni60	1150ºC	1.12±0.05μΩ.m	1390ºC	750	≥20
Cr20Ni35	1100ºC	1.04±0.05μΩ.m	1390ºC	750	≥20
Cr20Ni30	1100ºC	1.04±0.05μΩ.m	1390ºC	750	≥20

Grade	Chemical composition%
	C	P	S	Mn	Si	Cr	Ni	Al	Fe
	≤				Si	Cr	Ni	Al	Fe
0Cr21Al4	0.12	0.025	0.025	0.7	≤1.0	17-21	≤0.6	3-4	balance
0Cr25Al5	0.06	0.025	0.02	0.5	≤0.6	23-26	≤0.6	4.5-6.5	balance
0Cr21Al6Nb	0.05	0.025	0.02	0.5	≤0.6	21-23	≤0.6	5-7	balance
0Cr27Al7Mo2	0.05	0.025	0.02	0.2	≤0.4	26.5-27.8	≤0.6	6-7	balance
Cr20Ni80	0.08	0.02	0.015	0.6	0.75-1.6	20-23	balance	<0.5	≤1.0
Cr15Ni60	0.08	0.02	0.015	0.6	0.75-1.6	15-18	55-61	<0.5	balance
Cr20Ni35	0.08	0.02	0.015	1.0	1-3	18-21	34-37	-	balance
Cr20Ni30	0.08	0.02	0.015	1.0	1-3	18-21	30-34	-	balance

Shanghai Tankii ALloy Material Co.,Ltd. focus on the production of nichrome alloy, thermocouple wire,fecral alloy,precision alloy,copper nickel alloy,thermal spray alloy etc. in the form of wire,sheet,tape,strip,rod and plate.

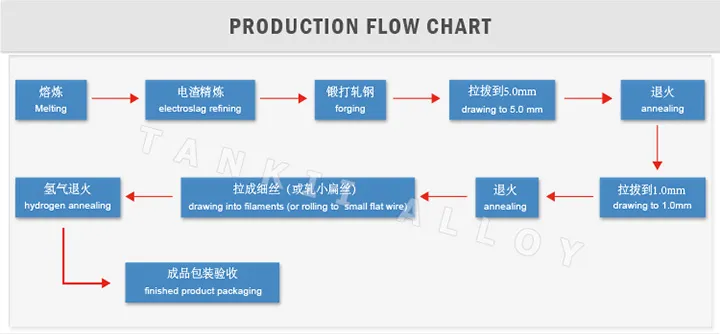

We've already got ISO 9001 quality system certificate and approval of ISO 14001 environmental protection system.We own a complete set of advanced production flow of refining,cold reduction,drawing and heat treating etc. We also proudly have independent R&D capacity.
