Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: 0Cr25Al5, FeCrAl 25/5
Payment & Shipping Terms
Minimum Order Quantity: 100 KG
Price: negotiable
Packaging Details: Spool + Carton + Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Tons per month
Model NO.: |
FECRAL 25/5 Stranded Wire |
Density: |
7.25 G/cm3 |
Electrical Resistivity: |
1.42 Ohm Mm2/m |
Origin: |
Shanghai |
Trademark: |
TANKII |
HS Code: |
722300 |
Specification: |
19*0.544-0.574 |
Max Working Temperature: |
1300 C |
Model NO.: |
FECRAL 25/5 Stranded Wire |
Density: |
7.25 G/cm3 |
Electrical Resistivity: |
1.42 Ohm Mm2/m |
Origin: |
Shanghai |
Trademark: |
TANKII |
HS Code: |
722300 |
Specification: |
19*0.544-0.574 |
Max Working Temperature: |
1300 C |

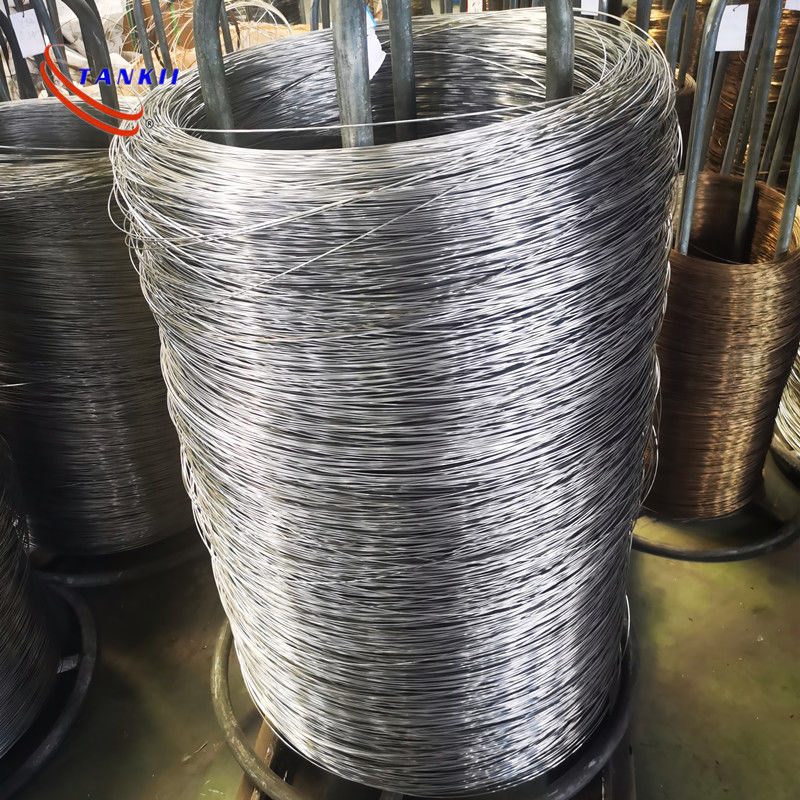

Fecral 25/5 0cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al6nb 19 Strands FECRAL Wire Electric Resistance Stranded Wire
Resistance Wire made of Nickel Chrome Alloys, Nickel Chrome Iron Alloys, Iron Chrome Aluminium Alloys, Copper Nickel Alloys.
Mainly used in heater, heating element and resistor, etc.
NiCr 80/20, NiCr 70/30, NiCr 60/15, NiCr 35/20
FeCrAl15-5, FeCrAl20-5,FeCrAl 25-5, etc...
Constantan, Alloy 30, Alloy 60, Alloy 90, etc.
Electric Resistivity from 0.02 u ohm/m-1.53 u ohm/m
Operate Temperature from 200 C to 1400 C
Pls be free to contact us if there is any question.
NiCr:
RESISTOHM 20, RESISTOHM 30, RESISTOHM 40, RESISTOHM 60, RESISTOHM 70, RESISTOHM 80
FeCrAl:
RESISTOHM 125, RESISTOHM 135, RESISTOHM 140,
RESISTOHM 145, RESISTOHM 153
4.Standard Specification:
Grades |
1Cr13AL4 |
1Cr21AL4 |
0Cr21AL6 |
0Cr23AL5 |
0Cr25AL5 |
0Cr21AL6Nb |
0Cr27AL7Mo2 |
Main chemical composition% |
|||||||
Cr |
12.0-15.0 |
17.0-21.0 |
19.0-22.0 |
20.0-23.5 |
23.0-26.0 |
21.0-23.0 |
26.5-27.8 |
AI |
4.0-6.0 |
2.0-4.0 |
5.0-7.0 |
4.2-5.3 |
4.5-6.5 |
5.0-7.0 |
6.0-7.0 |
Fe |
balance |
balance |
balance |
balance |
balance |
balance |
balance |
Re |
appropriate |
appropriate |
appropriate |
appropriate |
appropriate |
appropriate |
appropriate |
Components maximum use temperature |
950 |
1100 |
1250 |
1250 |
1250 |
1350 |
1400 |
Melting point |
1450 |
1500 |
1500 |
1500 |
1500 |
1510 |
1520 |
Density g/cm3 |
7.4 |
7.35 |
7.16 |
7.25 |
7.1 |
7.1 |
7.1 |
Resistivity μΩ·m,20 |
1.25±0.08 |
1.23±0.06 |
1.42±0.07 |
1.35±0.06 |
1.42±0.07 |
1.45±0.07 |
1.53±0.07 |
Tensile strength Mpa |
588-735 |
637-784 |
637-784 |
637-784 |
637-784 |
637-784 |
686-784 |
| Propertes/Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition(%) |
Ni | Bal. | Bal. | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Bal. | Bal. | Bal. | |
| Max Working Temperature(ºC) |
1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μ Ω · m) |
1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density(g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
|
Thermal Conductivity (KJ/m· h· ºC) |
60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α × 10-6/ºC) |
18 | 17 | 17 | 19 | 19 | |
| Melting Point(ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
| CuNi Alloys Grade | Electrical resistivity (20degreeΩ mm² /m) |
temperature coefficient of resistance (10^6/degree) |
Density g/mm² |
Max. temperature (degree) |
Melting point (degree) |
| CuNi1 | 0.03 | < 1000 | 8.9 | 200 | 1085 |
| CuNi2 | 0.05 | < 1200 | 8.9 | 200 | 1090 |
| CuNi6 | 0.10 | < 600 | 8.9 | 220 | 1095 |
| CuNi8 | 0.12 | < 570 | 8.9 | 250 | 1097 |
| CuNi10 | 0.15 | < 500 | 8.9 | 250 | 1100 |
| CuNi14 | 0.20 | < 380 | 8.9 | 300 | 1115 |
| CuNi19 | 0.25 | < 250 | 8.9 | 300 | 1135 |
| CuNi22 | 0.30 | < 160 | 8.9 | 300 | 1150 |
| CuNi30 | 0.35 | < 100 | 8.9 | 350 | 1170 |
| CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
| CuNi40 | 0.48 | ± 40 | 8.9 | 400 | 1280 |
| CuNi44 | 0.50 | < -6 | 8.9 | 400 | 1280 |
| Standard Strand Construction, mm | Resistance,Ω/m |
| FeCrAl 25/5 | 19×0.544 |
| FeCrAl 25/5 | 19×0.61 |
| FeCrAl 25/5 | 19×0.523 |
| FeCrAl 25/5 | 19×0.574 |
| FeCrAl 25/5 | 37×0.385 |
| FeCrAl 25/5 | 19×0.508 |
| FeCrAl 25/5 | 19×0.523 |
