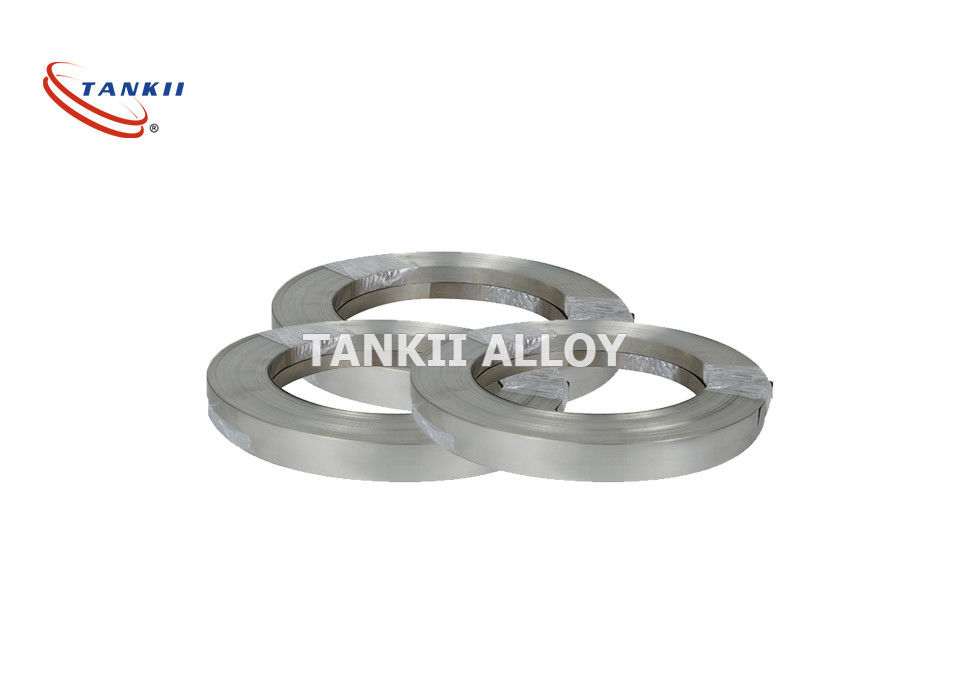

Furnace Heater 0cr25al5 0cr13al4 Strip Heating Element Thickness: 1.5-3.0mm Width: 10-25mm

Name: Furnace Heater 0cr25al5 0cr13al4 Strip Heating Element Thickness: 1.5-3.0mm Width: 10-25mm
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0cr25al5
Price: 26.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: 0cr25al5

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotatioin

Packaging Details: Spool,coil,cartoon

Delivery Time: 5-30 days

Payment Terms: T/T, Western Union

Supply Ability: 20000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    0cr13al4 Strip Heating Element, Furnace Heater Strip Heating Element, 0cr25al5 Strip Heating Element


Product Name:	Spark Plug Wire	Shape:	Wire
Material:	FeCrAl	Application:	Spark Plug Wire
Size:	Customer's Requirement	Type:	Bare

Product Name:	Spark Plug Wire
Shape:	Wire
Material:	FeCrAl
Application:	Spark Plug Wire
Size:	Customer's Requirement
Type:	Bare

Description

Furnace Heater 0cr25al5 0cr13al4 Strip Heating Element Thickness: 1.5-3.0mm Width: 10-25mm

Furnace Heater 0cr25al5 0cr13al4 Strip Heating Element Thickness: 1.5-3.0mm Width: 10-25mm

0cr25al5 s a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1350°C.

Grade		1Cr13Al4	TK1	0Cr25Al5	0Cr20Al6Re	0Cr23Al5	0Cr19Al3	0Cr21Al6Nb	0Cr27Al7Mo2
Nominal composition %	Cr	12.0-15.0	22.0-26.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	5.0-7.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	0.04-1.0	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Bal.		Bal.	Bal.	Bal.	Bal.	Bal.	Bal.
								Nb0.5	Mo1.8-2.2
Resistivity 20ºC		1.25	1.48	1.42	1.40	1.35	1.23	1.45	1.53
Density(g/cm³)		7.4	7.1	7.1	7.16	7.25	7.35	7.1	7.1
Max continuous operating temperature(ºC)		650	1400	1250	1250	1250	1100	1350	1400

Furnace Heater 0cr25al5 0cr13al4 Strip Heating Element Thickness: 1.5-3.0mm Width: 10-25mm 0
