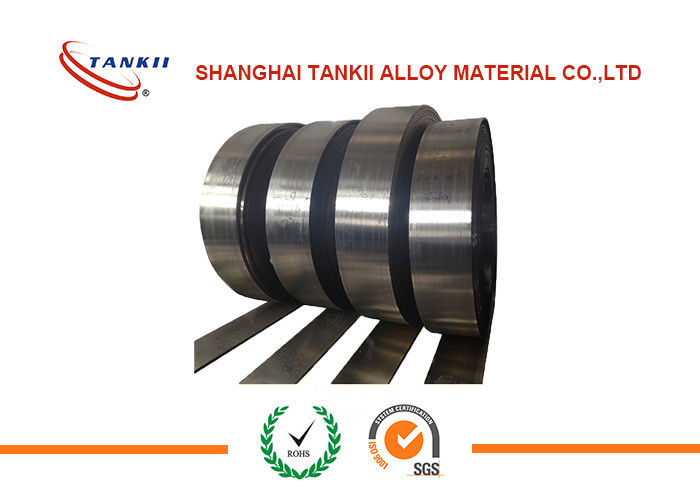

Heating Element Alloy 815 Strip High Temperature Wire For Furnace Heater

Heating Element Alloy 815 Strip High Temperature Wire For Furnace Heater
Heating Element Alloy 815 Strip High Temperature Wire For Furnace Heater

Large Image :  Heating Element Alloy 815 Strip High Temperature Wire For Furnace Heater

Product Details:
Place of Origin: China
Brand Name: TANKII
Certification: ISO9001
Model Number: Alloy 815
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: On Spool,In Coil
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month

Heating Element Alloy 815 Strip High Temperature Wire For Furnace Heater

Description
Application: Heating, Electric Oven, Toaster And Furnace Conductor Material:: Kanthal Resistant Wire
Shape: Ribbon And Strip Resistivity:: 1.35
Working Temperature:: 1350 Degree C Maximum Conductor Type: Soild
High Light:

electrical heating wire

,

high temperature wire

FeCrAl Alloy Resistance Heating Strip, Resistohm 135 For Heating Element For Heater In Water Or  Furnace



0Cr23Al5

General Information

FeCrAl, a family of iron-chromium-aluminum alloys (Kanthal APM, A-1, D and AF etc.) used in a wide range of resistance and high-temperature applications is also used in the form of resistance wires.



Resistohm 135



OCr23AL5 also known as Alchrome D,alloy 815,Resistohm 135, Stablohm 812,  Alohrome DK, Alferon 901, Alloy k, Aluchrom Y, Gilphy 135



 1.Chemical composition





Ni

Cr

Fe

Cu

Others

%

-

20

Bal.

-

Al: 4.5, ++





Physical properties



- Resistivity (Ωmm²/m)                                                  : 1.35

- Temperature coefficient (K x 10- 6/°C)                    : 70

   from 20 to 1000 °C

- Thermal conductivity at 120 °C (Wm- 1° C-1)         : 16.50

- Coefficient of linear expansion (coeff. 10-6/°C)      : 14

   from 20 to 1000 °C

- Density (g/cm3)                                                             : 7.25

- Creeping point in

                                        - at 800 °C                                  : 6

                                        - at 1 000°C                                : 1



- Melting point (°C)                                                           : 1 500

- Maximal operating temperature (°C)                          : 1 200



Standard mechanical properties


- Tensile Strength (daN/mm²)                                        : 75

- Yield Strength (daN/mm²)                                             : 55

- Elongation (A% on 100 mm)                                       : ≥18

- Hardness (HV)                                                               : 230





3. Size



Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm




4. Typical Applications



Resistohm 135 is a ferritic alloy of the FeCrAl family, which can be used as heating element of resistance up to 1200°C.



Resistohm 135 must be used in a dry environment in order to avoid rust because this is not a stainless alloy.

Elements realised in Resistohm 135 have an excellent life time in a sulphurous environment, and particularly when atmosphere is also oxidizing.


Resistohm 135 is normally used in top cookers with ceramics, pottery furnaces elements, and tubular elements.
Because of its resistance to carbonaceous atmospheres, Resistohm 135 is chosen for the production of cigarette lighters and fuel burners elements.



5. Packaging & Delivery

Packaging Details: plastic film inside , wooden pallets outside , choose the suitable packing, it can be customized by the clients' demand.
Delivery Detail: about 5-25 days


WHY CHOOSE  US?



All our raw material is made from prime material, not recycle material. We have more than 10 years experience in manufacturing resistance heating alloys.



In the market, not all the NiCr alloys are with standard chemical composition and stable resistance. Professional

 and reliable is the soul of our business.



1) We achieve consistent production from smelting to complete products, we are able to supply satisfactory

products.



2) We have has the world's advanced level of German ALD - VIDP1000 - 8000KG vacuum induction furnace and

wire drawing machines from Japan.



3) With our skilled spooling knowhows, we have successfully magnified the take - up weight on spool. For

example, even a superfine wire of 0.04 mm in diameter can be wound and shipped on a 3 - 4 kg bobbin, thus

 immediately contributing to your productive efficiency.





4) In order to prevent a wire from loosening, we have introduced a developed tension controlled systems into our

ake - up machine and respooling machine.



We think you can anticipate smooth despooling.
