Nickel Chrome Alloy Ni80cr20 Ni70cr30 Ni60cr15 Ni35cr20 Heating Elements Resistance Nichrome Strip

Name: Nickel Chrome Alloy Ni80cr20 Ni70cr30 Ni60cr15 Ni35cr20 Heating Elements Resistance Nichrome Strip
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80cr20
Price: 27.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai China

Brand Name: TANKII

Certification: SGS

Model Number: Ni80cr20

Payment & Shipping Terms

Minimum Order Quantity: 20Kg

Price: USD 20-35 KG

Packaging Details: Wooden case

Delivery Time: 7-12 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Ni70cr30 Nichrome Strip, Ni80cr20 Nichrome Strip, Ni60cr15 Nichrome Strip


Sample:	Small Order Accepted	Color:	Silver Gray
Temper:	Soft,1/4hard,1/2hard,hard,T-hard	HS Code:	7506200000
Packing:	Waterproof Paper, Weave Bag, Wooden Case	Size:	140x0.5mm

Sample:	Small Order Accepted
Color:	Silver Gray
Temper:	Soft,1/4hard,1/2hard,hard,T-hard
HS Code:	7506200000
Packing:	Waterproof Paper, Weave Bag, Wooden Case
Size:	140x0.5mm

Description

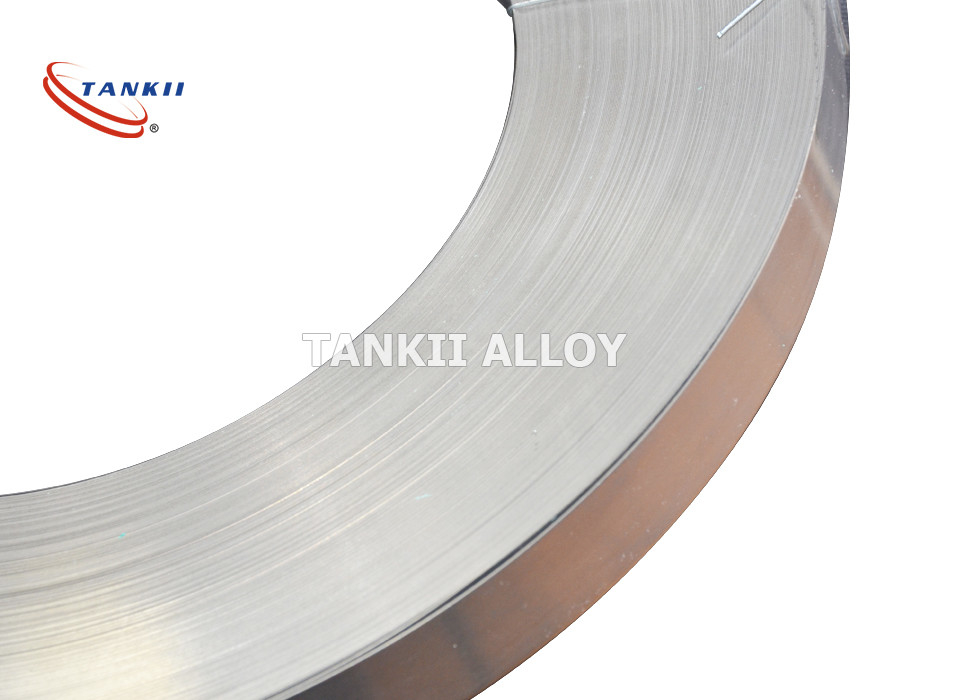

Nickel Chrome Alloy Ni80cr20 Ni70cr30 Ni60cr15 Ni35cr20 Heating Elements Resistance Nichrome Strip

Nickel Chrome Alloy Ni80cr20 Ni70cr30 Ni60cr15 Ni35cr20 Heating Elements Spiral Wire Resistance Nichrome Strip

Cr20Ni80 has excellent comprehensive properties. High-quality heating elements will choose Cr20Ni80. Cr20Ni80 has the advantages of good oxygen resistance, high strength, non-magnetic, high emissivity, good corrosion resistance, no softening, no deformation, and low permanent elongation.
Nickel-chromium, nickel, ferrochrome alloy wire with electric high temperature oxidation resistance, high strength, not soften and a series of advantages. When used in a long time, the same type and the permanent elongation is very small, which is more Cr10Ni90 alloy with excellent comprehensive properties, is to produce high-quality varieties of choice for electric components.

Typical Mechanical properties(1.0mm)

Elongation: 30%
Yield Strength: 420Mpa
Tensile Strength: 810Mpa

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0~61.0	34.0~37.0	30.0~34.0
	Cr	10	20.0~23.0	28.0~31.0	15.0~18.0	18.0~21.0	18.0~21.0
	Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperatureºC		1300	1200	1250	1150	1100	1100
Meltiing point ºC		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity at 20ºC((μΩ·m)			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat J/g.ºC			0.44	0.461	0.494	0.5	0.5
Thermal conductivity KJ/m.hºC			60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion a×10-6/ (20~1000ºC)			18	17	17	19	19
Micrographic structure			Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties			Non-magnetic	Non-magnetic	Non-magnetic	Weak magnetic	Weak magnetic

Main advantage and application
It widely used in surtur and sulfide environment and producing industrial electric
furnace, household electrical appliance and far infrared ray device.

Nickel Chrome Alloy Ni80cr20 Ni70cr30 Ni60cr15 Ni35cr20 Heating Elements Resistance Nichrome Strip 0
