TANKII N02200 Nickel Strip 99.6% Pure Nickel Tab Strip For Battery

Name: TANKII N02200 Nickel Strip 99.6% Pure Nickel Tab Strip For Battery
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: ni200
Price: 20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: ni200

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: USD+20USD/KG

Packaging Details: Cardboard box

Delivery Time: 10days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100TON/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    Battery Pure Nickel Tab Strip, TANKII Pure Nickel Tab Strip, 99.6% Pure Nickel Tab Strip


Description

TANKII N02200 Nickel Strip 99.6% Pure Nickel Tab Strip For Battery

Product Description

UNS N02200 nickel strip 99.6% Pure Nickel Tab Strip for Battery

Nickel 200 (UNS N02200 / W. Nr. 2.4060 & 2.4066 / N6) is commercially pure (99.6%) wrought nickel.

It has good mechanical properties and excellent resistance to many corrosive environments.
Other useful features of the alloy are its magnetic and magnetostrictive properties, high thermal and electrical conductivities, low gas content and low vapor pressure. Chemical composition is shown in Table as below.
The corrosion resistance of Nickel 200 makes it particularly useful for maintaining product purity in the handling of foods, synthetic fibers, and caustic alkalis; and also in structural applications where resistance to corrosion is a prime consideration.
Other applications include chemical shipping drums, electrical and electronic parts, aerospace and missile components.

Tankii Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials.
The Pure Nickel strip can be operated up to 600F.
It has outstanding magnetic properties and thermal and electrical conductivity.
Tankii Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery.
It is also used as the pin of PTC devices and Electric vacuum components.

UNS N02200 Metal Stamping Part Pure Nickel Tab Strip for Battery

The stock size of N6 strip is 0.3*25mm, low price with prime quality.
Please check the stock size picture as below:

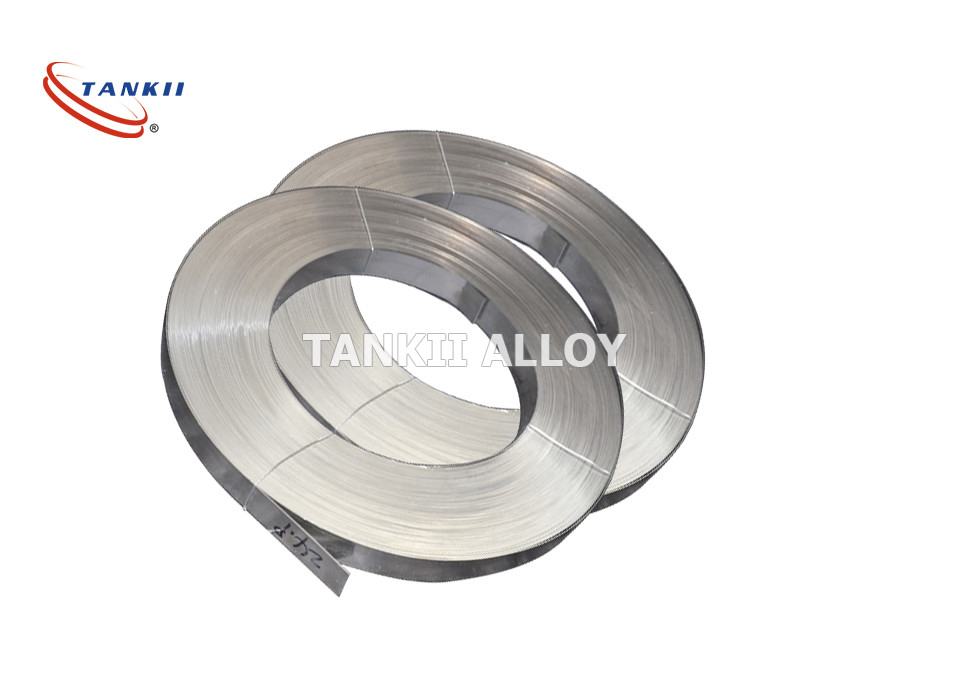

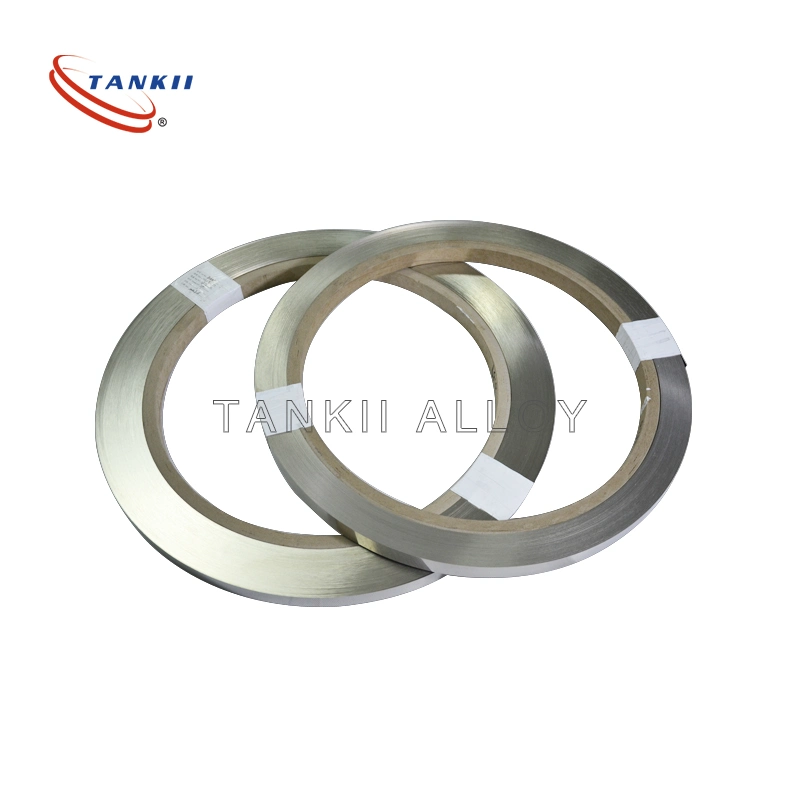

TANKII N02200 Nickel Strip 99.6% Pure Nickel Tab Strip For Battery 0

TANKII N02200 Nickel Strip 99.6% Pure Nickel Tab Strip For Battery 0

Chemical Composition of Pure Nickel Strip:

Nickel	99.6%
Copper	0.25%
Iron	0.40%
Manganese	0.35%
Carbon	0.15%
Silicon	0.35%
Sulfur	0.01%

Mechanical Properties

Density, g/cm3	8.89
Melting Range, °C	1435-1446
Specific Heat, J/kg?°C	456
Curie Temperature, °C	360

TANKII N02200 Nickel Strip 99.6% Pure Nickel Tab Strip For Battery 1

TANKII N02200 Nickel Strip 99.6% Pure Nickel Tab Strip For Battery 2
