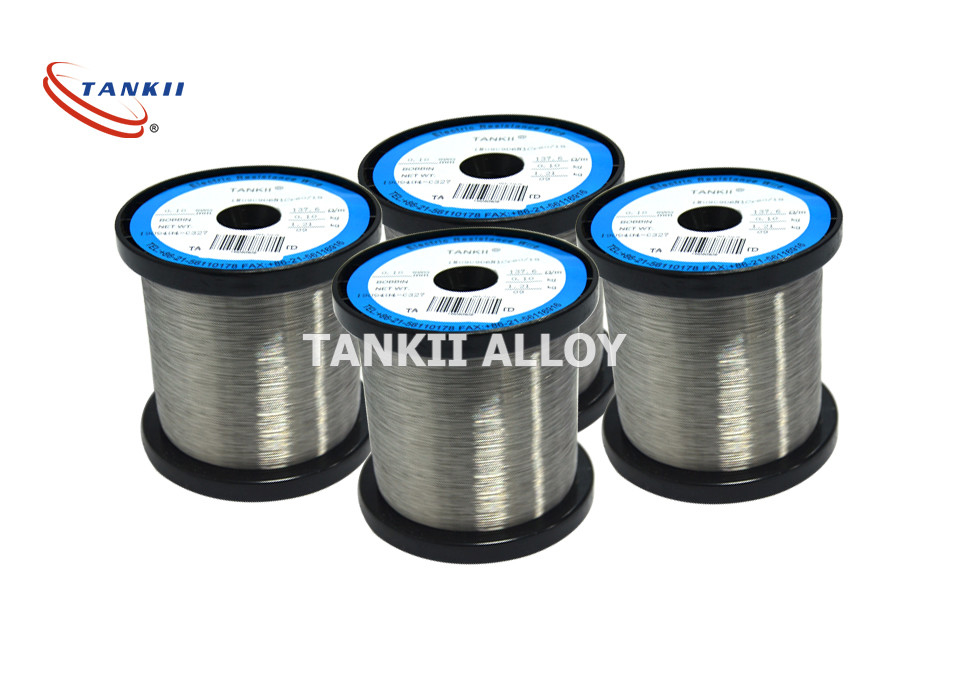

Tankii 0Cr23Al5 Resistance Alloy Wire 0.5mm With DIN125 Spool

Name: Tankii 0Cr23Al5 Resistance Alloy Wire 0.5mm With DIN125 Spool
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0Cr23Al5
Price: 4 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: 0Cr23Al5

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: USD+4USD/KG

Packaging Details: Cardboard box

Delivery Time: 10days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10TON/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    0.5mm resistance alloy wire, DIN125 resistance alloy wire, 0Cr23Al5 resistance alloy wire


Description

Tankii 0Cr23Al5 Resistance Alloy Wire 0.5mm With DIN125 Spool

Product Description

0Cr23Al5 resistance alloy wire 0.5mm with DIN125 spool stock price used for resistor

Tankii supplies in the form of wire, foil, rod, bar, strip, sheet of 0Cr23Al5

0Cr23Al5 is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 1300°C (2370°F). The alloy is characterized by high resistivity and good oxidation resistance.

Main specifications and uses:
Conventional Product specifications: 0.07 ~ 10 mm

Uses: Mainly used in home appliances and industrial furnaces
User Manual
1. Rated Voltage: 220V/380V
2. The installation process to avoid knocking, to avoid the damp, hand-held stove wire, they should wear gloves. Wire should be installed after the furnace has remained flat, and prevent surface scratches, dirt, corrosion, or improper installation, by affecting the life of
3. In the rated voltage to use. In strong reducing atmosphere, acid atmosphere, an atmosphere of high humidity will affect the use of life;
4. Temperature before use should be in dry non-corrosive atmosphere, about 1000ºC spend a few hours, so that furnace wire protective film formed on the surface after normal use, so that can guarantee the normal life of furnace wire;
5. Furnace installation should ensure that the insulated wire good power to avoid touching furnace after the wire, guard against electric shock or burns.

If there is any question, pls be free to tell us.

Properties Grade	0Cr23Al5
	Cr	Al	Re	Fe
	22.5~24.5	4.2~5	Suitable	Balance
Max Continuous Service Temperature(º C)	1250
					Resisivity 20º C (Ω mm2/m)	1.35
Density(g/cm 3 )	7.25
Approximate Melting Point( º C)	1500
Elongation (%)	12
Repeatedly Bend Frequency(F/R) 20º C	>5
Hardness HB	200~260
Micrographic Structure	Ferrite

Tankii 0Cr23Al5 Resistance Alloy Wire 0.5mm With DIN125 Spool 0
