Nichrome Tube Ni80Cr20 Tube For Heating Elements

Name: Nichrome Tube Ni80Cr20 Tube For Heating Elements
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: USD+20USD/KG

Packaging Details: Cardboard box

Delivery Time: 10days

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 10TON/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    Ni80Cr20 Nichrome tube, Heating Elements Nichrome tube


Description

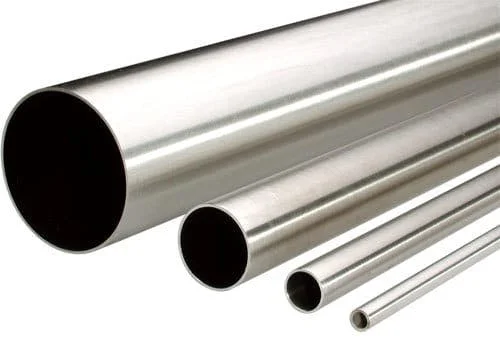

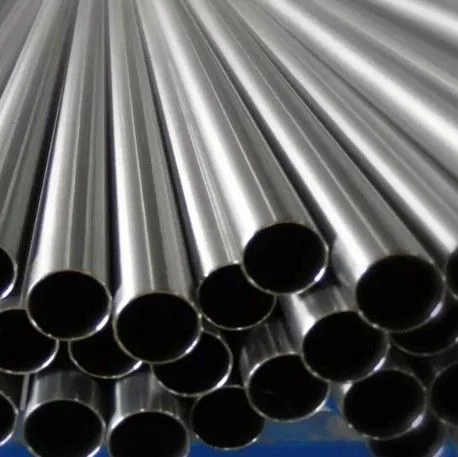

Nichrome Tube Ni80Cr20 Tube For Heating Elements

Nichrome tube Ni80Cr20 tube for heating elements

A Nichrome tube is a type of heating element made from a nickel-chromium alloy called nichrome.
Nichrome is a non-magnetic alloy that has high resistance to electric current and is able to withstand high temperatures.
These properties make it an ideal material for use in heating applications.

Chemical Composition: 80% nickel, 20% chrome
Resisvity: 1.09 ohm mm2/m,
Hardness: Soft, hard or semi-hard
Characteristics: Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.

We professionally produce nickel-base alloy tape, include Ni80Cr20, Ni60Cr23, Ni60Cr16, Ni35Cr20, Ni20Cr25, NiMn, Ni200, Karma, Evanohm, NCHW, etc.

Shanghai Tankii Alloy Material Co., Ltd. supply the main grades as below:

Properties/Grade		Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Main Chemical composition	Ni	Rest	Rest	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Rest	Rest	Rest
Max. continuous service temp. of element		1200	1250	1150	1100	1100
Resistivity at 20oC (μ Ω · m)		1.09	1.18	1.12	1.04	1.04
Density (g/cm3)		8.40	8.10	8.20	7.90	7.90
Thermal conductivity(KJ/m· h· oC)		60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion(α × 10-6/oC)		18.0	17.0	17.0	19.0	19.0
Melting point (approx. )( oC)		1400	1380	1390	1390	1390
Elongation at rupture (%)		> 20	> 20	> 20	> 20	> 20
Micrographic structure		austenite	austenite	austenite	austenite	austenite
Magnetic properties		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

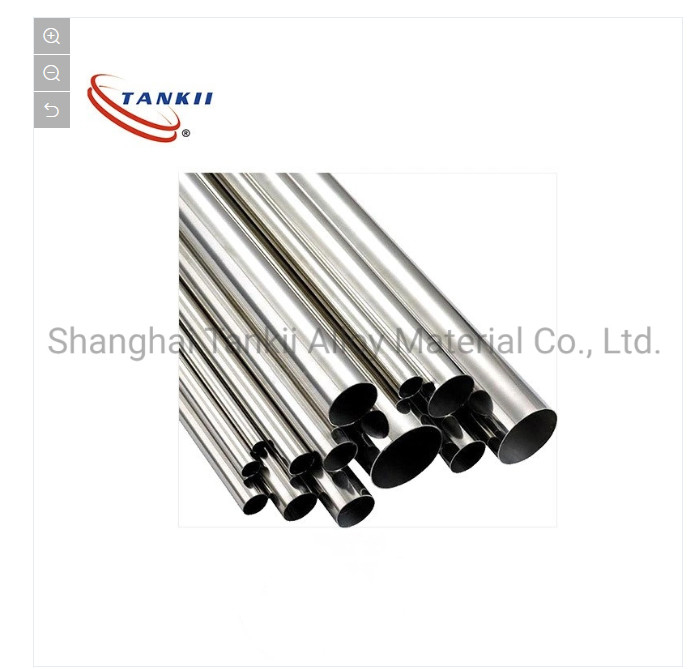

More picture: Nichrome Tube Ni80Cr20 Tube For Heating Elements 0
