0~1250 Degrees Thermocouple Bare Wire
, Aerospace Thermocouple Bare Wire
, Chromel Alumel Thermocouple Bare Wire

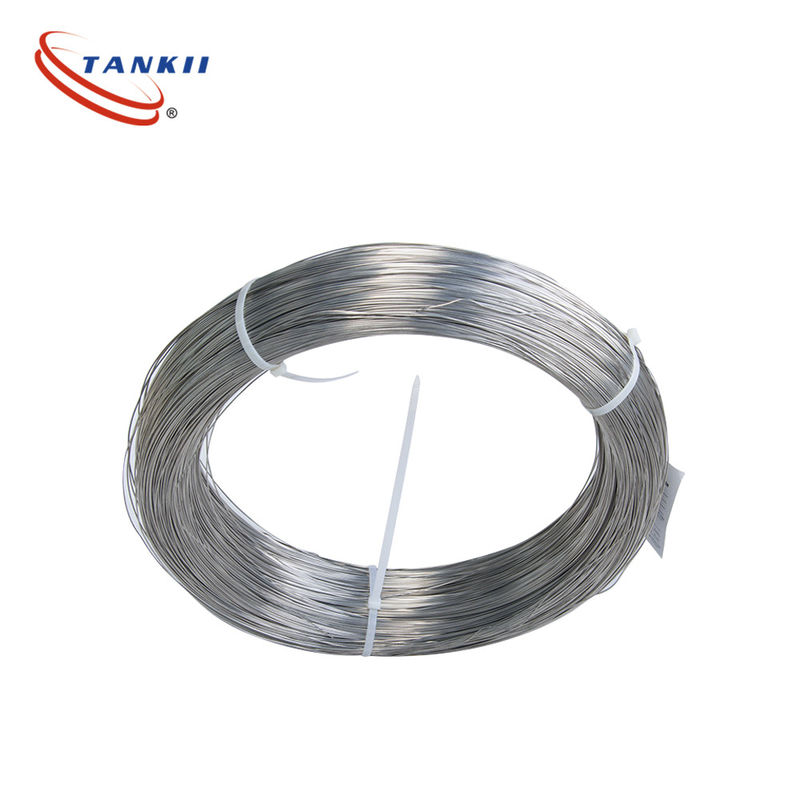

0~1250 Degrees Type K Thermocouple Wire Chromel Alumel Bare Wire 0.05~12mm For Aerospace
0~1250 Degrees Type K Thermocouple Wire Chromel Alumel Bare Wire 0.05~12mm For Aerospace
Quick Details
What is Thermocouple Wire?
The two wires that make up the thermocouple pair are made from a range of different alloys and metals and have been standardised by both international and national bodies.
K Type Thermocouples
Thermocouples are temperature sensors that work based on the principle of the Seebeck effect, discovered by Thomas Johann Seebeck in 1821. The Seebeck effect states that when two different metals are joined at two junctions, and there is a temperature difference between the junctions, an electromotive force (EMF) or voltage is generated across the metal junctions.
Type K
thermocouple is one of the most popular types of thermocouple.
K
thermocouple consists of a positive Nickel/Chromium alloy leg and a negative Nickel/Aluminium leg.
K
thermocouple can be used across a wide temperature range (from -200°C to 1250°C), making it suitable for many applications in a variety of industries.
K
thermocouple is a much more affordable option than the Platinum based Type R and Type S thermocouples which can be used at higher temperatures.
K type thermocouple wire is commonly used for temperature measurement in high-temperature environments, such as furnace temperature, heat treatment, and melting processes.
Types of Thermocouples
What differentiates one thermocouple from another is the metals in its two wires: the positive leg and the negative leg. Because each thermocouple type has a different pairing, they differ in temperature limits, process conditions (inert, oxidizing, reducing atmospheres, heavy vibration), and so on.
Thermocouple Types and Temperature Range
|
Conductor Name
|
Thermocouple
Type
|
Grade |
Temperature range
℃
|
Allowable Tolerance /℃ |
| PtRh30-PtRh6 |
B |
Ⅱ |
600~1700 |
±0.25% t |
| Ⅲ |
600~800 |
±4 |
| 800~1700 |
±0.5%t |
| PtRh13-Pt |
R |
Ⅰ |
0~1100 |
±1 |
| 1100~1600 |
±[1+(t－1100) ×0.3％] |
| Ⅱ |
0~600 |
±1.5 |
| 600~1600 |
±0.25% t |
| PtRh10-Pt |
S |
Ⅰ
|
0~1100 |
±1 |
| 1100~1600 |
±[1+(t－1100) ×0.3％] |
|
Ⅱ
|
0~600 |
±1.5 |
| 600~1600 |
±0.25% t |
| NiCr-Ni |
K |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| NiCrSi-NiSi |
N |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| NiCr-CuNi (Constantan) |
E |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| Fe-CuNi (Constantan) |
J |
Ⅰ |
-40~750 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~750 |
±2.5℃ or ±0.75%t |
| Cu-CuNi (Constantan) |
T |
Ⅰ |
-40~350 |
±0.5℃ or ±0.4%t |
| Ⅱ |
-40~350 |
±1.0℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±1.0℃ or ±1.5%t |
Application of thermocouple wire:
1. Industrial Process Optimization
2. HVAC Systems Management (Heating, Ventilation, and Air Conditioning (HVAC))
3. Precision in Food Processing
4. Medical Equipment and Devices
5. Automotive Performance Optimization
6. Aerospace Exploration and Innovation
7. Power Generation and Distribution
8. Laboratory Research and Development
9. Energy Management and Conservation
10. Safety and Security Enhancement.
The Delivery and Packing:
1. Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package.
2. Delivery Detail: 7 days, as the order quantity.
More pictures of thermocouple wire:
Application for thermocouple sensor:
Application for extension cable:
With Insulation
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple connector, and other thermocouple products.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Welcome to call me or email to me for more info on thermocouple wire.
