Bright 0Cr23Al5 Resistance Wire / Alloy815 FeCrAl Alloy Wire , High Temperature Wire

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr23Al5

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiation

Packaging Details: On Spool,In Coil

Delivery Time: 5-10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Description
Bright 0Cr23Al5 Resistance Wire / Alloy815 FeCrAl Alloy Wire , High Temperature Wire

Bright 0Cr23Al5 Resistance Wire / Alloy815 FeCrAl Alloy Wire , High Temperature Wire

0Cr23Al5



Forms:wire, bar, strip,sheet/plate,forging,tube/pipe,etc.



Manufacture Processs The manufacture started with producing ingot by advanced vacuum melting process. The wire production includes forging, rolling, annealing and drawing. From the ingot to the final thin wire, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, hardness, etc.





0Cr23Al5

Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.06

0.025

0.020

0.50

≤0.6

20.5-23.5

≤0.60

4.2-5.3

Balance

-





Mechanical Properties

Max Continuous Service Temperature:

Resisivity 20℃:

Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1300℃

1.35+/-0.06ohm mm2/m

7.25g/cm3

60.2 KJ/m·h·℃

15.0×10-6/℃ (20℃~1000℃)

1500℃

Min 12%

Ferrite

magnetic





Temperature Factor of Electrical Resistivity

20℃

100℃

200℃

300℃

400℃

500℃

600℃

1.000

1.002

1.007

1.014

1.024

1.036

1.056



700℃

800℃

900℃

1000℃

1100℃

1200℃

1300℃

1.064

1.070

1.074

1.078

1.081

1.084

1.084









FeCrAl OCr23AL5 is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 1300°C (2370°F). The alloy is characterized by high resistivity and good oxidation resistance.



FeCrAl 0Cr23Al5 alloys have higher service temperature than NiCr Alloys and much lower prices. But they have lower stability and flexibility, easily to be fragile after a time circle.



OCr23AL5 also known as Alchrome D,alloy 815, Kanthal D, Resistohm 135, Stablohm 812,  Alohrome DK, Alferon 901, Alloy k, Aluchrom Y, Gilphy 135





Product size
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm

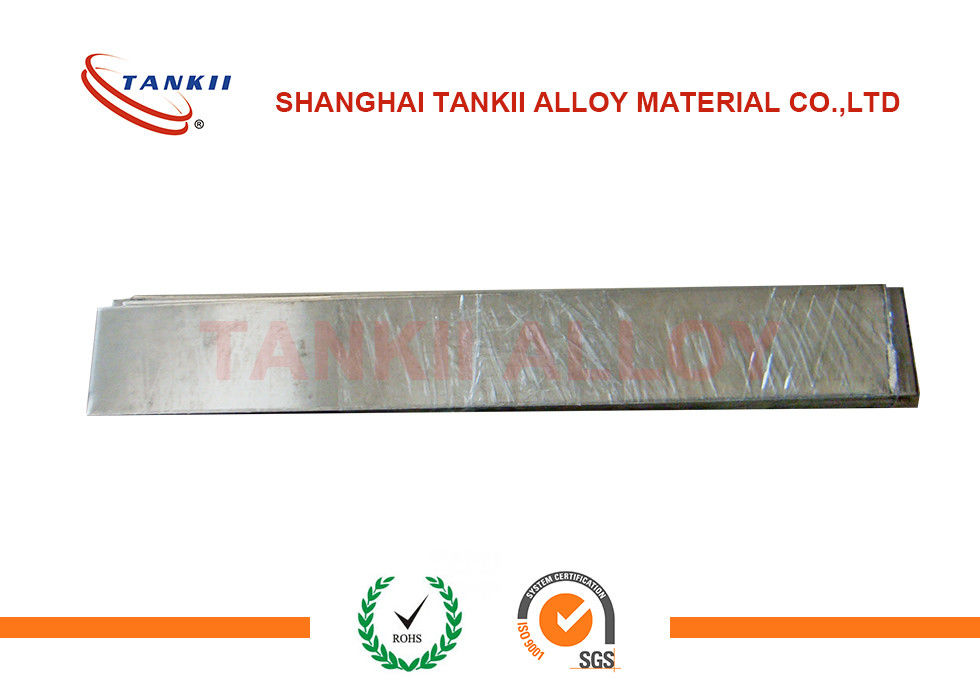

Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
