Battery Busbar 8mm Wide Nickel Strip 0.1 0.127 0.15 0.2mm Mould Spot Welding Material

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: 0.1mm, 0.127mm,0.15mm , 0.2mm

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

8mm Wide Battery Busbar Nickel Strip

,

Mould Spot Welding Material Nickel Strip

,

0.2mm Battery Welding Strip

Model NO.:
18650 26650 21700 32650 Battery Nickel Strip
Chemical Composition:
Ni200-Ni201
Usage:
Battery Package Welding Nickel Strip
Width:
1.0mm-250.0mm
Surface:
Bright Surface
HS Code:
75125000
Transport Package:
Carton - Wooden Case
Density(g/cm3):
8.90
Model NO.:
18650 26650 21700 32650 Battery Nickel Strip
Chemical Composition:
Ni200-Ni201
Usage:
Battery Package Welding Nickel Strip
Width:
1.0mm-250.0mm
Surface:
Bright Surface
HS Code:
75125000
Transport Package:
Carton - Wooden Case
Density(g/cm3):
8.90
Description
Battery Busbar 8mm Wide Nickel Strip 0.1 0.127 0.15 0.2mm Mould Spot Welding Material
TANKII Nickel Battery Busbar 8mm Wide Nickel Strip 0.1 0.127 0.15 0.2mm Mould Lithium Battery  nickel strip

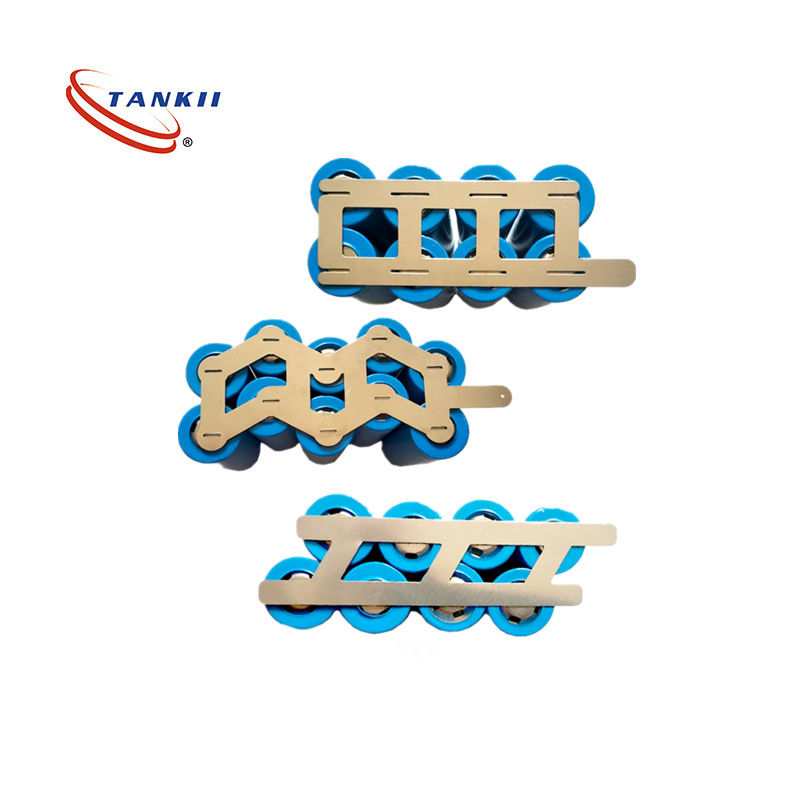

OEM 2P ~ 9P Nickel plated pure nickel strip for 18650 32650 battery spot welding



Nickel strip has good mechanical strength,corrosion-resistant and heat-resistance strength.

Nickel strip is widely used in electric apparatus,chemical machinery,good processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.

Chemical Composition

Grade Element Composition/%
Ni+Co Mn Cu Fe C Si Cr S
Ni201 ≥99.0 ≤0.35 ≤0.25 ≤0.30 ≤0.02 ≤0.3 ≤0.2 ≤0.01
Ni200 ≥99.0 /≤0.35 ≤0.25 ≤0.30 ≤0.15 ≤0.3 ≤0.2 ≤0.01



 Nickel Strip Propertis

Grade Density Melting point Coefficient of expansion Modulus of rigidity Modulus of elasticity Electrical resistivity
Ni200 8.9g/cm3 1446°C 13.3 µm/m °C (20-100°C) 81kN/mm2 204kN/mm2 9.6μW• cm
Ni201 1446°C 13.1µm/m °C(20-100°C) 82kN/mm2 207kN/mm2 8.5μW• cm



Specification of Cold-drawing Nickel Strip Type



Thickness(mm) Tolerance(mm) Width(mm) Tolerance(mm)
0.05-0.10 ±0.010 5.00-10.0 ±0.2
>0.10-0.20 ±0.015 >10.0-20.0 ±0.2
>0.20-0.50 ±0.020 >20.0-30.0 ±0.2
>0.50-1.00 ±0.030 >30.0-50.0 ±0.3
>1.00-1.80 ±0.040 >50.0-90.0 ±0.3
>1.80-2.50 ±0.050 >90.0-120.0 ±0.5
>2.50-3.50 ±0.060 >120.0-250.0 ±0.6

Features:
1. Low resistance, make the battery pack more powerful, save energy.
2. Pure Nickel to make it easy welding, stable connection
3. Dood tensile and easy operate assembly.
4. shaped design, save too much work for customer to assembly battery pack.
5. High Electrical Conductivity
6. Anti-corrosive and low resistance

Dimension:
The thickness and dimensions can be met what customers required.
Type Dimension(mm) Cell
spacing(mm)
Width Dimension of the square hole(mm) Nickel Plated Steel Strip Pure Nickel Type of battery pack
Length for per Kg(m) With holder Without holder
1P 18650 Nickel strip 0.15 x 7 x 18.4 18.4 7 - 128.3 112.6
0.15 x 7 x 19 19 - 127.9 112.1
0.15 x 7 x 19.5 19.5 -
0.15 x 7 x 20.25 20.25 - 127.6 111.9
2P 18650 Nickel strip 0.15 x 26 x 19(13.5 x 13.5) 19 26 12 x 12 47.2 41.4
0.15 x 27 x 19.5(12 x 14.5) 19.5 27 12 x 14.5 48.9 42.9
0.15 x 27 x 19.75(12.5 x 12.5) 19.75 12.5 x 12.5 47 41.2
0.15 x 27 x 20.25(13.5 x 13.5) 20.25 13.5 x 13.5 48.9 42.9
2P 18650 Nickel strip 0.15 x 25.5 x 18.4 (11 x 12.5) 18.4 25.5 11 x 12.5 48.9 42.9
Dislocation 2P 18650 Nickel strip 0.15 x 25.5 x 18.4(8 x 9.5) 18.4 8 x 9.5 41.1 36.1
Dislocation 2P 18650 Nickel strip 0.15 x 25.5 x 19.5(8 x 9.5) 19.5 8 x 9.5 38.6 33.8
3P 18650 Nickel strip 0.15 x 44.5 x 18.4(11 x 12.5) 18.4 44.5 11 x 12.5 27.4 24
0.15 x 4245 x 19(12 x 12) 19 45 12 x 12 29.1 25.5
0.15 x 47.5 x 20.25(12.65 x 12.65) 20.15 47.5 12.65 x 12.65 27.4 24
0.15 x 47.5 x 20.25(13.5 x 13.5) 20.25 13.5 x 13.5 29.4 25.7
4P 18650 Nickel strip 0.15 x 63 x 18.5(11 x 12.5) 18.5 63 11 x 12.5 21.6 18.9
0.15 x 64 x 19 (12 x 12) 19 64 12 x 12 21 18.4
0.15 x 67.95 x 20.15(12.65 x 12.65) 20.15 67.95 12.65 x 12.65 19.6 17.2
0.15 x 67.7 x 20.25(13.5 x 13.5) 20.25 67 13.5 x 13.5 21.3 18.7
5P 18650 Nickel strip 0.15 x 83 x 19(12 x 12) 19 83 12 x 12 16.4 14.4
0.15 x 88.1 x 20.15(12.65 x 12.65) 20.15 88.1 12.65 x 12.65 19.7 17.3
0.15 x 87.9 x 20.25(13.5 x 13.5) 20.25 87.9 13.5 x 13.5 16.7 14.6
6P 18650 Nickel strip 0.15 x 102 x 19 (12 x 12) 19 102 12 x 12 13.5 11.9
0.15 x 108.25 x 20.15 20.15 108.25 12.65 x 12.65 12.6 11
0.15 x 108.1 20.25(13.5 x 13.5) 20.25 108.1 13.5 x 13.5 13.7 12
7P 18650 Nickel strip 0.15 x 121 x 19 (12 x 12) 19 121 12 x 12 11.5 10
0.15 x 128.4 x 20.15(12.65 x 12.65) 20.15 128.4 12.65 x 12.65 10.7 9.4
0.15 x 128.3 x 20.25(13.5 x 13.5) 20.25 128.3 13.5 x 13.5 11.6 10.2
8P 18650 Nickel strip 0.15 x 140 x 19 (12 x 12) 19 140 12 x 12 10 8.7









Battery Busbar 8mm Wide Nickel Strip 0.1 0.127 0.15 0.2mm Mould Spot Welding Material 0
