Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO9001
Model Number: 0Cr21Al6Nb
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: On Spool,In Coil
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month

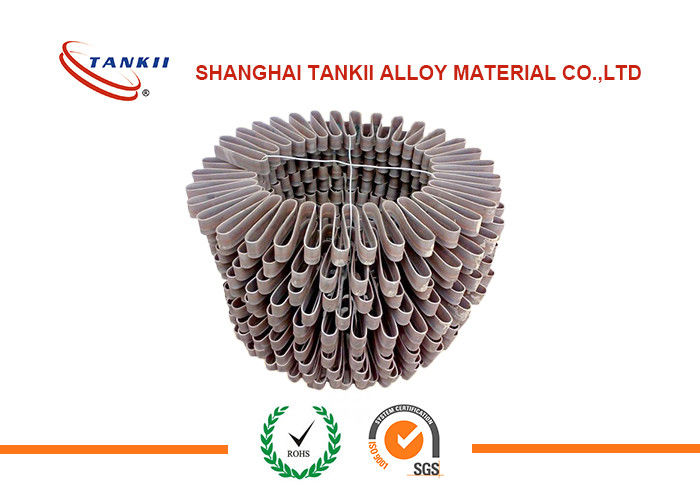

FeCrAl Alloy 0Cr21Al6Nb High Resistance Wire for far Infrared Ray Device
0Cr21Al6Nb
The FeCrAl 0Cr21Al6Nb Electric Heating Wire Mesh with the characteristics of high resistance, low temperature coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, as well as the lower price, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray devic
0Cr21Al6Nb
Chemical Content, %
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
|
Max |
||||||||||
|
0.05 |
0.025 |
0.020 |
0.50 |
≤0.6 |
21.0-23.0 |
≤0.60 |
5.0-7.0 |
Balance |
- |
|
Mechanical Properties
|
Max Continuous Service Temperature: Resisivity 20℃: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1350℃ 1.45+/-0.07ohm mm2/m 7.1g/cm3 46.1 KJ/m·h·℃ 16.0×10-6/℃ (20℃~1000℃) 1510℃ Min 12% Ferrite magnetic |
Temperature Factor of Electrical Resistivity
|
20℃ |
100℃ |
200℃ |
300℃ |
400℃ |
500℃ |
600℃ |
|
1.000 |
0.997 |
0.996 |
0.994 |
0.991 |
0.990 |
0.990 |
|
|
||||||
|
700℃ |
800℃ |
900℃ |
1000℃ |
1100℃ |
1200℃ |
1300℃ |
|
0.990 |
0.990 |
0.990 |
0.990 |
0.990 |
0.990 |
0.990 |
