Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO,ROHS
Model Number: Pure Ni
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Packaging Details: in roll, wooden case outside
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000/Month
Application: |
:Aviation / Ocean Industry |
Ni (Min): |
: 99.5% Min |
Width: |
: Up To 600mm Wide |
Thickness: |
: 0.002 To 2.50 Mm |
Standard: |
: ASTM B162 |
Sample Free: |
:Available |
Application: |
:Aviation / Ocean Industry |
Ni (Min): |
: 99.5% Min |
Width: |
: Up To 600mm Wide |
Thickness: |
: 0.002 To 2.50 Mm |
Standard: |
: ASTM B162 |
Sample Free: |
:Available |

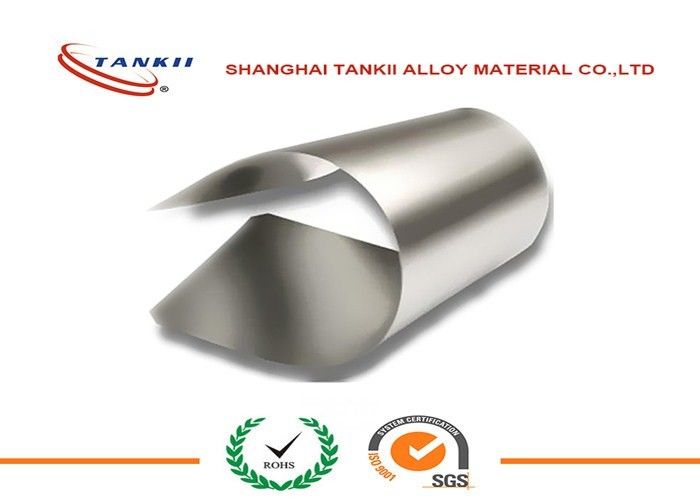

Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry
Product Description
Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F. It has outstanding magnetic properties and thermal and electrical conductivity.
Specification of Pure Nickel Strip:
|
Strip Size |
Thickness – 0.005mm above, Width- 0.2mm above |
Chemical Composition of Pure Nickel Strip:
|
Nickel |
99.6% |
|
Copper |
0.25% |
|
Iron |
0.40% |
|
Manganese |
0.35% |
|
Carbon |
0.15% |
|
Silicon |
0.35% |
|
Sulfur |
0.01% |
Physical properties of Pure Nickel Strip:
|
Density, g/cm3 |
8.89 |
|
Melting Range, °C |
1435-1446 |
|
Specific Heat, J/kg•°C |
456 |
|
Curie Temperature, °C |
360 |
Nickel Strip Product Precision
|
Thickness |
Thickness allowance |
Burr height |
Width scope and tolerance |
|||||
|
2≤w<10 |
10≤w<50 |
50≤w<100 |
100≤w<150 |
150≤w<200 |
200≤w |
|||
|
0.02≤t<0.05 |
±0.003 |
≤0.005 |
± |
±0.10 |
±0.15 |
±0.20 |
±0.30 |
±0.50 |
|
0.05≤t<0.1 |
±0.005 |
≤0.01 |
||||||
|
0.1≤t<0.2 |
±0.008 |
≤0.015 |
||||||
|
0.2≤t<0.3 |
±0.012 |
≤0.02 |
||||||
|
0.3≤t<0.4 |
±0.015 |
≤0.03 |
± |
±0.15 |
±0.25 |
±0.50 |
±0.80 |
±1.00 |
|
0.4≤t<0.6 |
±0.025 |
≤0.05 |
||||||
|
0.6≤t<0.8 |
±0.030 |
≤0.06 |
± |
±0.40 |
±0.50 |
±0.50 |
±0.80 |
±1.00 |
|
0.8≤t<1.0 |
±0.040 |
|||||||
|
1.0≤t<1.2 |
±0.050 |
≤0.08 |
± |
±0.50 |
±0.80 |
±1.00 |
±1.00 |
±1.50 |
|
1.2≤t<1.4 |
±0.060 |
|||||||
|
1.4≤t<1.7 |
±0.070 |
≤0.10 |
||||||
|
1.7≤t<2.0 |
±0.080 |
|||||||
Properties of Pure Nickel Strip:
Applications of Nickel 200 Strip:
