Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO,ROHS
Model Number: N200 N201
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Packaging Details: in roll, wooden case outside
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000/Month
Grade: Pure Nickel: |
:99.6% |
Application: |
: Electronic Industry / Chemical Treatment |
Standard: |
: ASTM B162 |
Sample Free: |
:Available |
Thickness: |
: 0.002 To 2.50 Mm |
Width: |
: Up To 600mm Wide |
Grade: Pure Nickel: |
:99.6% |
Application: |
: Electronic Industry / Chemical Treatment |
Standard: |
: ASTM B162 |
Sample Free: |
:Available |
Thickness: |
: 0.002 To 2.50 Mm |
Width: |
: Up To 600mm Wide |

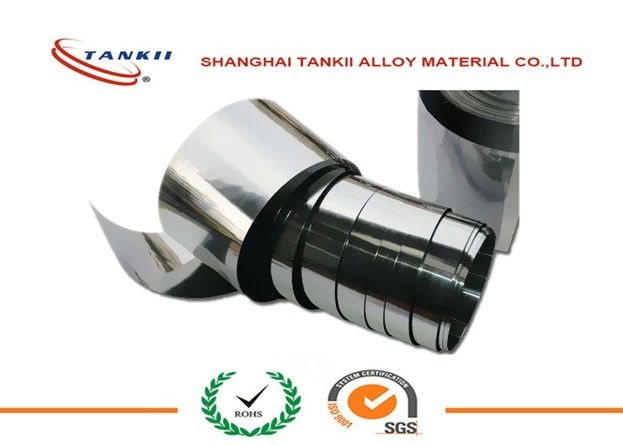

0.01mm N200 N201 Pure Nickel Strip for Electronic Industry / Chemical Treatment
Pure nickel foil
We manufacture Nickel 200 and 201 wire, strip, foil, ribbon, sheets and plates, which conform to the ASTM B162 standard.
It’s commercially pure (99.6% and 99.9%) with good mechanical properties, and is resistant to a range of corrosive media.
Our nickel strip and tags make excellent battery connectors because they have a low electrical resistance.
|
Grade |
Pure Nickel Strip 99.6% / 99.9% |
|
Thickness |
0.02 to 2.50 mm |
|
Tolerances |
+/- 5% (special tolerances is available) |
|
Width |
Up to 350mm wide |
|
Coil size |
Up to 80 kg without welds |
|
Temper Ranges |
Annealed to Full Hard |
|
Grade |
Ni+Co |
Cu |
Si |
Mn |
C |
Mg |
S |
P |
Fe |
|
N4 |
99.9 |
0.015 |
0.03 |
0.002 |
0.01 |
0.01 |
0.001 |
0.001 |
0.04 |
|
N6 |
99.6 |
0.10 |
0.10 |
0.05 |
0.10 |
0.10 |
0.005 |
0.002 |
0.10 |
|
Ni201 |
99.0 |
≤0.25 |
≤0.35 |
≤0.35 |
≤0.02 |
/ |
≤0.01 |
/ |
≤0.40 |
|
Ni200 |
99.0 |
0.20 |
0.30 |
0.30 |
0.15 |
/ |
0.01 |
/ |
0.40 |
Nickel Strip Product Precision
|
Thickness |
Thickness allowance |
Burr height |
Width scope and tolerance |
|||||
|
2≤w<10 |
10≤w<50 |
50≤w<100 |
100≤w<150 |
150≤w<200 |
200≤w |
|||
|
0.02≤t<0.05 |
±0.003 |
≤0.005 |
± |
±0.10 |
±0.15 |
±0.20 |
±0.30 |
±0.50 |
|
0.05≤t<0.1 |
±0.005 |
≤0.01 |
||||||
|
0.1≤t<0.2 |
±0.008 |
≤0.015 |
||||||
|
0.2≤t<0.3 |
±0.012 |
≤0.02 |
||||||
|
0.3≤t<0.4 |
±0.015 |
≤0.03 |
± |
±0.15 |
±0.25 |
±0.50 |
±0.80 |
±1.00 |
|
0.4≤t<0.6 |
±0.025 |
≤0.05 |
||||||
|
0.6≤t<0.8 |
±0.030 |
≤0.06 |
± |
±0.40 |
±0.50 |
±0.50 |
±0.80 |
±1.00 |
|
0.8≤t<1.0 |
±0.040 |
|||||||
|
1.0≤t<1.2 |
±0.050 |
≤0.08 |
± |
±0.50 |
±0.80 |
±1.00 |
±1.00 |
±1.50 |
|
1.2≤t<1.4 |
±0.060 |
|||||||
|
1.4≤t<1.7 |
±0.070 |
≤0.10 |
||||||
|
1.7≤t<2.0 |
±0.080 |
|||||||
Properties of Pure Nickel Strip:
Applications of Nickel 200 Strip:
