High Heat Wire 0Cr25Al5 Electrical Heating Elements in Metallurgical , Chemical

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiation

Packaging Details: On Spool,In Coil

Delivery Time: 5-10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

fecral wire

,

electrical heating wire

Description
High Heat Wire 0Cr25Al5 Electrical Heating Elements in Metallurgical , Chemical

High Heat Wire 0Cr25Al5 Electrical Heating Elements in Metallurgical , Chemical


0Cr25Al5,

1 Introduction for FeCrAl alloy heating wire 0Cr25Al5

Fe-Cr-Al alloy heating wire is mainly composed of ferrum,chromium,aluminium. It is widely used in various in many industries, such as  metallurgical, chemical, glass, ceramic, and electrics for instance.

2 Features


Features of FeCrAl alloy heating wire 0Cr25Al5
1An excellent resistance to oxidation under heat
2A limitation of intergranular oxidation
3High electric resistance and long lifetime
4Good performance of anti-carburizing, the atmosphere and surface of sulfur pollution


3 Application


Applications of  FeCrAl heating alloy wire 0Cr25Al5
1industrial and civil heating-furnace
2infrared equipment
3liquefied gas infrared heat-resisting net
4different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors


4 Size


Size

Wires

0.018-10mm

Ribbons

0.05*0.2-2.0*6.0mm

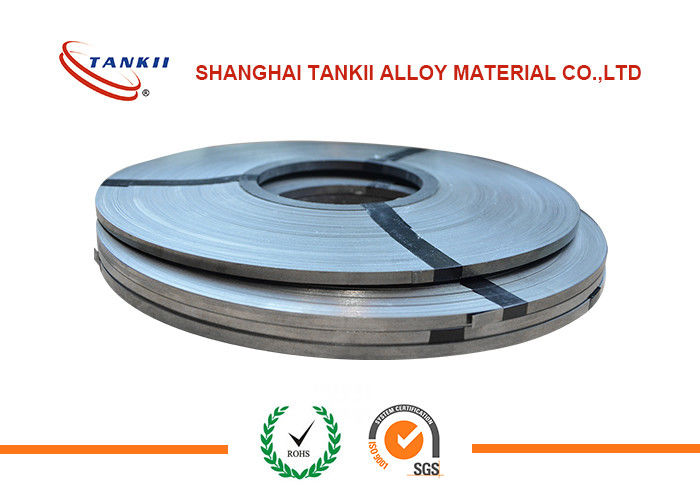

Strips

0.5*5.0-5.0*250mm

Bars

D10-100mm



 0Cr25Al5
Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.06

0.025

0.020

0.50

≤0.6

23.0-26.0

≤0.60

4.5-6.5

Balance

-


Mechanical Properties

Max Continuous Service Temperature:
Resisivity 20℃:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:

1300℃
1.42+/-0.07ohm mm2/m
7.25g/cm3
46.1 KJ/m·h·℃
15.0×10-6/℃ (20℃~1000℃)
1500℃
Min 12%
Ferrite
magnetic


Temperature Factor of Electrical Resistivity

20℃

100℃

200℃

300℃

400℃

500℃

600℃

1.000

1.002

1.005

1.008

1.013

1.021

1.030



700℃

800℃

900℃

1000℃

1100℃

1200℃

1300℃

1.038

1.040

1.042

1.044

1.046

1.047

1.047
