Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: N6 /Ni200
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: usd35~65/kg
Packaging Details: In Coil
Delivery Time: 5~14 dyas after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 tons/year
Item: |
2.4060 Pure Nickel Strip Roll 0.1mm/0.15mm/0.2mm Thickness And 300mm Width |
Density: |
8.89 |
Stock Size: |
0.3mm*25mm |
Leading Time: |
In 2 Days |
Material: |
Ni200 |
MOQ: |
20kg Per Size |
Item: |
2.4060 Pure Nickel Strip Roll 0.1mm/0.15mm/0.2mm Thickness And 300mm Width |
Density: |
8.89 |
Stock Size: |
0.3mm*25mm |
Leading Time: |
In 2 Days |
Material: |
Ni200 |
MOQ: |
20kg Per Size |

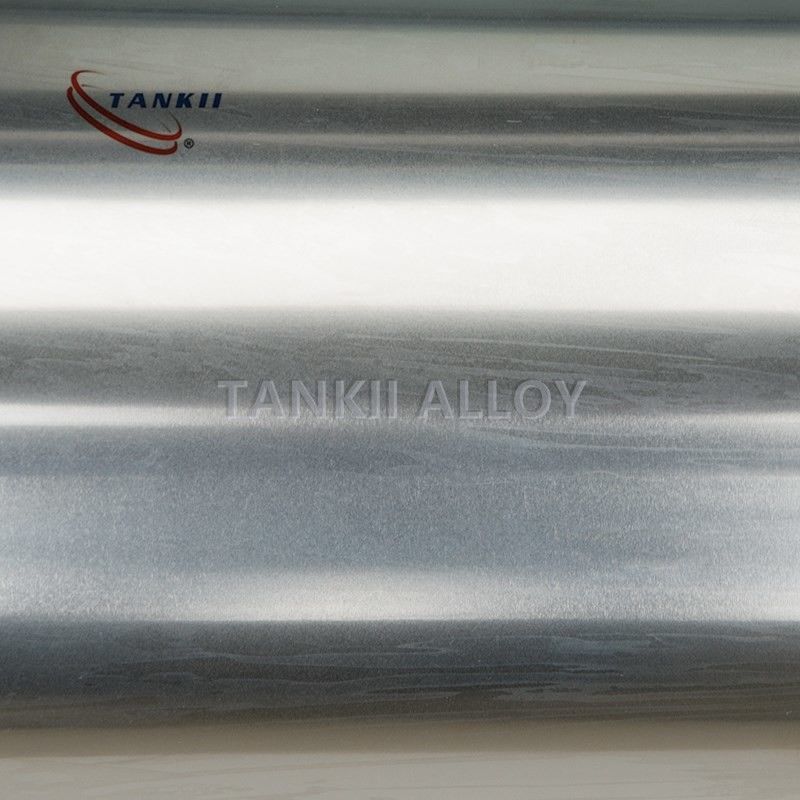

2.4060 Pure Nickel Strip Roll 0.1mm/0.15mm/0.2mm Thickness And 300mm Width
Pure nickel is a silvery white metal, which is widely used in chemical industry, mechanical electronics, food and other fields due to its excellent corrosion resistance, high electric vacuum performance and electromagnetic control performance.
Pure nickel has excellent weldability and machinability.
Nickel and nickel alloy are processed into tube, bar, wire, plate and foil shape for different usage.
1. Description
Ni200 nickel strip used as lithium battery pack materials
Our Ni200 nickel strip features:
Tensile strength: 250-350Mpa
Specific elongation: 15-25%
We also can provide you nickel tags which can be customised,
2. Features:
It has good mechanical strength,corrosion-resistant and heat-resistance strength.
It is widely used in electric apparatus,chemical machinery,ood processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.
3. Details of tankii pure nickel foil
| Material | Ni200, |
| Standard | ASTM B162 ASTM B880-1988 |
|
Specifications
|
Thickness : 0.025mm~0.1mm Max Width: 300mm
|
| Lead Time | 5~14days |
| Package | Wooden case as outside, carton box as inside |
| Payment | T/T,L/C,Western Union,Money Gram ,Paypal |
| Delivery state | Cold Formed (Y)/ Half Hard (Y2)/ Soft (M) |
|
Product Features |
(1)Low Density and High Specification Strength (2)Excellent Corrosion Resistance (3)Good resistance to effect of heat (4)Excellent Bearing to cryogenic property (5)Nonmagnetic and Non-toxic |
|
Advantages of our company |
(1) CE and ISO9001-2008 certified (2) SGS (3) Third-party verification service provider (4) Most convenient transport & quick delivery (5) Competitive price with best service (6) Exporting experience over 10 years |
| Application |
Electroplating, Aluminum Coloring: Its mechanical properties make it excellent for applications in the aerospace and defense industries and in moderately corrosive environments, such as food processing equipment and chemical shipping drums. construction of the railroad, highway and so on,different kinds of mechanical equipment, electronics, battery, chemical processing, marine engineering (1) For vacuum coating (2) For making valves grid, inner components of valves (3) For making lead, supporting wire |
Physical properties of nickel foil for battery:
| Density | Melting point | Coefficient of expansion | Modulus of rigidity | Modulus of elasticity | Electrical resistivity | |
| Ni200 | 8.9g/cm3 | 1446°C | 13.3 µm/m °C (20-100°C) | 81kN/mm2 | 204kN/mm2 | 9.6μW• cm |
| Ni201 | 1446°C |
13.1µm/m °C (20-100°C) |
82kN/mm2 | 207kN/mm2 | 8.5μW• cm |
Composition of nickel foil for battery:
| Grade | Element Composition/% | |||||||
| Ni+Co | Mn | Cu | Fe | C | Si | Cr | S | |
| Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.2 | ≤0.01 |
| Ni200 | ≥99.0 | /≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.2 | ≤0.01 |
4. Application:
Shieldingmaterial for communication electronics, antenna material, EMI-shieldingmaterial, spring contact,
flexible terminal, environmentally-friendlyplating-free electronic parts and components, quartz oscillator, high-level material and electric material.
It widely used for core of all kinds of the magnetic head-frequency, magnetic head-core,
Inductor microelement, high frequency induction element, the performace reaches or approaches advanced
Should have any question, please contact us freely.
