Product Details:
|
| Ni (Min): | : 99.9% Min | Powder Or Not: | : Not Powder |
|---|---|---|---|
| Thickness: | : 0.002 To 2.50 Mm | Width: | : Up To 1500mm Wide |
| Standard: | : ASTM B162 | Sample: | Available |
| High Light: | nickel foil,nickel copper alloy |
||

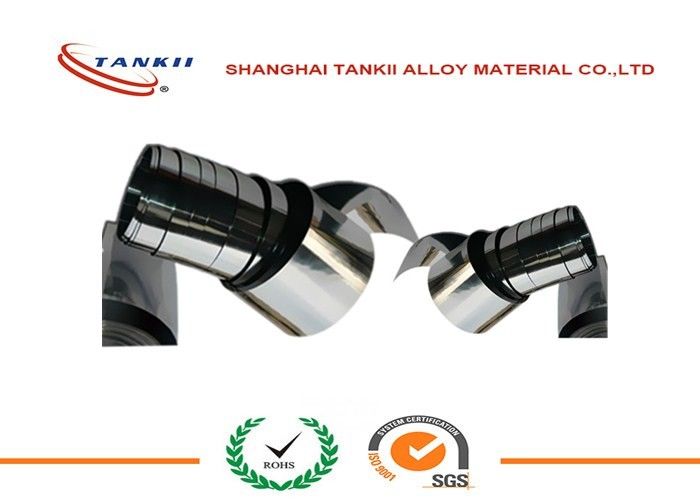

0.1mm * 8mm Pure Nickel 200 Strip , Nickel 201 for Cadmium Battery
Product Description
Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F. It has outstanding magnetic properties and thermal and electrical conductivity.
Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.
Chemical Composition of Pure Nickel Strip:
|
Nickel |
99.6% |
|
Copper |
0.25% |
|
Iron |
0.40% |
|
Manganese |
0.35% |
|
Carbon |
0.15% |
|
Silicon |
0.35% |
|
Sulfur |
0.01% |
|
Grade |
Ni+Co |
Cu |
Si |
Mn |
C |
Mg |
S |
P |
Fe |
|
N4 |
99.9 |
0.015 |
0.03 |
0.002 |
0.01 |
0.01 |
0.001 |
0.001 |
0.04 |
|
N6 |
99.6 |
0.10 |
0.10 |
0.05 |
0.10 |
0.10 |
0.005 |
0.002 |
0.10 |
|
Ni201 |
99.0 |
≤0.25 |
≤0.35 |
≤0.35 |
≤0.02 |
/ |
≤0.01 |
/ |
≤0.40 |
|
Ni200 |
99.0 |
0.20 |
0.30 |
0.30 |
0.15 |
/ |
0.01 |
/ |
0.40 |
Nickel Strip Product Precision
|
Thickness |
Thickness allowance |
Burr height |
Width scope and tolerance |
|||||
|
2≤w<10 |
10≤w<50 |
50≤w<100 |
100≤w<150 |
150≤w<200 |
200≤w |
|||
|
0.02≤t<0.05 |
±0.003 |
≤0.005 |
± |
±0.10 |
±0.15 |
±0.20 |
±0.30 |
±0.50 |
|
0.05≤t<0.1 |
±0.005 |
≤0.01 |
||||||
|
0.1≤t<0.2 |
±0.008 |
≤0.015 |
||||||
|
0.2≤t<0.3 |
±0.012 |
≤0.02 |
||||||
|
0.3≤t<0.4 |
±0.015 |
≤0.03 |
± |
±0.15 |
±0.25 |
±0.50 |
±0.80 |
±1.00 |
|
0.4≤t<0.6 |
±0.025 |
≤0.05 |
||||||
|
0.6≤t<0.8 |
±0.030 |
≤0.06 |
± |
±0.40 |
±0.50 |
±0.50 |
±0.80 |
±1.00 |
|
0.8≤t<1.0 |
±0.040 |
|||||||
|
1.0≤t<1.2 |
±0.050 |
≤0.08 |
± |
±0.50 |
±0.80 |
±1.00 |
±1.00 |
±1.50 |
|
1.2≤t<1.4 |
±0.060 |
|||||||
|
1.4≤t<1.7 |
±0.070 |
≤0.10 |
||||||
|
1.7≤t<2.0 |
±0.080 |
|||||||
Physical properties of Pure Nickel Strip:
|
Density, g/cm3 |
8.89 |
|
Melting Range, °C |
1435-1446 |
|
Specific Heat, J/kg•°C |
456 |
|
Curie Temperature, °C |
360 |
Properties of Pure Nickel Strip:
Applications of Nickel 200 Strip:
