Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: NiMn2 / Ni212
Payment & Shipping Terms
Minimum Order Quantity: 100 KG
Price: negotiable
Packaging Details: Spool + Carton + Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons per month
Material: |
Nickel Manganin Alloy Wire |
Diameter: |
0.05-5mm |
Surface: |
Bright |
Origin: |
China |
HS Code: |
75052200 |
Standard: |
GB |
Type: |
Wire Ribbon Tape |
Name: |
NiMn2 NI212 |
Material: |
Nickel Manganin Alloy Wire |
Diameter: |
0.05-5mm |
Surface: |
Bright |
Origin: |
China |
HS Code: |
75052200 |
Standard: |
GB |
Type: |
Wire Ribbon Tape |
Name: |
NiMn2 NI212 |
NiMn2 Chemical composition
| Item | Chemicals composition: % | |||||||||
| Ni+Co | Cu | Si | Mn | C | Mg | S | Fe | Pb | Zn | |
| NiMn2 | ≥97 | ≤0.20 | ≤0.20 | 1.5~2.5 | ≤0.05 | ≤0.15 | ≤0.01 | ≤0.30 | - | - |
NiMn2 Diameter and tolerance
| Diameter | Tolerance |
| >0.30~0.60 | -0.025 |
| >0.60~1.00 | -0.03 |
| >1.00~3.00 | -0.04 |
| >3.00~6.00 | -0.05 |
NiMn2 mechanical property
| Diameter | Condition | Tensile Strength ( MPA ) | Elongation % |
| 0.30~0.48 | Soft | ≥392 | ≥20 |
| 0.5~1.00 | ≥372 | ≥20 | |
| 1.05~6.00 | ≥343 | ≥25 | |
| 0.30~0.50 | Hard | 784~980 | - |
| 0.53~1.00 | 686~833 | - | |
| 1.05~5.00 | 539~686 | - |
Dimensions and delivery forms

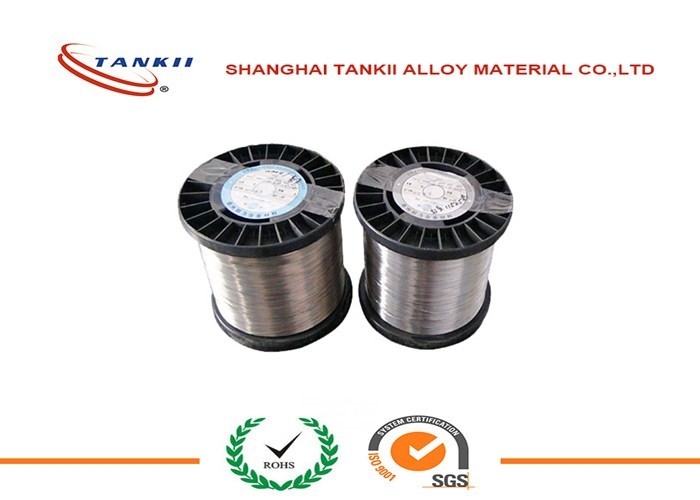

Wires can be produced in diameters from 0.13 to 5.0 mm and can be delivered on plastic standard spools or in coils, depending on the wire size.
Applications
Largely used for its corrosion resistance for lamp filaments, filters, industrial and laboratory equipment. Often used as a resistor, when high variation of resistance at temperature is required.
Stranded Nickel wire finds applications in resistor terminations.
NiMn2
The addition of Mn to pure Nickel brings much improved resistance to Sulphur attach at elevated temperatures andimproves strength and hardness, without appreciable reduction of ductility.
NiMn2 is used as a support wire in incandescent lamps and for electrical resistor terminations.
Features
The company electrode material (conductive material) having a low resistivity, high temperature strength, the smaller the arc
melting under the action of evaporation and so on.
