Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO 9001
Model Number: ERCuAl-A1
Payment & Shipping Terms
Minimum Order Quantity: 15KG
Price: 5.5-30.5USD/KG
Packaging Details: spool，coil
Delivery Time: 5-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000kg/month
Product Name: |
ERCuAl-A1 |
Chemical Composition: |
CuAl |
Size: |
Clints Requiry |
Surface: |
Bright |
Type: |
Wire |
Product Name: |
ERCuAl-A1 |
Chemical Composition: |
CuAl |
Size: |
Clints Requiry |
Surface: |
Bright |
Type: |
Wire |

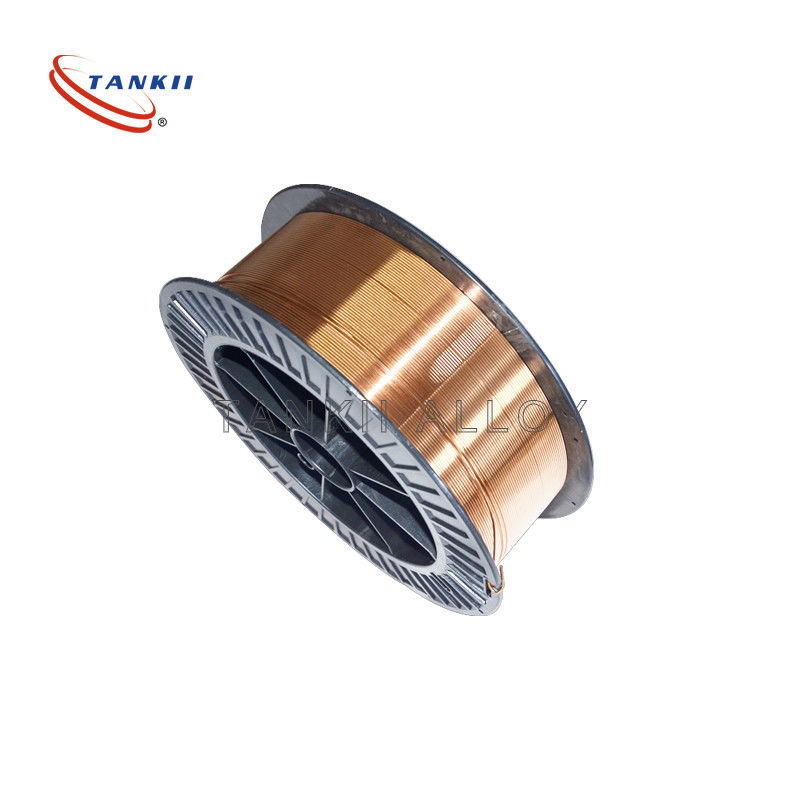

AWS A5.7 /ERCuAl-A1/Cu6100 (Alum Bronze A1) Filler Metal Used For MIG And TIG Overlaying
Aluminum Bronze, ERCuAl-A1, Cu6100, Perfect for welding of pure and austenitic steel sheet. Maintains good temperament flow and creates seamless welding line. Suggested for the butt joining welding of copper with steel, particularly suitable for machinery and shipbuilding industry. Pulsed argon arc welding is recommended for multilayer hard facing on steel.
ERCuAl-A1 is a moderate-strength aluminum bronze alloy predominantly used for weld overlay and metallizing in automotive and other manufacturing applications and for the build-up and repair of bearing and corrosion-resistant surfaces. It is not intended for use in joining.
| Solids-Temperature | 1030℃ |
| Density | 7.7kg/dm³ |
| Elongation | 40-45% |
| Liquids-Temperature | 1040℃ |
| Tensile Strength | 380-450N/mm² |
| Brinell Hardness | 100HB |
| MIG | Diameter | 0.8 – 2.0mm | Packaging | D100mm D200mm D300mm | Weight | 1kg/5kg/12.5kg/13.6kg/15kg | |||||||
| 0.030″-5/64″ | 2lb/10lb/27lb/ 30lb/33lb | ||||||||||||
| TIG | Diameter | 1.6 – 6.4mm | Length | 457mm / 914mm | Packaging | 5kg/box 25kg/box 10kg/plastic package | |||||||
| 1/16″ – 1/4″ | 18″ / 36″ | 10lb/box 50lb/box 10kg/plastic package | |||||||||||
Please noted: 500lb wooden spools products are available upon request.
| Standard | ISO24373 | GB/T9460 | GB/T9460 | BS EN14640 | AWS A5.7 | DIN 1733 |
| Class | Cu6100 | SCu6100 | SCu6100A | Cu6100 | C61000 | 2.0921 |
| Alloy | CuAl7 | CuAl7 | CuAl8 | CuAl8 | ERCuAl-A1 | SG-CuAl8 |
| Cu | bal. | bal. | bal. | bal. | bal. | bal. |
| Al | 6.0-8.5 | 6.0-8.5 | 7.0-9.0 | 6.0-9.5 | 6.0-8.5 | 7.5-9.5 |
| Fe | – | – | max 0.5 | 0.5 | – | max 0.5 |
| Mn | 0.5 | max 0.5 | max 0.5 | 0.5 | 0.5 | max 1.0 |
| Ni | – | – | max 0.5 | 0.8 | – | max 0.8 |
| P | – | – | – | – | – | – |
| Pb | 0.02 | – | max 0.02 | 0.02 | 0.02 | max 0.02 |
| Si | 0.2 | max 0.1 | max 0.2 | 0.2 | 0.1 | max 0.2 |
| Sn | – | – | max 0.1 | – | – | – |
| Zn | 0.2 | max 0.2 | max 0.2 | 0.2 | 0.2 | max 0.2 |
| other | 0.4 | max 0.5 | max 0.2 | 0.4 | 0.5 | max 0.4 |
