Product Details:
|
| Model No.: | Ni80Cr20 | Material: | Nickel,chrome |
|---|---|---|---|
| HS Code: | 75052200 | Grade: | NiCr Alloy |
| Application: | Industry | Condition: | Soft Annealed |
| High Light: | Ribbon Electric Heating Resistance Wire,Heating Resistance Flat Wire Nicr 80,Heating Flat Wire Ribbon |
||
NiCr8020/ NiCr7030 / NiCr3020/ NiCr6015 Wire/Strip Used for Resistor Elements in High Temperature Applications
Application:
Nichrome, a non-magnetic alloy of nickel and chromium, is commonly used to make resistance wire.
Because it has a high resistivity and resistance to oxidation at high temperatures. When used as a heating element, resistance wire is usually wound into coils.
Nichrome wire is commonly used in ceramics as an internal support structure to help some elements of clay sculptures hold their shape while they are still soft. Nichrome wire is used because of its ability to withstand the high temperatures that occur when a clay work is fired in a kiln.
NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.
3.Product size:
Round wire dia.0.05-12mm;
flat strip thickness0.03-5mm,flat strip width0.2-500mm.
| Condition | Bright / Acid White / Oxidied Color |

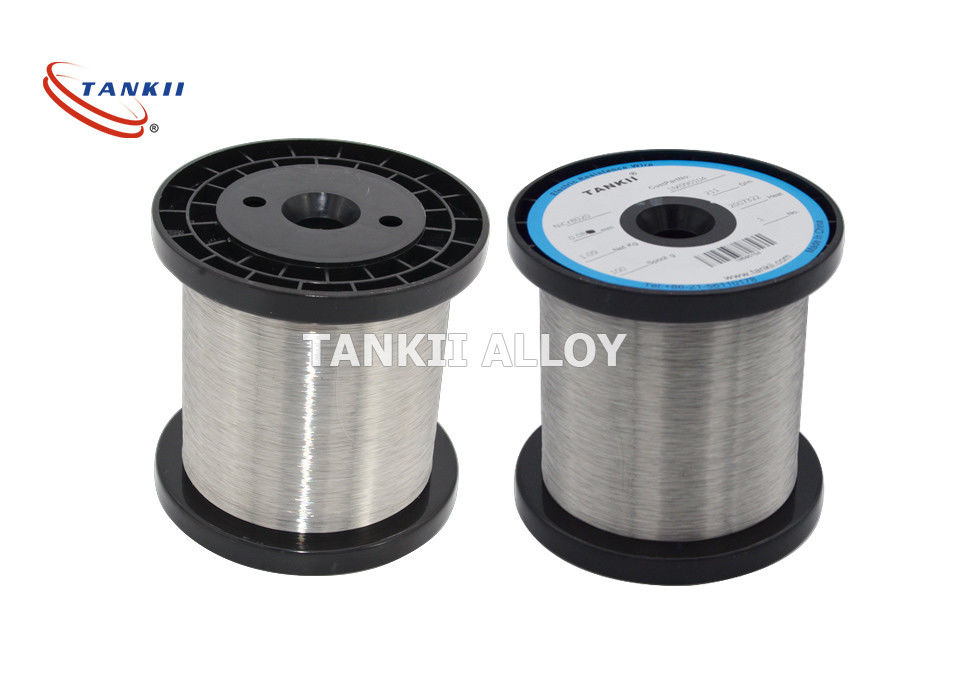

| Diameter | 0.018mm-1.6mm in Spool, 1.5mm-8mm in Coil, 8mm-60mm in Rod |
| Round Wire Diameter | 0.018mm - 10mm |
| Ribbon | Thickness 0.01-2mm, Width 0.5-5mm |
| Strip | Thickness 0.001-7mm, Width 1-450mm |
| Grade | Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20, Ni80, Ni70, Ni60, Ni40 |
| Production Standard | ASTM B603, DIN 17470, JIS C2520, GB/T 1234 |
| Characteristics | Stable Performance, Anti-Oxidation, Corrosion Resistance, High Temperature Stability, Excellent Coil-Forming Ability, Uniform and Beautiful Surface Condition without Spots |
| Usage | Resistance Heating Elements; Material in Metallurgy; Household Appliances; Mechanical Manufacturing and other industries. |
| Nichrome's metallurgical structure confers them a very good plasticity when cold | |
| Our Advantages | High Quality, Short Delivery Time, Small MOQ |
Main Characteristics of Nichrome Resistance Wires:
| Alloy Nomenclature Performance | Ni80Cr20 | Ni70Cr30 | Ni60Cr15 | Ni35Cr20 | Ni30Cr20 | |
|---|---|---|---|---|---|---|
| Main Chemical composition |
Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.0 | 1.04 | |
| Density (g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity(KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/ºC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point (approx.)( ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | Weak magnetic | |
