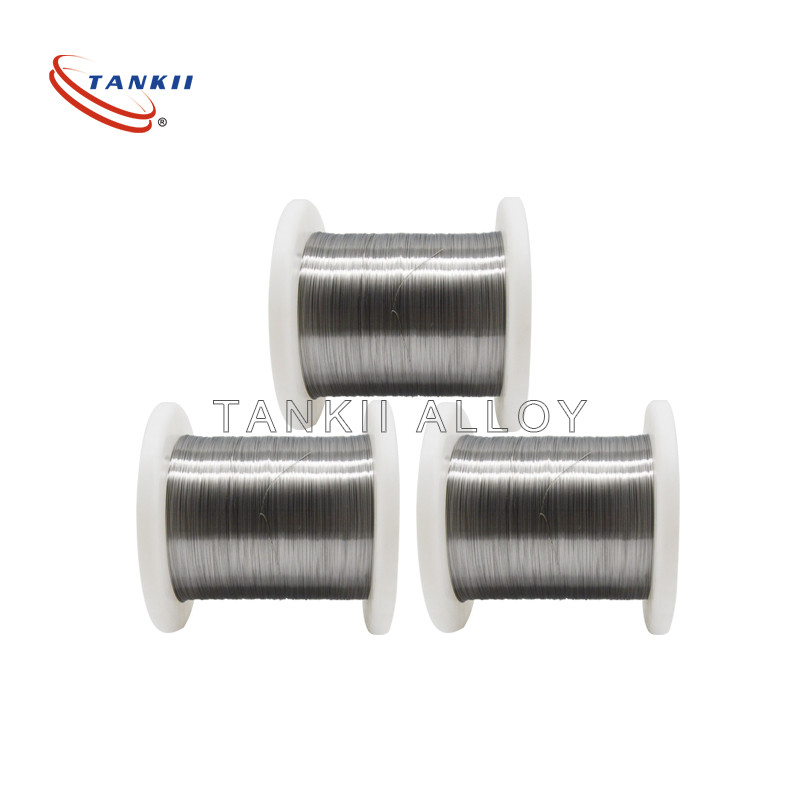

Round Nichrome Ribbon Wire For Electric Heating Elements Nicr6015

Name: Round Nichrome Ribbon Wire For Electric Heating Elements Nicr6015
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni60Cr15
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: Ni60Cr15

Payment & Shipping Terms

Minimum Order Quantity: 25 kg

Packaging Details: on spool

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 ton/30days

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Nicr6015 Nichrome Ribbon Wire, Electric Heating Nichrome Ribbon, Round Nichrome Ribbon Wire


State:	Bright And Annealed Soft	Shape:	Round Wire
Grade:	NiCr Alloy	Application:	Industry
Condition:	Soft Annealed	Feature:	High Resistance

State:	Bright And Annealed Soft
Shape:	Round Wire
Grade:	NiCr Alloy
Application:	Industry
Condition:	Soft Annealed
Feature:	High Resistance

Description

Round Nichrome Ribbon Wire For Electric Heating Elements Nicr6015

Nichrome 6015 NiCr60/15 wire for heaters in Fan

Nickel chromium alloy with iron resistance electrothermal high resistivity, surface body well. At high
temperature and high intensity, and a good performance and processing may welding nature widely used
metallurgical, electrical, mechanical components and electrical manufacturing industries for doing heat
resistance material.

Typical applications include metal-sheathed tubular elements used in hot plates, grills, toaster ovens, storage heaters, etc

NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.

3.Product size:
Round wire dia.0.02-12mm;
flat strip thickness 0.03-5mm,flat strip width0.2-500mm.

1.4867 / NC6015 Resistance Wire 0.3mm Used For Metal-Sheathed Tubular Elements

Ni60Cr15
Chemical Content, %

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.08	0.02	0.015	0.60	0.75~1.60	15.0~18.0	55~61	max 0.5	Bal	-

Mechanical Properties

Max Continuous Service:
Resisivity( 20ºC)/Ω·m:

Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property

1150ºC
1.11 +/-0.05

8.2 g/cm3
45.2 KJ/m·h·ºC
17.0 α×10-6/ºC
1390 ºC
Min 20%
Austenite
Slightly

1.4867 / NC6015 Resistance Wire 0.3mm Used For Metal-Sheathed Tubular Elements

Our Nichrome alloy are in the form of wire, ribbon, strip, coil.

Round wire
Ribbon (flat wire)
Strip / foil
Stranded wire
Sheet / plate

Delivery conditions are:

Bright annealed
Oxidized
Pickled
Enameled

Nichrome products sizes are:
Wire: 0.025mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.02*5.0mm-5.0*250mm
Bar: 10-100mm

Rohs Certified 1.4867 NiCr6015/NC6015 Resistance Wire 0.3mm Used Electronic Instruments

NiCr 80:20 - Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.

NiCr 70:30 - Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.

NiCr 60:15 - Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.

NiCr 40:20 - Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.

NiCr 30:20/ NiCr 20:25 - Industrial furnaces (upto 1050°C), heating elements of cooking equipment.

Application:

1. Dynamic Braking Starting Resistor
2. Neutral Grounding Resistor
3. Resistor Box
4. Hot Cutting Wire
5. Industrial Furnace Ovens
6. Industry Heater

Description

Alloy	Standard Strand Construction, mm	Resistance,Ω/m	Strand Diameter Nominal, mm	Meter per Kilo
NiCr 80/20	19×0.544	0.233-0.269		26
NiCr 80/20	19×0.61	0.205-0.250
NiCr 80/20	19×0.523	0.276-0.306	2.67	30
NiCr 80/20	19×0.574		2.87	25
NiCr 80/20	37×0.385	0.248-0.302	2.76	26
NiCr 60/15	19×0.508	0.286-0.318
NiCr 60/15	19×0.523	0.276-0.304		30
Ni	19×0.574	0.020-0.027	2.87	21

Details

Propertes/Grade		Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Main Chemical composition	Ni	Rest	Rest	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Rest	Rest	Rest
Max. continuous service temp. of element		1200	1250	1150	1100	1100
Resistivity at 20oC (μ Ω · m)		1.09	1.18	1.12	1.04	1.04
Density (g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal conductivity(KJ/m· h· oC)		60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion(α × 10-6/oC)		18	17	17	19	19
Melting point (approx. )( oC)		1400	1380	1390	1390	1390
Elongation at rupture (%)		> 20	> 20	> 20	> 20	> 20
Micrographic structure		austenite	austenite	austenite	austenite	austenite
Magnetic properties		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

Chemical Composition	Nickel , Chrome
Condition	Bright/Acid white/Oxidied Color
Grade	Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
Advantage	Nichrome's metallurgical structure confers them a very good plasticity when cold.
Characteristics	Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
