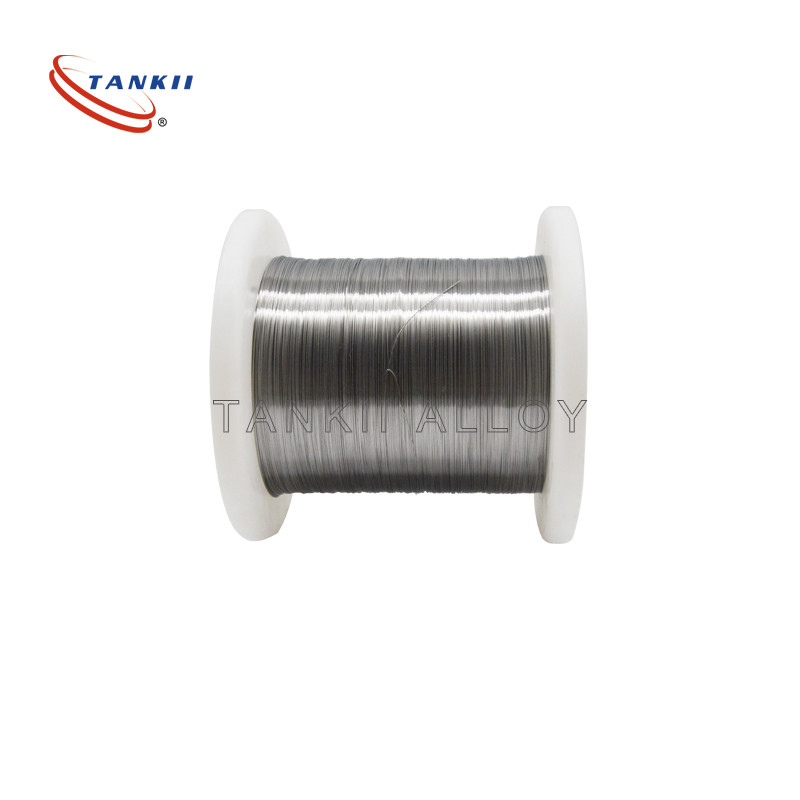

Round Nichrome Alloy Wire Electric Heat Resistance Ni70Cr30

Name: Round Nichrome Alloy Wire Electric Heat Resistance Ni70Cr30
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Cr30Ni70
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: TANKII

Certification: DIN, ASTM, JIS ROHS

Model Number: Cr30Ni70

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Price: 30-80USD

Packaging Details: spool ,coil, carton, wood box, or as clients' requirement

Delivery Time: 5-10 work days

Payment Terms: T/T, L/C, , Western Union

Supply Ability: 50 tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Nichrome Alloy Electric Heat Wire, Heat Resistance Nichrome Alloy Wire, Nichrome Heat Resistance Wire


Grade:	NrCr7030, Nikrothal 70, N7, HAI-NiCr70, Tophet 30, Resistohm 70, Stablohm 70.	Application:	Furnace Heating Wire/household Appliances
Elongation (≥ %):	20	Resistance (μω.m):	1.18
Powder Or Not:	Not Powder	Ultimate Strength (≥ Mpa):	875 N/mm²
Surface:	Bright Annealed	Shape:	Round Wire
Material:	Nichrome	Condition:	Soft Annealed
Standard:	ASTM B162, GB/1234 2012, GB/T 2054-2013, ASTM ASME, ASME SB162	Density:	8.1
Feature:	High Temperature Strength

Grade:	NrCr7030, Nikrothal 70, N7, HAI-NiCr70, Tophet 30, Resistohm 70, Stablohm 70.
Application:	Furnace Heating Wire/household Appliances
Elongation (≥ %):	20
Resistance (μω.m):	1.18
Powder Or Not:	Not Powder
Ultimate Strength (≥ Mpa):	875 N/mm²
Surface:	Bright Annealed
Shape:	Round Wire
Material:	Nichrome
Condition:	Soft Annealed
Standard:	ASTM B162, GB/1234 2012, GB/T 2054-2013, ASTM ASME, ASME SB162
Density:	8.1
Feature:	High Temperature Strength

Description

Round Nichrome Alloy Wire Electric Heat Resistance Ni70Cr30

High Quality Electric Heat Resistance Alloy Nichrome Alloy Wire Ni70Cr30 Wire

Related Grade: Ni70Cr30, Nikrothal 70, N7, HAI-NiCr 70, Chromel 70/30, Resistohm 70, Balco,Tophet 30,Cronix 70,Alloy 710,Stablohm 710)

Ni70Cr30 is a nickel-chromium alloy (NiCr alloy) characterized byHigh resistivity, good oxidation resistance,very good form stability,good ductility and excellent weldability. It is suitable for use at temperatures up to 1200°C.

Typical applications for Ni70Cr30 are used in electrical heating elements in industrial furnace,and well suited for reducing atmospheres.

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.05	0.02	0.015	0.60	0.75~1.60	28.0~31.0	Bal.	Max 0.50	Max 1.0	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
430	820	30

Typical Physical properties

Density (g/cm3)	8.1
Electrical resistivity at 20℃(Ωmm2/m)	1.18
Conductivity coefficient at 20℃ (WmK)	14

Coefficient of thermal expansion
Temperature	Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃	17

Specific heat capacity
Temperature	20℃
J/gK	0.46

Melting point (℃)	1380
Max continuous operating temperature in air (℃)	1250
Magnetic properties	non-magnetic

Temperature Factors Of Electrical Resistivity

20℃	100℃	200℃	300℃	400℃	500℃	600℃
1	1.007	1.016	1.028	1.038	1.044	1.036
700℃	800℃	900℃	1000℃	1100℃	1200℃	1300℃
1.03	1.028	1.029	1.033	1.037	1.043	-

Style of supply

Alloys Name	Type	Dimension
OhmAlloy118W	Wire	D=0.03mm~8mm
OhmAlloy118R	Ribbon	W=0.4~40	T=0.03~2.9mm
OhmAlloy118S	Strip	W=8~250mm	T=0.1~3.0
OhmAlloy118F	Foil	W=6~120mm	T=0.003~0.1
OhmAlloy118B	Bar	Dia=8~100mm	L=50~1000

Round Nichrome Alloy Wire Electric Heat Resistance Ni70Cr30 0
