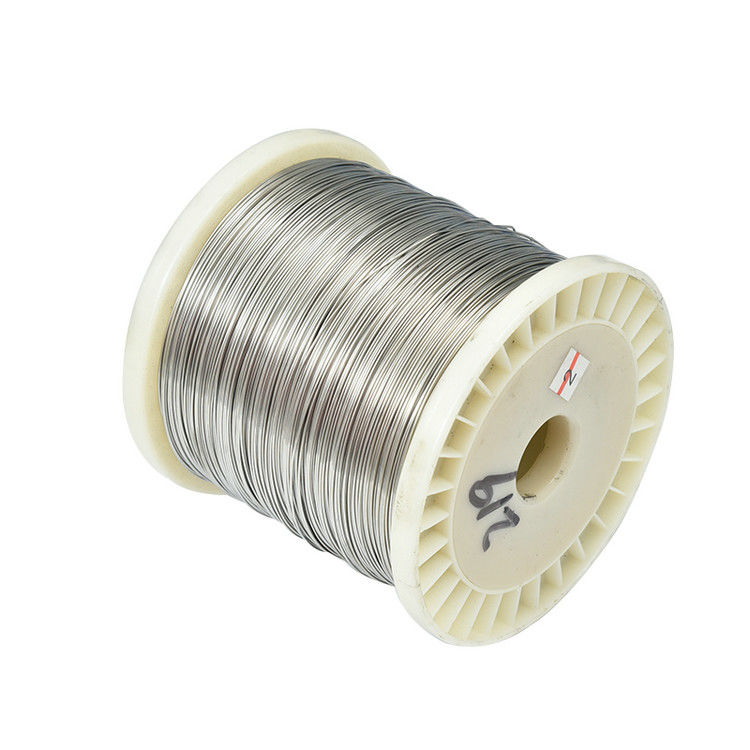

Bright Annealed FeCrAl Alloy Round Resistance Wire 0Cr25Al5

Product Details

Place of Origin: Jiangsu

Brand Name: TANKII

Certification: DIN, ASTM, JIS ROHS

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 30KG

Price: 5-25USD/KG

Packaging Details: spool ,coil, carton, wood box, or as clients' requirement

Delivery Time: 5-10 work days

Payment Terms: T/T, L/C, , Western Union

Supply Ability: 50 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

FeCrAl Alloy Resistance Wire Round

,

Bright Annealed Resistance Wire

,

Resistor Fecral Wire 0Cr25Al5

Application:
Furnace Heating Wire
Shape:
Round Wire
Material:
Fecral
Chemical Composition:
Fe Cr Al
Dimensions:
0.05-12mm
Surface:
Acid/oxidized
Density:
7.1
Melting Point:
1500°
Condition:
Soft/hard Half Hard
Resistivity:
1.42
Tensile Strength:
630-780N/mm²
Size:
0.02-12mm
Application:
Furnace Heating Wire
Shape:
Round Wire
Material:
Fecral
Chemical Composition:
Fe Cr Al
Dimensions:
0.05-12mm
Surface:
Acid/oxidized
Density:
7.1
Melting Point:
1500°
Condition:
Soft/hard Half Hard
Resistivity:
1.42
Tensile Strength:
630-780N/mm²
Size:
0.02-12mm
Description
Bright Annealed FeCrAl Alloy Round Resistance Wire 0Cr25Al5

Bright Annealed Fecral 0Cr25Al5 Resistance Wire With Competitive Price


FeCrAl alloy is high resistance and electrical heating alloy. FeCrAl alloy can reach process temperatures of 2192 t0 2282oF, corresponding to a resistance temperature of 2372 oF. In order to improve anti-oxidation ability and increase working life, we usually put addition of rare earths in the alloy such as La + Ce, Yttium, Hafnium, Zirconium, etc.
It is normally used in electrical furnace, glass top hobs, quartz tube heaters, resistors, catalytic coverter, hearting element and etc.

Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm

About samples
We can provide samples product and delivery service. Usually 4 to 7 days, the samples can be sent to you hand. For further more informations welcome to contact Ms Sunny via:
Email: zlz@tankii.com
Mobile/whatsapp/Wechat:+86 18964097118
Specification
Grade
Highest temperature
Resistivity
Melting point
Tensile strength
Elongation
0Cr21Al4
1100℃
1.23±0.06μΩ.m
1500℃
750
≥12
0Cr25Al5
1250℃
1.42±0.07μΩ.m
1500℃
750
≥12
0Cr23Al5
1300℃
1.35±0.06μΩ.m
1500℃
750
≥12
0Cr21Al6Nb
1350℃
1.43±0.07μΩ.m
1510℃
750
≥12
0Cr27Al7Mo2
1400℃
1.53±0.07μΩ.m
1520℃
750
≥10
KSC
1350℃
1.44±0.05μΩ.m
1510℃
750
≥16
Cr20Ni80
1200℃
1.09±0.05μΩ.m
1400℃
750
≥20
Cr15Ni60
1150℃
1.12±0.05μΩ.m
1390℃
750
≥20
Cr20Ni35
1100℃
1.04±0.05μΩ.m
1390℃
750
≥20
Cr20Ni30
1100℃
1.04±0.05μΩ.m
1390℃
750
≥20


Bright Annealed FeCrAl Alloy Round Resistance Wire 0Cr25Al5 0Bright Annealed FeCrAl Alloy Round Resistance Wire 0Cr25Al5 1Bright Annealed FeCrAl Alloy Round Resistance Wire 0Cr25Al5 2
Packing & Delivery
Bright Annealed FeCrAl Alloy Round Resistance Wire 0Cr25Al5 3
Bright Annealed FeCrAl Alloy Round Resistance Wire 0Cr25Al5 4
For resistance wire, we packed wire on spools, plastic film covers on the wires, then put into carton. At last, all cartons packed on the pallent or in the wooden box. Also could be packed by customers' requirement.
