0Cr23Al5 FeCrAl Alloy Heat Resistance Wire For Household Appliances

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: DIN, ASTM, JIS ROHS

Model Number: 0Cr23Al5

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Price: 5-25USD/KG

Packaging Details: spool ,coil, carton, wood box, or as clients' requirement

Delivery Time: 5-10 work days

Payment Terms: T/T, L/C

Supply Ability: 30 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

FeCrAl Alloy Heat Resistance Wire

,

Heat Resistance Wire 0Cr23Al5

,

Household Appliances Resistance Fecral Wire

Application:
Household Appliances
Shape:
Wire
Material:
Fecral
Chemical Composition:
Fe Cr Al
Dimensions:
0.03-12mm
Surface:
Acid/oxidized
Density:
7.25
Melting Point:
1500°
Condition:
Soft/hard Half Hard
Resistivity:
1.35
Tensile Strength:
630-780N/mm²
Size:
0.02-12mm
Application:
Household Appliances
Shape:
Wire
Material:
Fecral
Chemical Composition:
Fe Cr Al
Dimensions:
0.03-12mm
Surface:
Acid/oxidized
Density:
7.25
Melting Point:
1500°
Condition:
Soft/hard Half Hard
Resistivity:
1.35
Tensile Strength:
630-780N/mm²
Size:
0.02-12mm
Description

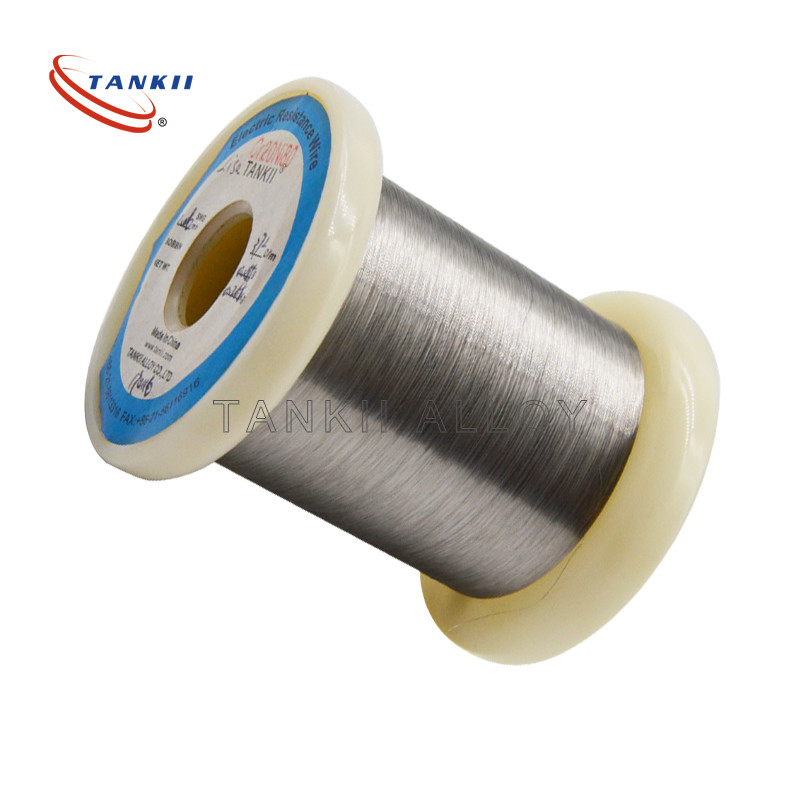

0Cr23Al5 FeCrAl Alloy Heat Resistance Wire For Household Appliances
Product discription

0Cr23Al5 Heat resistance wire for household appliances


FeCrAl alloy is high resistance and electrical heating alloy. FeCrAl alloy can reach process temperatures of 2192 t0 2282oF, corresponding to a resistance temperature of 2372 oF. In order to improve anti-oxidation ability and increase working life, we usually put addition of rare earths in the alloy such as La + Ce, Yttium, Hafnium, Zirconium, etc.
0Cr23Al5 is one kind of normal material of Fe-Cr-Al alloy.
It has characteristics of high resistivity,low temperature resistance coefficient, high operating temperature, good anti-oxidation and anti-corrosion under high temperature.It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.

Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Sample available. Welcome to contact for more information Via:
Email: zlz@tankii.com
Skype: tankii08
Whatsapp:+86 189 6509 7118
Specification
Grade
Highest temperature
Resistivity
Melting point
Tensile strength
Elongation
0Cr21Al4
1100℃
1.23±0.06μΩ.m
1500℃
750
≥12
0Cr25Al5
1250℃
1.42±0.07μΩ.m
1500℃
750
≥12
0Cr23Al5
1300℃
1.35±0.06μΩ.m
1500℃
750
≥12
0Cr21Al6Nb
1350℃
1.43±0.07μΩ.m
1510℃
750
≥12
0Cr27Al7Mo2
1400℃
1.53±0.07μΩ.m
1520℃
750
≥10
KSC
1350℃
1.44±0.05μΩ.m
1510℃
750
≥16
Cr20Ni80
1200℃
1.09±0.05μΩ.m
1400℃
750
≥20
Cr15Ni60
1150℃
1.12±0.05μΩ.m
1390℃
750
≥20
Cr20Ni35
1100℃
1.04±0.05μΩ.m
1390℃
750
≥20
Cr20Ni30
1100℃
1.04±0.05μΩ.m
1390℃
750
≥20
