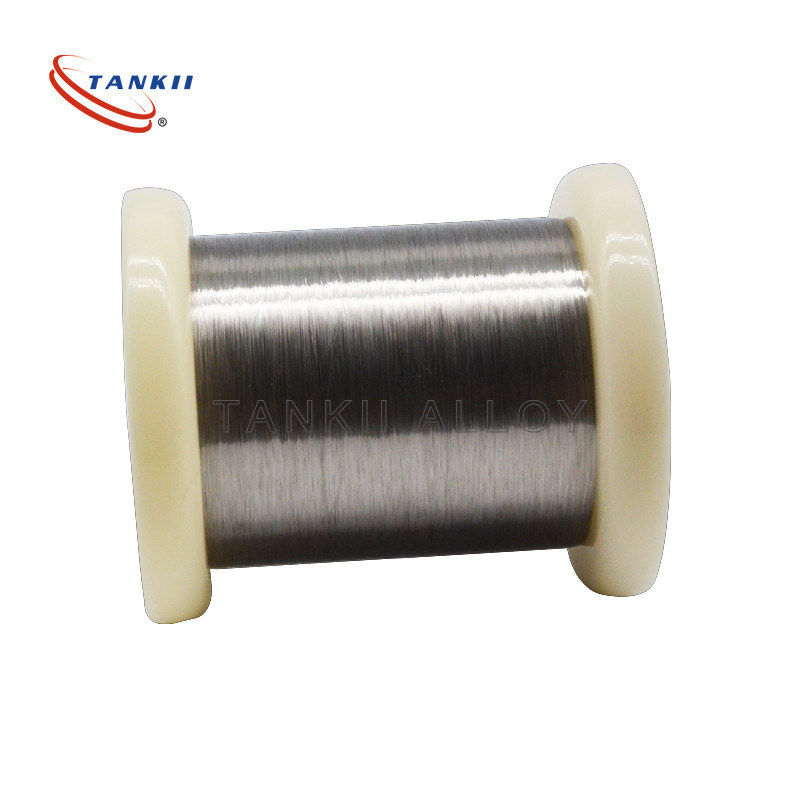

High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb

Product Details

Place of Origin: Jiangsu

Brand Name: TANKII

Certification: DIN, ASTM, JIS

Model Number: 0Cr21Al6Nb

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Price: 6-25USD/KG

Packaging Details: spool ,coil, or as clients' requirement

Delivery Time: 5-10 work days

Payment Terms: T/T, L/C

Supply Ability: 55 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Heat Resistance Wire 0Cr21Al6Nb

,

Electric FeCrAl Alloy Heat Resistance Wire

,

High Temperature Fecral Wire

Application:
Furnace Heating Wire
Shape:
Round Wire
Material:
Fecral
Chemical Composition:
Fe Cr Al
Dimensions:
0.05-12mm
Surface:
Acid/oxidized
Density:
7.1
Melting Point:
1500°
Condition:
Soft/hard
Resistivity:
1.45
Tensile Strength:
680-800N/mm²
Product Name:
Resistance Wire Fecral Alloy Wre 0Cr21Al6Nb
Size:
0.02-10mm
Application:
Furnace Heating Wire
Shape:
Round Wire
Material:
Fecral
Chemical Composition:
Fe Cr Al
Dimensions:
0.05-12mm
Surface:
Acid/oxidized
Density:
7.1
Melting Point:
1500°
Condition:
Soft/hard
Resistivity:
1.45
Tensile Strength:
680-800N/mm²
Product Name:
Resistance Wire Fecral Alloy Wre 0Cr21Al6Nb
Size:
0.02-10mm
Description
High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb
Product discription

High Temperature Electric Heat Resistance wire 0Cr21Al6Nb Brand Tankii


FeCrAl alloy is high resistance and electrical heating alloy. FeCrAl alloy can reach process temperatures of 2192 t0 2282oF, corresponding to a resistance temperature of 2372 oF. In order to improve anti-oxidation ability and increase working life, we usually put addition of rare earths in the alloy such as La + Ce, Yttium, Hafnium, Zirconium, etc.

0Cr21Al6Nb is normally used in electrical furnace, glass top hobs, quartz tube heaters, resistors, catalytic coverter, hearting element and etc.
0Cr21Al6Nb is one kind of normal material of Fe-Cr-Al alloy.
It has the characteristic of high resistivity,low temperature resistance coefficient, high operating temperature, good anti-oxidation and anti-corrosion under high temperature.It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive,
military and other industries producing heating elements and resistance elements.

Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Specification
Grade
Highest temperature
Resistivity
Melting point
Tensile strength
Elongation
0Cr21Al4
1100℃
1.23±0.06μΩ.m
1500℃
750
≥12
0Cr25Al5
1250℃
1.42±0.07μΩ.m
1500℃
750
≥12
0Cr23Al5
1300℃
1.35±0.06μΩ.m
1500℃
750
≥12
0Cr21Al6Nb
1350℃
1.43±0.07μΩ.m
1510℃
750
≥12
0Cr27Al7Mo2
1400℃
1.53±0.07μΩ.m
1520℃
750
≥10
KSC
1350℃
1.44±0.05μΩ.m
1510℃
750
≥16
Cr20Ni80
1200℃
1.09±0.05μΩ.m
1400℃
750
≥20
Cr15Ni60
1150℃
1.12±0.05μΩ.m
1390℃
750
≥20
Cr20Ni35
1100℃
1.04±0.05μΩ.m
1390℃
750
≥20
Cr20Ni30
1100℃
1.04±0.05μΩ.m
1390℃
750
≥20
High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb 0
High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb 1

Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.



High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb 2High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb 3High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb 4High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb 5High Temperature Electric FeCrAl Alloy Heat Resistance Wire 0Cr21Al6Nb 6
