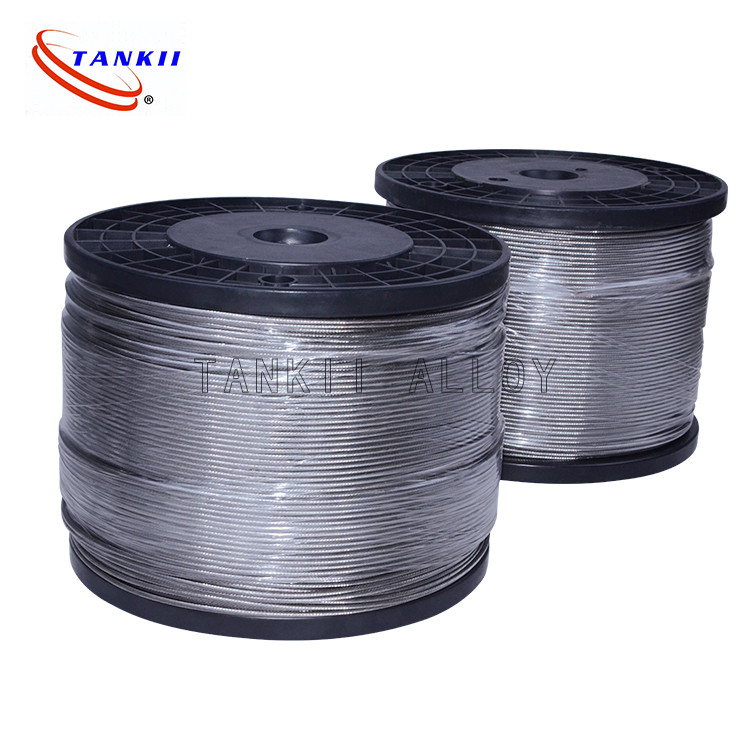

Round 0Cr27Al7Mo2 FeCrAl Alloy For High Temperature Industrial Furnace

Product Details

Place of Origin: Jiangsu

Brand Name: TANKII

Certification: DIN, ASTM, JIS

Model Number: 0Cr27Al7Mo2

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: 5-25USD/KG

Packaging Details: spool ,coil, or as clients' requirement

Delivery Time: 5-10 work days

Payment Terms: T/T, L/C

Supply Ability: 50 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Industrial Furnace Fecral Alloy Resistance Wire

,

Round Fecral Wire 0Cr27Al7Mo2

,

Fecral High Temperature Wire

Application:
Furnace Heating Wire
Shape:
Round Wire
Material:
Fecral
Chemical Composition:
Fe Cr Al
Dimensions:
0.05-12mm
Surface:
Acid/oxidized
Density:
7.1
Color:
Oxidized
Melting Point:
1500°
Feature:
High Corr
Condition:
Soft/hard
Resistivity:
1.53
Tensile Strength:
680-830N/mm²
Product Name:
Resistance Wire Fecral Alloy Wre 0Cr27Al7Mo2
Size:
0.02-10mm
Surface Treatment:
Bright Oxidation
Application:
Furnace Heating Wire
Shape:
Round Wire
Material:
Fecral
Chemical Composition:
Fe Cr Al
Dimensions:
0.05-12mm
Surface:
Acid/oxidized
Density:
7.1
Color:
Oxidized
Melting Point:
1500°
Feature:
High Corr
Condition:
Soft/hard
Resistivity:
1.53
Tensile Strength:
680-830N/mm²
Product Name:
Resistance Wire Fecral Alloy Wre 0Cr27Al7Mo2
Size:
0.02-10mm
Surface Treatment:
Bright Oxidation
Description
Round 0Cr27Al7Mo2 FeCrAl Alloy For High Temperature Industrial Furnace
Product discription

TANKII FeCrAl Alloy 0Cr27Al7Mo2 for high temperature industrial furnace


FeCrAl alloy is high resistance and electrical heating alloy. FeCrAl alloy can reach process temperatures of 2192 t0 2282oF, corresponding to a resistance temperature of 2372 oF. In order to improve anti-oxidation ability and increase working life, we usually put addition of rare earths in the alloy such as La + Ce, Yttium, Hafnium, Zirconium, etc.

0Cr27Al7Mo2 is normally used in electrical furnace, glass top hobs, quartz tube heaters, resistors, catalytic coverter, hearting element and etc.
0Cr27Al7Mo2 is one kind of normal material of Fe-Cr-Al alloy.
It has the characteristic of high resistivity,low temperature resistance coefficient, high operating temperature, good anti-oxidation and anti-corrosion under high temperature.It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive,
military and other industries producing heating elements and resistance elements.

Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Specification
Grade
Highest temperature
Resistivity
Melting point
Tensile strength
Elongation
0Cr21Al4
1100℃
1.23±0.06μΩ.m
1500℃
750
≥12
0Cr25Al5
1250℃
1.42±0.07μΩ.m
1500℃
750
≥12
0Cr23Al5
1300℃
1.35±0.06μΩ.m
1500℃
750
≥12
0Cr21Al6Nb
1350℃
1.43±0.07μΩ.m
1510℃
750
≥12
0Cr27Al7Mo2
1400℃
1.53±0.07μΩ.m
1520℃
750
≥10
KSC
1350℃
1.44±0.05μΩ.m
1510℃
750
≥16
Cr20Ni80
1200℃
1.09±0.05μΩ.m
1400℃
750
≥20
Cr15Ni60
1150℃
1.12±0.05μΩ.m
1390℃
750
≥20
Cr20Ni35
1100℃
1.04±0.05μΩ.m
1390℃
750
≥20
Cr20Ni30
1100℃
1.04±0.05μΩ.m
1390℃
750
≥20
