Product Details:
|
| Item: | Nikrothal 80 / Chromel 7030 /Kanthal AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm | Dia: | 0.05~16mm |
|---|---|---|---|
| Package: | Bobbin, Spools, Wooden Box | Leading Time: | 7~20 Dyas After Getting The Payment |
| MOQ: | 5~40kg As Per Sizes | Application: | Resistor |
| Certificate: | Mill's Test Certificate | Supplier: | Tankii |
| High Light: | Manganin Electric Resistance Wire,Constantan Electric Resistance Wire,Dia 0.05mm Electric Resistance Wire |
||
Nikrothal 80 / Chromel 7030 /Kanthal AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
Main Types of resistance wire:
1. Nichrome alloy wire
2. FeCrAl (iron-chromium-aluminium) alloy wire
3. Constantan wire
4. Copper Nickel alloy wire
5. Manganin wire
Parameters of resistance wires:
Nichrome alloy wire:
|
Performance/ material |
Cr10Ni90 |
Cr20Ni80 |
Cr30Ni70 |
Cr15Ni60 |
Cr20Ni35 |
Cr20Ni30 |
|
| Composition | Ni |
90
|
Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.3-34.0 |
| Cr | 10 | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | -- | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element(ºC) | 1200 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Melting Point | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Resistivity | -- | 1.09+-0.05 | 1.18+-0.05 | 1.12+-0.05 | 1.00+-0.05 | 1.04+-0.05 | |
| Density (g/cm3) | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| T.S.(MPa) | ≥490 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | |
| Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy |
||||||||
| Properties Grade |
1Cr13Al4 |
0Cr25Al5 |
0Cr21Al6 |
0Cr23Al5 |
0Cr21Al4 |
0Cr21Al6Nb |
0Cr27Al7Mo2 |
|
| Main Chemical Composition (%) |
Cr |
12.0-15.0 |
23.0-26.0 |
19.0-22.0 |
22.5-24.5 |
18.0-21.0 |
21.0-23.0 |
26.5-27.8 |
| Al |
4.0-6.0 |
4.5-6.5 |
5.0-7.0 |
4.2-5.0 |
3.0-4.2 |
5.0-7.0 |
6.0-7.0 |
|
| Re |
opportune |
opportune |
opportune |
opportune |
opportune |
opportune |
opportune |
|
| Fe |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
|
| Nb0.5 |
Mo1.8-2.2 |
|||||||
|
Max Continuous Service Temperature(oC) |
950 |
1250 |
1250 |
1250 |
1100 |
1350 |
1400 |
|
| Resisivity 20℃ (Ωmm2/m) |
1.25 ±0.08 |
1.42 ±0.06 |
1.42 ±0.07 |
1.35 ±0.07 |
1.23 ±0.07 |
1.45 ±0.07 |
1.53 ±0.07 |
|
| Density(g/cm3) |
7.4 |
7.1 |
7.16 |
7.25 |
7.35 |
7.1 |
7.1 |
|
| Thermal Conductivity |
52.7 |
46.1 |
63.2 |
60.2 |
46.9 |
46.1 |
45.2 |
|
| (KJ/m@h@℃) |
||||||||
|
Coefficient of Thermal Expansion(α×10-6/℃) |
15.4 |
16 |
14.7 |
15 |
13.5 |
16 |
16 |
|
|
Approximate Melting Point( ℃) |
1450 |
1500 |
1500 |
1500 |
1500 |
1510 |
1520 |
|
| Tensile Strength(N/mm2) |
580-680 |
630-780 |
630-780 |
630-780 |
600-700 |
650-800 |
680-830 |
|
| Elongation(%) |
>16 |
>12 |
>12 |
>12 |
>12 |
>12 |
>10 |
|
| Section Variation |
65-75 |
60-75 |
65-75 |
65-75 |
65-75 |
65-75 |
65-75 |
|
| Shrink Rate (%) |
||||||||
|
Repeatedly Bend Frequency(F/R) |
>5 |
>5 |
>5 |
>5 |
>5 |
>5 |
>5 |
|
| Hardness (H.B.) |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
|
| Continuous Service Time |
no |
≥80/1300 |
≥80/1300 |
≥80/1300 |
≥80/1250 |
≥50/1350 |
≥50/1350 |
|
| Micrographic Structure |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
|
| Magnetic Property |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic | |
FeCrAl (iron-chromium-aluminium) alloy wire:
Constantan wire:
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 44 | 1.50% | 0.5 | - | Bal | - | ND | ND | ND | ND |
| Max Continuous Service Temp | 400ºC |
| Resisivity at 20ºC | 0.49±5%ohm mm2/m |
| Density | 8.9 g/cm3 |
| Thermal Conductivity | -6(Max) |
| Melting Point | 1280ºC |
| Tensile Strength,N/mm2 Annealed,Soft | 340~535 Mpa |
| Tensile Strength,N/mm3 Cold Rolled | 680~1070 Mpa |
| Elongation(anneal) | 25%(Min) |
| Elongation(cold rolled) | ≥Min)2%(Min) |
| EMF vs Cu, μV/ºC (0~100ºC) | -43 |
| Micrographic Structure | austenite |
| Magnetic Property | Non |
Copper Nickel alloy wire:
Main grades and properties
| Type | Electrical resistivity (20degreeΩ mm²/m) |
Temperature coefficient of resistance (10^6/degree) |
Density g/mm² |
Max. temperature (°c) |
Melting point (°c) |
| CuNi1 | 0.03 | <1000 | 8.9 | 200 | 1085 |
| CuNi2 | 0.05 | <1200 | 8.9 | 200 |
1090 |
| CuNi6 | 0.10 | <600 | 8.9 | 220 | 1095 |
| CuNi8 | 0.12 | <570 | 8.9 | 250 | 1097 |
| CuNi10 | 0.15 | <500 | 8.9 | 250 | 1100 |
| CuNi14 | 0.20 | <380 | 8.9 | 300 | 1115 |
| CuNi19 | 0.25 | <250 | 8.9 | 300 | 1135 |
| CuNi23 | 0.30 | <160 | 8.9 | 300 | 1150 |
| CuNi30 | 0.35 | <100 | 8.9 | 350 | 1170 |
| CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
| CuNi40 | 0.48 | ±40 | 8.9 | 400 | 1280 |
| CuNi44 | 0.49 | <-6 | 8.9 | 400 | 1280 |
Manganin wire:
| Alloy type | Cu | Mn | Ni |
| 6J8 | rest | 8-10 | / |
| 6J12 | rest | 11-13 | 2-3 |
| 6J13 | rest | 11-13 | 2-5 |
Parameters:
| Item | 6J8 | 6J12 | 6J13 |
| Resistivity | 0.35±0.05 | 0.47±0.03 | 0.44±0.04 |
| TCRx10-6/°c | -5~+10 | -10~+20 | 0~40 |
| EMF V S Cu(0-100°c)uv/°c | ≤2 | ≤1 | ≤2 |
| Density(g/cm3) | 8.7 | 8.4 | 8.4 |
| Melting point (°c) | 960 | 960 | 960 |
| Tensile strength(MPa) | 490--539 | 490--539 | 490--539 |
| Elongation(%) | 10-30 | 10-30 | 10-30 |
| Service temperature(°c) | 10-80 | 5-45 | 10-80 |

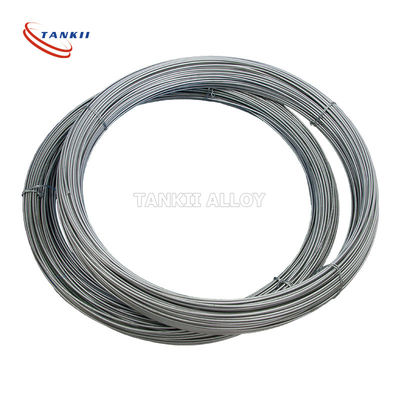

Resistance wire pictures: round wire
Flat wire:
Thick wire green color:
Resistance wire golden color:
Copper alloy wire:
Package of resistance wire :
