0Cr21Al4 High Resistivity FeCrAl Alloy Ribbon For High Temperature Furnace

0Cr21Al4 High Resistivity FeCrAl Alloy Ribbon For High Temperature Furnace
0Cr21Al4 High Resistivity FeCrAl Alloy Ribbon For High Temperature Furnace

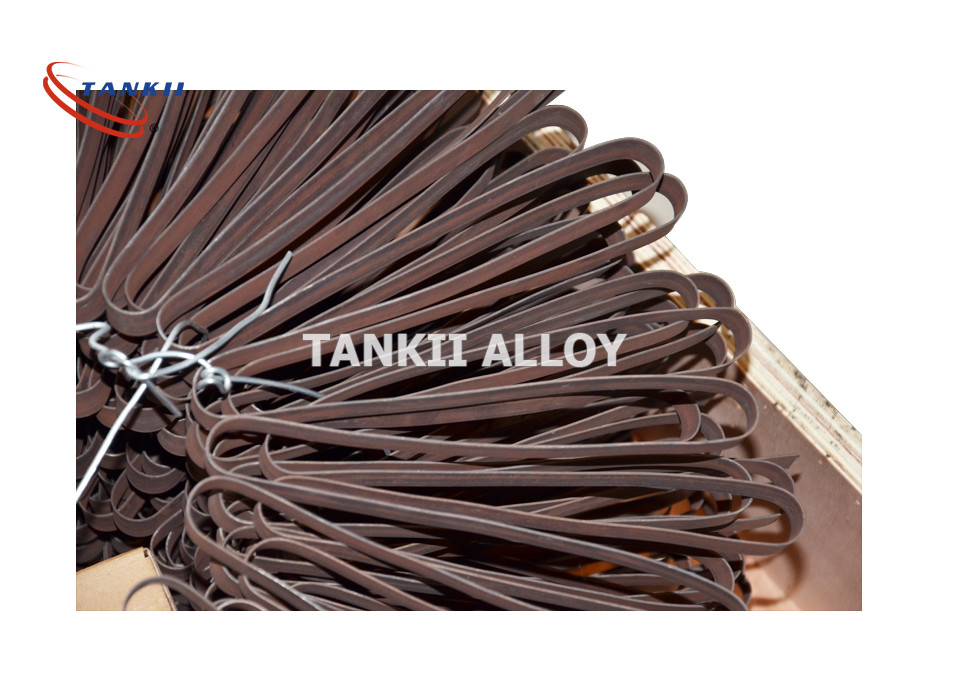

Large Image :  0Cr21Al4 High Resistivity FeCrAl Alloy Ribbon For High Temperature Furnace

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: ISO 9001
Model Number: FeCrAl
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Packaging Details: spool,coil
Delivery Time: 5-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000kg/month

0Cr21Al4 High Resistivity FeCrAl Alloy Ribbon For High Temperature Furnace

Description
Application: Heating Shape: Strip
Material: Iron-Chromium-Aluminium Alloy Chemical Composition: Ferro Chrome Aluminium
Dimensions: 0.05-12mm Surface: Acid White/oxidized
Size: Customized Color: Silvery White/bright Or Oxidized
High Light:

High Resistivity FeCrAl Alloy

,

0Cr21Al4 FeCrAl Alloy

,

High Temperature Furnace FeCrAl Alloy

0Cr15Al5,1Cr13Al4, 0Cr21Al4 High Resistivity FeCrAl Alloy Ribbon Used In High Temperature Furnace



Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
FeCrAl alloy series: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2, and etc.





Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1 --
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
continuous service time(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic




0Cr21Al4 High Resistivity FeCrAl Alloy Ribbon For High Temperature Furnace 00Cr21Al4 High Resistivity FeCrAl Alloy Ribbon For High Temperature Furnace 10Cr21Al4 High Resistivity FeCrAl Alloy Ribbon For High Temperature Furnace 2
