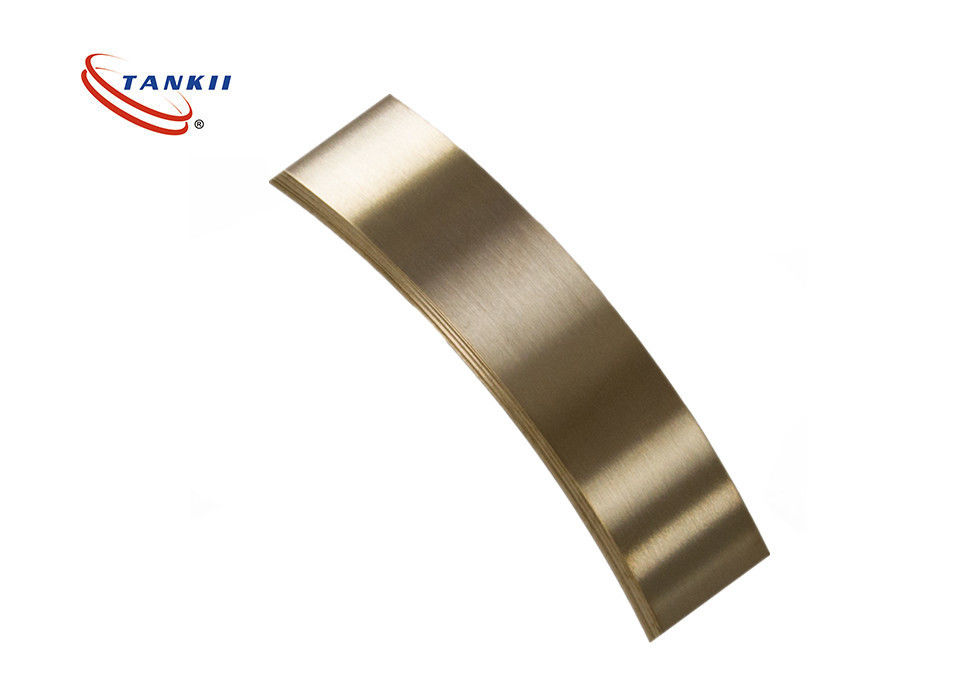

Magnetic Copper Based Manganin Strip 6J13 6j12 Ferrite Micrographic Structure

Magnetic Copper Based Manganin Strip 6J13 6j12 Ferrite Micrographic Structure
Magnetic Copper Based Manganin Strip 6J13 6j12 Ferrite Micrographic Structure

Large Image :  Magnetic Copper Based Manganin Strip 6J13 6j12 Ferrite Micrographic Structure

Product Details:
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001,SGS
Model Number: 6J8, 6J12, 6J13
Payment & Shipping Terms:
Minimum Order Quantity: 5KG
Packaging Details: on spool ,in wooden case
Payment Terms: Western Union, L/C, T/T

Magnetic Copper Based Manganin Strip 6J13 6j12 Ferrite Micrographic Structure

Description
State: Bright Annealed Type: Bare
Application: Heating Conductor Type: Solid
Conductor Material: Copper Insulation Material: None
High Light:

Copper Based Manganin Strip

,

Manganin Strip 6J13

,

Ferrite Micrographic Manganin Strip

Copper based Manganin alloy Strip / wire 6J11

Chemical Content, %

Ni Mn Fe Si Cu Other RoHS Directive
CD Pb Hg Cr
- 10.5-12.5 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.49±0.03ohm mm2/m
Density 8.G/cm3
Temp Coefficient of Resistance at 20 ºC -80~+80α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 635 MPa(min)
Tensile Strength,N/mm2 Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 2
Micrographic Structure Austenite
Magnetic Property Non
Micrographic Structure Ferrite
Magnetic Property Magnetic

Mechanical Properties
Type Electrical resistivity
(20degreeΩ
mm²/m)
temperature coefficient of resistance
(10^6/degree)
Dens
ity
g/mm²
Max. temperature
(°c)
Melting point
(°c)
CuNi1 0.03 <1000 8.9 / 1085
CuNi2 0.05 <1200 8.9
200
1090
CuNi6 0.10 <600 8.9 220 1095
CuNi8 0.12 <570 8.9 250 1097
CuNi10 0.15 <500 8.9 250 1100
CuNi14 0.20 <380 8.9 300 1115
CuNi19 0.25 <250 8.9 300 1135
CuNi23 0.30 <160 8.9 300 1150
CuNi30 0.35 <100 8.9 350 1170
CuNi34 0.40 -0 8.9 350 1180
CuNi40 0.48 ±40 8.9 400 1280
CuNi44 0.49 <-6 8.9 400 1280

Application of Manganin






OTHER Chemical Composition And Main Properties Of Matrial

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays. Pls contact with me whenever you need:
