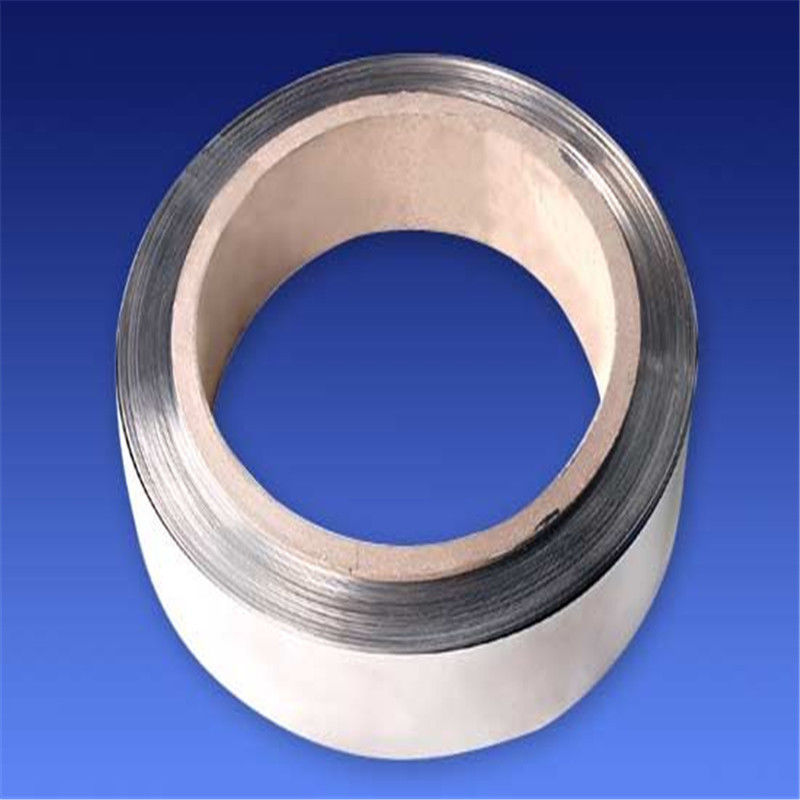

Lithium Battery Ni200 Pure Nickel Strip Chlorine Resistant ASTM B166

Product Details

Place of Origin: Shanghai

Brand Name: Tankii

Certification: DIN, ASTM, JIS

Model Number: Ni200 /201

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Packaging Details: spool ,coil, or as clients' requirement

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000T/month

Get Best Price
Contact Now
Specifications
Highlight:

Lithium Battery Ni200 Nickel Strip

,

Chlorine Resistant 99.6% Nickel Strip

,

ASTM B166 Nickel Strip

Product Name:
Pure Nickel Strip Ni200 /201
Material:
Nickel
Usage:
Lithium Battery
Feature:
Good Form Stability
Size:
As Require
Weight:
Based
Advantage:
High Resistance
Shape:
Strip
Service:
Online Support
MOQ:
20KG
Product Name:
Pure Nickel Strip Ni200 /201
Material:
Nickel
Usage:
Lithium Battery
Feature:
Good Form Stability
Size:
As Require
Weight:
Based
Advantage:
High Resistance
Shape:
Strip
Service:
Online Support
MOQ:
20KG
Description
Lithium Battery Ni200 Pure Nickel Strip Chlorine Resistant ASTM B166

Pure Nickel Strip Ni200 /201 for Lithium Battery 99.6%

Nickel 201 is a low carbon variety compared with Nickel 200, possessing low annealed hardness and a very low work-hardening rate, desirable for cold forming operations. It is highly resistant to corrosion by neutral and alkaline salt solutions, fluorine and chlorine, but in oxidising salt solutions severe attack will occur.
The applications of pure nickel includes food and synthetic fiber processing equipment, electronic parts, aerospace and missile components, handling of sodium hydroxide above 300ºC.
Chemical Composition

Alloy Ni% Mn% Fe% Si% Cu% C% S%
Nickel 201 Min 99 Max 0.35 Max 0.4 Max 0.35 Max 0.25 Max 0.02 Max 0.01

Physical Data

Density 8.9g/cm3
Specific Heat 0.109(456 J/kg.ºC)
Electrical Resistivity 0.085*10-6ohm.m
Melting Point 1435-1445ºC
Thermal Conductivity 79.3 W/m-K
Mean Coeff Thermal Expansion 13.1*10-6m/m.ºC

Typical Mechanical Properties

Mechanical Properties Nickel 201
Tensile Strength 403 Mpa
Yield Strength 103 Mpa
Elongation 50%

Our Production Standard

  Bar Forging Pipe Sheet/Strip Wire
ASTM ASTM B160 ASTM B564 ASTM B161/B163/B725/B751 AMS B162 ASTM B166
