Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: Cr15Al5
Payment & Shipping Terms
Minimum Order Quantity: 30
Packaging Details: spool,coil,carton,wooden pallet or case
Delivery Time: 8-15 days
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 120+ton+per month
Material: |
Iron,chrome,aluminium |
Density: |
7.4 |
Resistivity: |
1.25 |
Type: |
Solid |
Surface: |
Bright |
Shape: |
Round Or Flat |
Material: |
Iron,chrome,aluminium |
Density: |
7.4 |
Resistivity: |
1.25 |
Type: |
Solid |
Surface: |
Bright |
Shape: |
Round Or Flat |

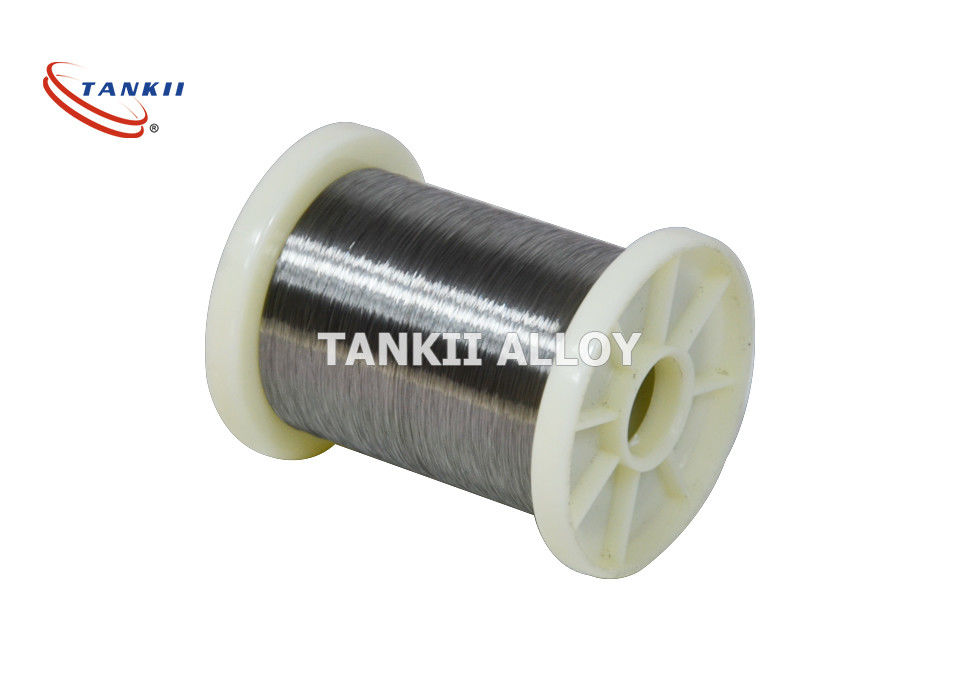

Resistance Wire:
1) Iron Chrome Aluminum Wire
CrAl 14-4, CrAl 15-5, CrAl 20-5, CrAl 25-5, etc.
2) Nichrome Wire
NiCr 80/20, NiCr 70/30, NiCr 60/15, NiCr 35/20
3) Nickel Copper Alloy Wire
Alloy 30, Alloy 60, Alloy 90, Constantan Wire
For more details, pls visit our website or email us.
SPECIFICATIONS:
| 1Cr13Al4 | 0.03-12.0 | 1.25±0.08 | 588-735 | >16 | >6 | 950 | >10000 |
| 0Cr15Al5 | 1.25±0.08 | 588-735 | >16 | >6 | 1000 | >10000 | |
| 0Cr25Al5 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 0Cr23Al5 | 1.35±0.06 | 634-784 | >12 | >5 | 1250 | >8000 | |
| 0Cr21Al6 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 1Cr20Al3 | 1.23±0.06 | 634-784 | >12 | >5 | 1100 | >8000 | |
| 0Cr21Al6Nb | 1.45±0.07 | 634-784 | >12 | >5 | 1350 | >8000 | |
| 0Cr27Al7Mo2 | 0.03-12.0 | 1.53±0.07 | 686-784 | >12 | >5 | 1400 | >8000 |
Relevance:
Fecrak us an ideal alloy with an excessive specific real resistance(1.20-1.30 ohm-mm2/m)which combine a heat resistance up to 1450C and is claimed to be indispensable at temperature extremes.These properties allow using this alloy extensively while manufacturing heating units. It has a perfect corrosive resistance on air,in argon, in a vacuum, oxidizing, sulfur-containing and carboniferous environments.It shows not very high relative density(7.2g/cm3),but it has a great yield limit.
Cr15Al5 Eurofechral
| material | grade | UNS name | DIN | Density | ASTM |
| fecral | 1.4725 | K 92500 | 17470 | 7.4 | B 603-1 |
The main applications:kilns,resistor elements,high-temperature furnaces,industrial tubular heating elements and heaters.
Percentage Composition:
| Al | Cr | Fe | Mn | C | Si | Ni | Cu | Ti | Other | Rare earth elements |
| 4.6-5.8 | 14.5-15.5 | Basis | Max0.7 | till 0.05 | till 0.6 | till 0.6 | ... | till 0.6 | Zr≤0.3 | ... |
Mechanical Characteristics T°20°C
| Number of bowings | Percentage Extension |
| ＞5 times | ＞16% |
Phyiscal Characteristics T°20°C
| Hardness | Density | Breaking load | Maximum Working temperature 850C | Electrical resistivity | Magnetism | Melting points (°C) |
| 200-260 HB | 7.1g/cm3 | 637-784m/pa | 1.30 ohn-mm2/m | Magnetic | 1400 °C |
