1Cr13al4 Alloy 750 Annealed Heating FeCrAl Wire Electric Resistance

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO9001

Model Number: 1Cr13al4

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: negotiable

Packaging Details: spool.coil,carton,wooden pallet or box

Delivery Time: 8-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300+ton+month

Get Best Price
Contact Now
Specifications
Highlight:

Annealed Heating FeCrAl Wire

,

Alloy 750 FeCrAl Wire

,

1Cr13al4 FeCrAl Wire

Material:
Iron,chromium,aluminium
Carbon Content:
Low Carbon
The Highest Temperature:
1250ºC
Melting Point:
1500ºC
Density:
7.1G/M³
Material:
Iron,chromium,aluminium
Carbon Content:
Low Carbon
The Highest Temperature:
1250ºC
Melting Point:
1500ºC
Density:
7.1G/M³
Description
1Cr13al4 Alloy 750 Annealed Heating FeCrAl Wire Electric Resistance
1Cr13al4 Alkro-thal 14 alloy 750 Bright and Annealed Heating Wire

1Cr13Al4 is an iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 750°C (1382°F). The alloy with the characteristics of high resistivity, low temperature coefficient of electric resistance, high operating temperature, good oxidation resistance under high temperature.
It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device. Such as panel heaters, infrared heaters, warming plates, in cartridge heaters, storage heaters, ceramic heaters for cooking plates, kilns elements, radiators, in quartz tube heaters for space heating, toasters, toaster ovens, industrial infrared dryers, coils on molded ceramic fibre for cooking plates with ceramic hobs and so on.

FeCrAl,a family of iron-chromium-aluminum alloys used in a wide range of resistance and high-temperature applications is also used in the form of resistance wires.
FeCrAl resistance electrothermal alloy has high resistivity, good surface oxidation resistance , and high strength at high temperature, good processing performance and weldability , can be widely used in gold , household appliances , machinery manufacturing industry as heating elements and electrical industry as resistance materials.



Chemical Content, %

C P S Mn Si Cr Ni Al Fe Other
Max
0.12 0.025 0.020 0.50 ≤0.7 12.0~15.0 ≤0.60 4.0~6.0 Balance -


Mechanical Properties
Max Continuous Service Temperature:
Resisivity 20ºC:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:
950ºC
1.25ohm mm2/m
7.40g/cm3
52.7 KJ/m·h·ºC
15.4×10-6/ºC (20ºC~1000ºC)
1450ºC
Min 16%
Ferrite
magnetic

Temperature Factor of Electrical Resistivity
20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
1.000 1.005 1.014 1.028 1.044 1.064 1.090

700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1.120 1.132 1.142 1.150 - - -

Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It i the ne environmental protection electric heating wire.And an alternative to the costly nichrome wire.Can be customized according to customer requirements

Usage:
It is widely used in industrial furnace, household electrical appliances, infrared heater, etc.
The key properties:
1.The thickness of surface insulation resistance to oxidation layer: 5-15 μ m.
2. Insulation resistance: multimeter detection infinity.
3.The voltage-endurance of insulating single layer is greater than the alternating voltage 60 ν without breakdown.
4. The use of voltage: 6-380 ν.
5. Using temperature: Maximum1200 ºC
6. Service life: not less than 6000 hours.
7.Thermal shock performance: Electric heating element can withstand the cold and hot impact 600-6000 times without deformation.

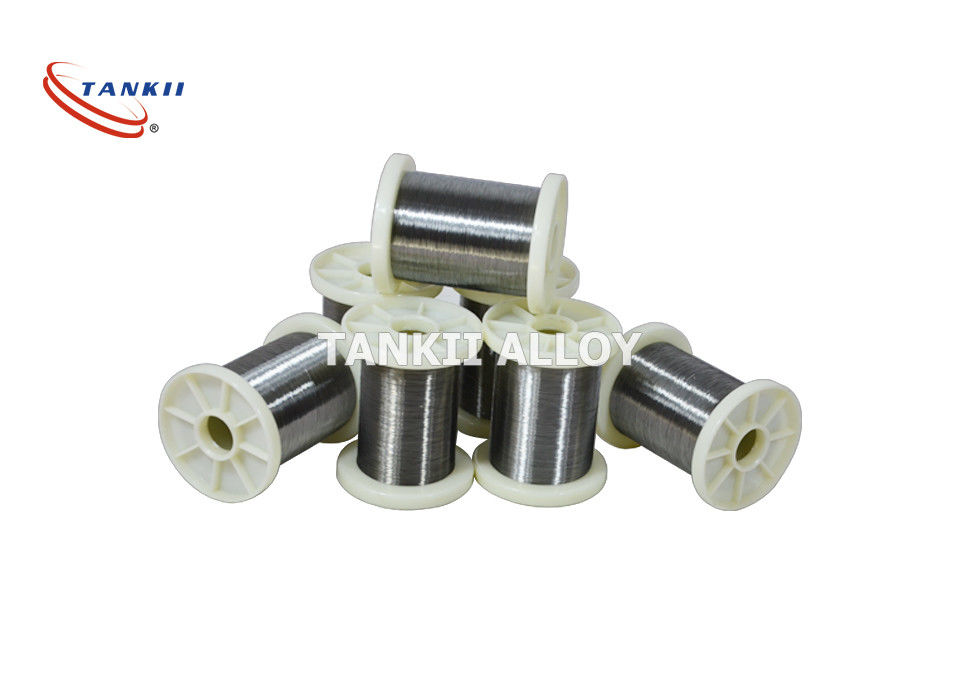

1Cr13al4 Alloy 750 Annealed Heating FeCrAl Wire Electric Resistance 01Cr13al4 Alloy 750 Annealed Heating FeCrAl Wire Electric Resistance 11Cr13al4 Alloy 750 Annealed Heating FeCrAl Wire Electric Resistance 21Cr13al4 Alloy 750 Annealed Heating FeCrAl Wire Electric Resistance 31Cr13al4 Alloy 750 Annealed Heating FeCrAl Wire Electric Resistance 4
