Nichrome Stablohm 675 Ni60Cr15 Electric Resistance Wire

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO9001

Model Number: Ni60Cr15

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: negotiable

Packaging Details: coil,spool,carton,wooden pallet or box

Delivery Time: 8-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300+ton+month

Get Best Price
Contact Now
Specifications
Highlight:

Ni60Cr15 Electric Resistance Wire

,

Nichrome Electric Resistance Wire

,

Stablohm 675 Electric Resistance Wire

Material:
Nickel Chromium
Surface:
Bright
Station:
Soft,hard
Transport Package:
In Roll/Coil/Spool
Material:
Nickel Chromium
Surface:
Bright
Station:
Soft,hard
Transport Package:
In Roll/Coil/Spool
Description
Nichrome Stablohm 675 Ni60Cr15 Electric Resistance Wire
Stablohm 675/Nichrome MWS-675 Ni60Cr15 electric resistance wire

Ni60Cr15 is an austenitic nickel-chromium alloy suitable for temperature applications up to 1150°C. This alloy is characterized by high resistivity, good oxidation resistance, very good form stability, good ductility after use and excellent weldability. Ni60Cr15 is used for electric heating elements in domestic and industrial appliances. Typical applications: potentiometers, heavy-duty resistors, tubular heaters, electric furnaces, grills, hot plates, toasters, storage heaters, fan heaters, hand dryers, etc.

Grade:
Ni60Cr15 ,also called Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Nikrothal 6, MWS-675, Stablohm 675,NiCrC.

Chemical Content(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.08
Max 0.02 Max 0.015 Max0.6 0.75-1.6 15-18 55-61 Max0.5 Bal. -

Mechanical Properties

Max Continuous Service Temperature 1150°C
Resistivity 20°C 1.12 ohm mm2/m
Density 8.2 g/cm3
Thermal Conductivity 45.2 KJ/m.h.°C
Coefficient of Thermal Expansion 17*10-6(20°C~1000°C)
Melting Point 1390°C
Elongation MIn 20%
Magnetic Property nonmagnetic

Temperature Factors Of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
1 1.011 1.024 1.038 1.052 1.064 1.069
700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1.073 1.078 1.088 1.095 1.109 - -


Regular Size:

We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

Bright and white wire--0.025mm~3mm

Pickling wire:1.8mm~10mm

Oxidized wire:0.6mm~10mm

Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm

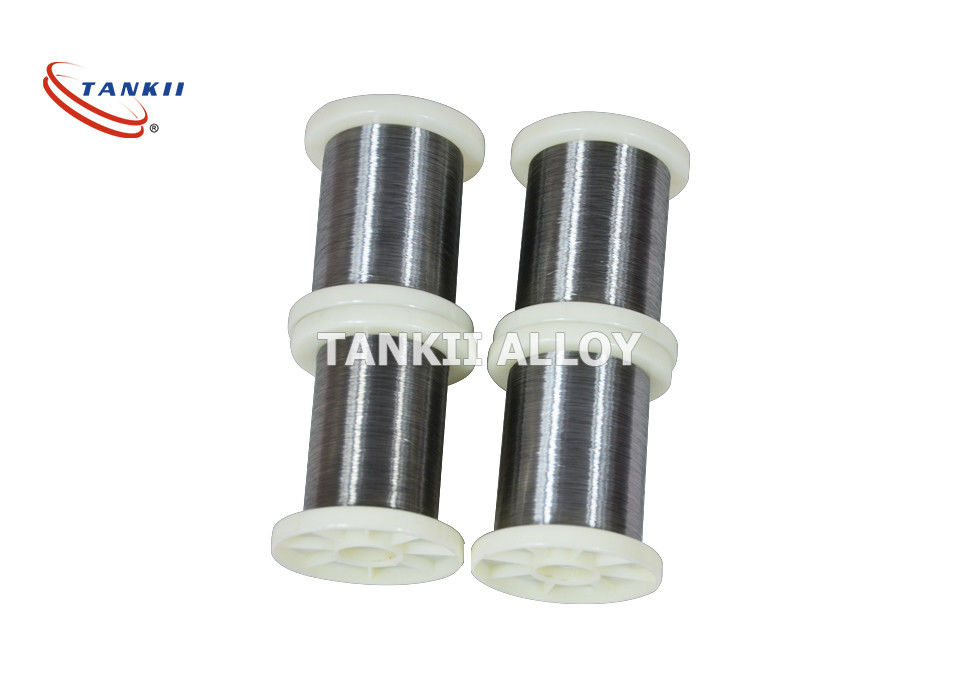

Stablohm 675/Nichrome Ni60Cr15 electric resistance wire
Stablohm 675/Nichrome Ni60Cr15 electric resistance wireNichrome Stablohm 675 Ni60Cr15 Electric Resistance Wire 2Nichrome Stablohm 675 Ni60Cr15 Electric Resistance Wire 3Nichrome Stablohm 675 Ni60Cr15 Electric Resistance Wire 4Nichrome Stablohm 675 Ni60Cr15 Electric Resistance Wire 5Nichrome Stablohm 675 Ni60Cr15 Electric Resistance Wire 6
