Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: Ni80Cr20
Payment & Shipping Terms
Minimum Order Quantity: 30kg
Price: negotiable
Packaging Details: spool,carton,wooden pallet or box
Delivery Time: 8-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300+ton+month
Material: |
Nickel,chromium |
Type: |
Strip |
Density: |
8.4 |
Resistivity: |
1.09 |
Material: |
Nickel,chromium |
Type: |
Strip |
Density: |
8.4 |
Resistivity: |
1.09 |

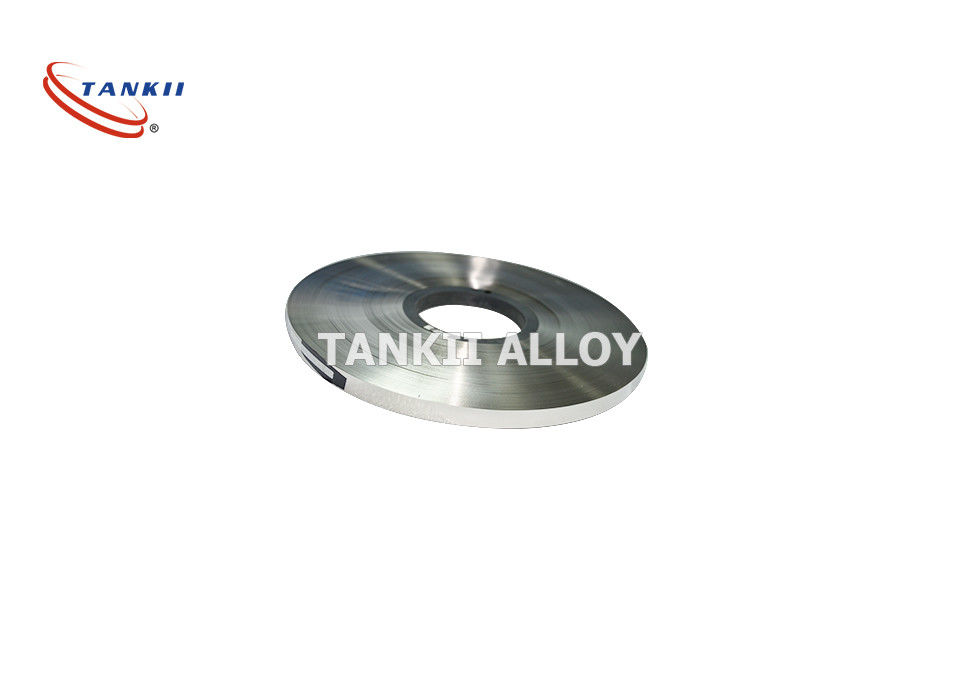

nicromel resistencia electrica Nickel Chromium Nichrome Alloy strip (Ni80Cr20)
Detailed Description:
Grade: NiCr 80/20 is also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1
Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.
Product: Nickel Chromium Alloy Sheet (Ni80Cr20)
Grade: Ni80Cr20
Resistivity: 1.09 ohm mm2/m
Chemical Composition: Nickel 80%, Chrome 20%
Condition: Bright, Annealed, Soft
Dimension: Width 1~300mm, Thickness 0.01~7mm
Producer: Shanghai Tankii Alloy Material Co., Ltd.
Mechanical Properties
| Max Continuous Service: Fast Life(1200ºC) Resisivity( 20ºC)/Ω·m: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1200ºC Min 80 hours 1.09 +/-0.05 (Dia: <0.5mm) 1.13+/-0.05 (Dia: 0.50-3.00 mm) 1.14+/-0.05 (Dia: >3.0mm) 8.4 g/cm3 60.3 KJ/m·h·ºC 18.0 α×10-6/ºC 1400 ºC Min 20% Austenite nonmagnetic |
We also produce nichrome sheet in other grade such as NiCr 60, NiCr 40, NiCr 70, etc.
