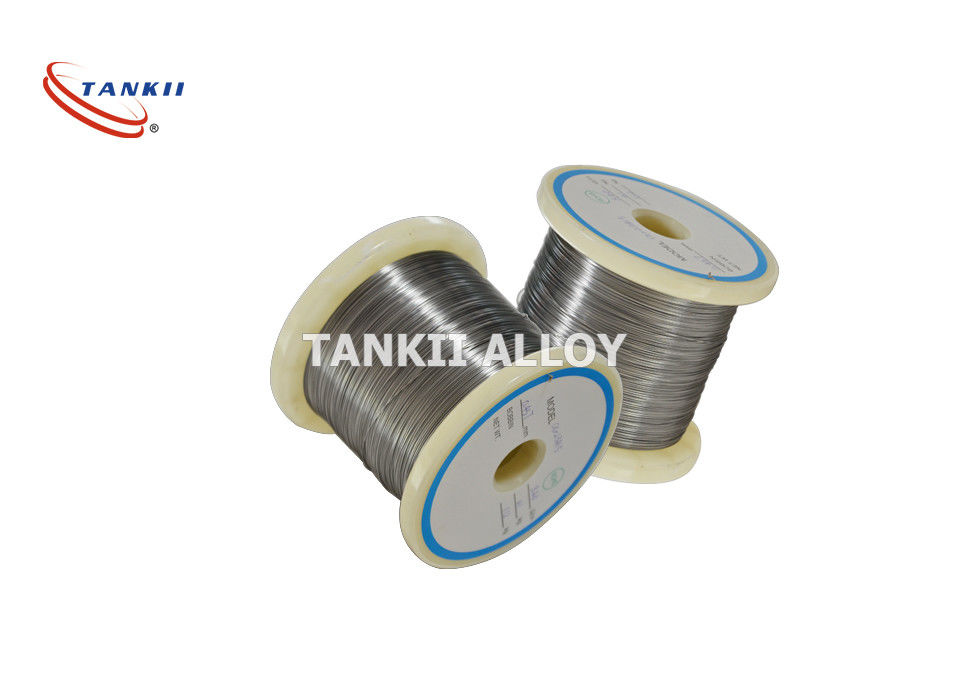

0.1mm Dia FeCrAl Electric Resistance Wire for Heating Element with 1250C Max Temperature and Iron Chromium Aluminium Composition

Name: 0.1mm Dia FeCrAl Electric Resistance Wire for Heating Element with 1250C Max Temperature and Iron Chromium Aluminium Composition
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0Cr25Al5
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: Negotiable

Packaging Details: In Coil

Delivery Time: 7~20 days after getting the payment

Payment Terms: L/C,T/T,Western Union

Supply Ability: 1000 tons/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Dia 0.1mm Electric Resistance Wire, E Cigarette Heating Element FeCrAl Wire, 0Cr25Al5 Electric Resistance Wire


Item:	Electric Resistance Heating Wire 0.05mm To 8mm Used For Heating Element	Dia:	0.05~8mm
Package:	Bobbin, Spools, Wooden Box	Leading Time:	7~20 Dyas After Getting The Payment

Item:	Electric Resistance Heating Wire 0.05mm To 8mm Used For Heating Element
Dia:	0.05~8mm
Package:	Bobbin, Spools, Wooden Box
Leading Time:	7~20 Dyas After Getting The Payment

Description

0.1mm Dia FeCrAl Electric Resistance Wire for Heating Element with 1250C Max Temperature and Iron Chromium Aluminium Composition

Dia 0.1mm FeCrAl Electric Resistance Wire For Heating Element

Product Overview

Electric Resistance Heating Wire 0.05mm To 8mm Used For Heating Element

Composition: Iron Chromium Aluminium
Magnetic Max Temperature: 1250°C
Usage: Electrical heating appliances, electronic resistors, heater elements, and more

Product Description

FeCrAl has been used extensively as heating elements in industrial furnaces and electrical kilns. FeCrAl has less hot strength than Tophet alloys but much higher melting point.

Shanghai TANKII ALLOY MATERIAL Co., Ltd. is a leading FeCrAl and Alchrome alloy producer in China, recognized as one of the most professional manufacturers in the world.

Specifications

Locomotive Resistance Strip

Thickness: 0.6mm - 1.5mm
Width: 60mm - 90mm

Electric Ceramic Cooktop Resistance Strip

Thickness: 0.04mm - 1.0mm
Width: 5mm - 12mm
Thickness & Width: (0.04mm - 1.0mm) * 12mm (and above)

Low Resistance Ribbon

Thickness & Width: (0.2mm - 1.5mm) * 5mm

Industrial Furnace Ribbon

Thickness: 1.5mm - 3.0mm
Width: 10mm - 30mm

Wire

Diameter: 0.1mm - 8mm

Chemical Composition and Properties

Properties Grade	1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical Composition (%)
Cr	12.0-15.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
Fe	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.
Other						Nb0.5	Mo1.8-2.2
Max Continuous Service Temperature (°C)	950	1250	1250	1250	1100	1350	1400
Resistivity 20°C (Ωmm²/m)	1.25±0.08	1.42±0.06	1.42±0.07	1.35±0.07	1.23±0.07	1.45±0.07	1.53±0.07
Density (g/cm³)	7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal Conductivity (KJ/m@h@°C)	52.7	46.1	63.2	60.2	46.9	46.1	45.2
Coefficient of Thermal Expansion (α*10⁻⁶/°C)	15.4	16	14.7	15	13.5	16	16
Approximate Melting Point (°C)	1450	1500	1500	1500	1500	1510	1520
Tensile Strength (N/mm²)	580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation (%)	>16	>12	>12	>12	>12	>12	>10
Section Variation Shrink Rate (%)	65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeatedly Bend Frequency (F/R)	>5	>5	>5	>5	>5	>5	>5
Hardness (H.B.)	200-260	200-260	200-260	200-260	200-260	200-260	200-260
Continuous Service Time	no	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic Structure	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic Property	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

Typical Application Areas

Pre-heating of aluminium
Homogenising of aluminium
Heat treatment in the metallurgical industry
Drying of ore concentrates
Drying of materials in the wood processing industry
Roasting and drying in the food industry
Baking in large bakery ovens
Drying of chemicals
Drying and stoving of paints (stoving furnaces)

Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
