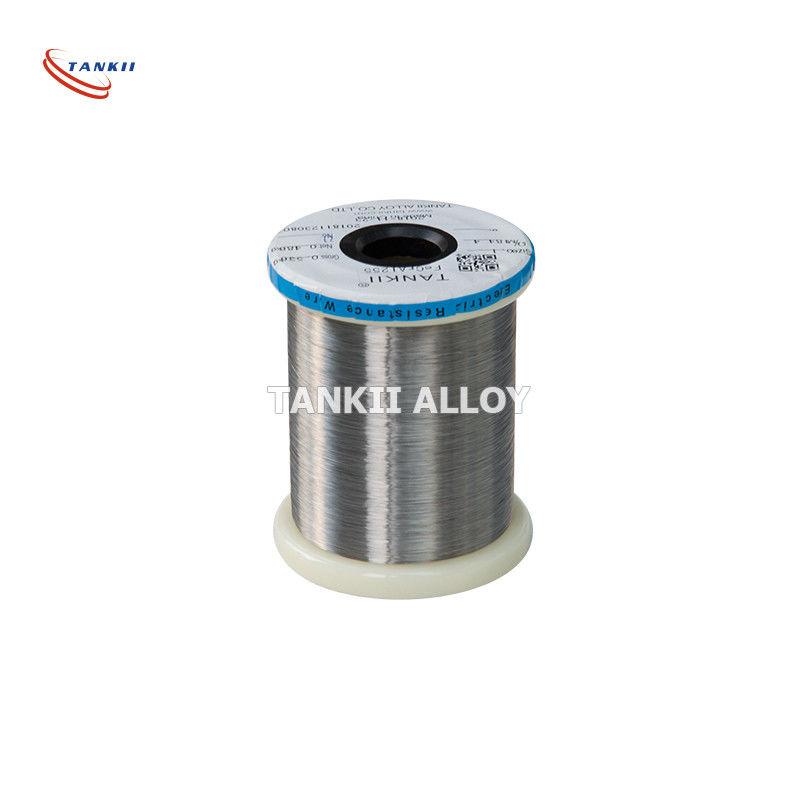

0cr21al6nb TANKII A Fecral Alloy Resistohm 145 For Furnace

Name: 0cr21al6nb TANKII A Fecral Alloy Resistohm 145 For Furnace
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0Cr21Al6Nb
Price: 26.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai,China

Brand Name: TANKII

Certification: JIS,GB,DIN,BS,ASTM,AISI,CTI

Model Number: 0Cr21Al6Nb

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Packaging Details: on spool,paper box,wooden case/pallet,in coil

Delivery Time: 30days

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 600T/per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    0cr21al6nb TANKII A Fecral Alloy, Resistohm 145 Fecral Alloy, Furnace Fecral Alloy


Port:	Shanghai,China	Brand:	TANKII
Application:	Furnace Heating Wire	Shape:	Wire
Marerial:	FeCrAl	Dimensions:	Specifications
Surface:	Poblish Bright	Density:	7.1g/cm³
Color:	Silver White	Feature:	Good Form Stability
Condition:	Soft	Surface Treatment:	Bright Oxidation
Thickness:	0.038-10mm	Cr:	21.0-23.0
Al:	5.0-7.0	Re:	Opportune
Fe:	Bal	Nb:	0.5
Max Continuous Operating Temperature(℃）:	1350	Resisivity 20℃(Ωmm/2m):	1.45
Thermalconductivity At 20 ℃,W/(m·k):	0.49	Linear Expansion Coefficient(x1-6/℃)20-1000℃:	16
Approximate Melting Point(℃):	1510	Tensile Strength(N/m㎡):	650-800
Elongation(%):	>12	Section Variation Shrink Rate(%):	65-75
Frepeatedly Bend Frequency (F/R):	>5	Hardness(H.B):	200-260
Micrographic Structure:	Ferrite	Magnetic Property:	Magnetic
Fast Life(h/℃):	>50/1350	MOQ:	20KG

Port:	Shanghai,China
Brand:	TANKII
Application:	Furnace Heating Wire
Shape:	Wire
Marerial:	FeCrAl
Dimensions:	Specifications
Surface:	Poblish Bright
Density:	7.1g/cm³
Color:	Silver White
Feature:	Good Form Stability
Condition:	Soft
Surface Treatment:	Bright Oxidation
Thickness:	0.038-10mm
Cr:	21.0-23.0
Al:	5.0-7.0
Re:	Opportune
Fe:	Bal
Nb:	0.5
Max Continuous Operating Temperature(℃）:	1350
Resisivity 20℃(Ωmm/2m):	1.45
Thermalconductivity At 20 ℃,W/(m·k):	0.49
Linear Expansion Coefficient(x1-6/℃)20-1000℃:	16
Approximate Melting Point(℃):	1510
Tensile Strength(N/m㎡):	650-800
Elongation(%):	>12
Section Variation Shrink Rate(%):	65-75
Frepeatedly Bend Frequency (F/R):	>5
Hardness(H.B):	200-260
Micrographic Structure:	Ferrite
Magnetic Property:	Magnetic
Fast Life(h/℃):	>50/1350
MOQ:	20KG

Description

0cr21al6nb TANKII A Fecral Alloy Resistohm 145 For Furnace

FeCrAl alloy is high resistance and electrical heating alloy.FeCrAl alloy can reach process temperatures of 2192 to 2282℉,corresponding to a resistance temperature of 2372℉.

In order to improve anti-oxidation ability and increase working life,we usually put ddition of rare earths in the alloy,such as La+Ce,Yttrium,Hafnium,Ziconium,etc.

It is normally used in electrical furnace ,glass top hobs,quartz tube heaters,resistors,catalytic converter,heating elements and etc.

0Cr21Al6Nb common name:KA1,TANKII A1,TANKII,Alloy 875,Resistohm145,Aluchrom 0,Alchrome 875,MWS-875,Stablohm 875.

0Cr21Al6Nb is an iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications for OhmAlloy145 are used in industrial electric furnace, household electrical appliance and far infrared ray device.

Model No.	0Cr21Al6Nb
transport package	spool, paper box,wooden case
trademark	tankii
elongation(%)	>12
section variation shrink rate(%)	65-75
Hardness(H.B)	200-260
fast life(h/℃)	20KG
