Product Details
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: JIS,GB,DIN,BS,ASTM,AISI,CTI
Model Number: Ni60Cr15
Payment & Shipping Terms
Minimum Order Quantity: 100KG
Price: 15-30$
Packaging Details: on spool,paper box,wooden case/pallet,in coil
Delivery Time: 30days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600T per moth
Port: |
Shanghai,China |
Brand: |
TANKII |
Ni(%): |
55.0-61.0 |
Cr(%): |
15.0-18.0 |
Fe(<): |
Bal |
Max Continuous Operating Temperature(℃): |
1150 |
Resistivity(Ω/cmf,20℃): |
1.11 |
Resistivity(μm/m,60℉): |
668 |
Density(g/㏄): |
8.2 |
Thermal Conductivity (KJ/m·h·℃）: |
45.2 |
Linear Expansion Coefficient(x10﹣6/: |
17.0 |
Melting Point (℃): |
1390 |
Hardness(Hv): |
180 |
Tensile Strength（N/mm²）: |
750 |
Elongation（%））: |
>20 |
Micrographic Structure: |
Austenite |
Magnetic Property: |
Slightly |
Fast Life (h/℃）: |
>81/1200 |
Application: |
Heating Element And Resistor |
Powder Or Not: |
Not Powder |
Feature: |
Good Weld Ability |
Surface: |
Bright |
MOQ: |
100kg |
Port: |
Shanghai,China |
Brand: |
TANKII |
Ni(%): |
55.0-61.0 |
Cr(%): |
15.0-18.0 |
Fe(<): |
Bal |
Max Continuous Operating Temperature(℃): |
1150 |
Resistivity(Ω/cmf,20℃): |
1.11 |
Resistivity(μm/m,60℉): |
668 |
Density(g/㏄): |
8.2 |
Thermal Conductivity (KJ/m·h·℃）: |
45.2 |
Linear Expansion Coefficient(x10﹣6/: |
17.0 |
Melting Point (℃): |
1390 |
Hardness(Hv): |
180 |
Tensile Strength（N/mm²）: |
750 |
Elongation（%））: |
>20 |
Micrographic Structure: |
Austenite |
Magnetic Property: |
Slightly |
Fast Life (h/℃）: |
>81/1200 |
Application: |
Heating Element And Resistor |
Powder Or Not: |
Not Powder |
Feature: |
Good Weld Ability |
Surface: |
Bright |
MOQ: |
100kg |

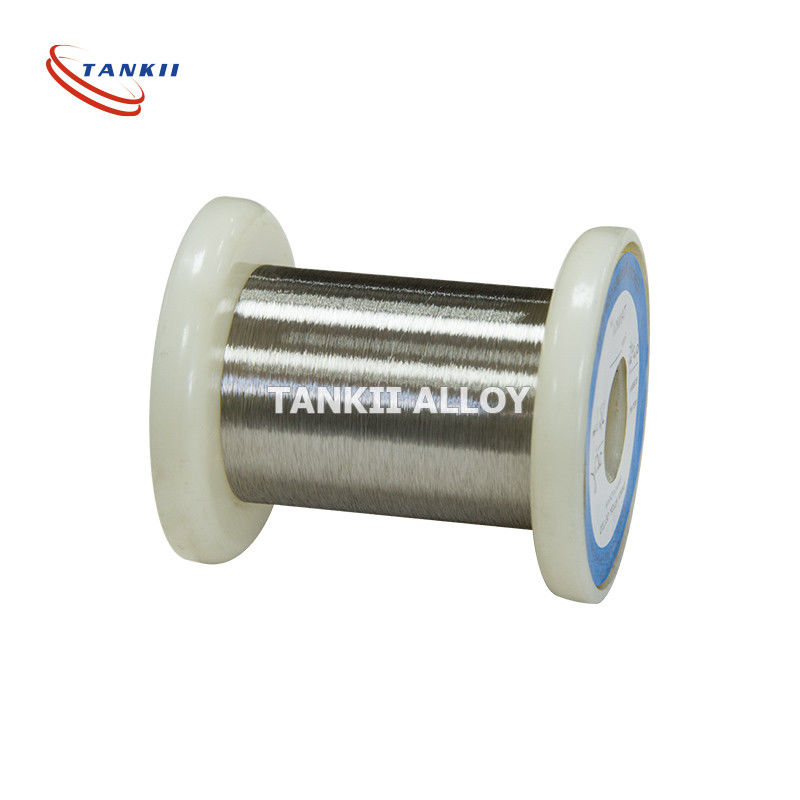

Nickel chromium alloy has high resistivity,good anti-oxidation properties,high temperature strrength, very good form stability and weld ability.It is widely used in electrical heating element material, resistor,industriaL furnaces,etc.
