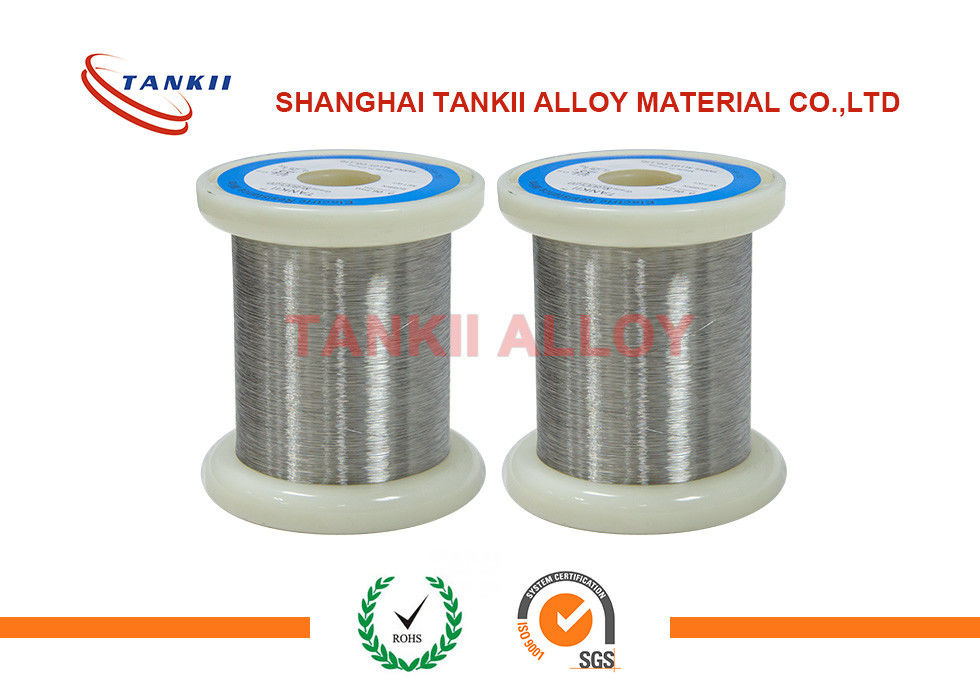

0.025mm 201 Pure Nickel Wire For Electrical Industry High Temperature Resistance

Name: 0.025mm 201 Pure Nickel Wire For Electrical Industry High Temperature Resistance
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nickel wire
Price: 20.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai,China

Brand Name: TANKII

Certification: BS,ASTM,AISI,CTI

Model Number: Nickel wire

Payment & Shipping Terms

Minimum Order Quantity: 120KG

Price: $15~$25/KG

Packaging Details: on spool,paper box,wooden case/pallet,in coil

Delivery Time: 30days

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 700T per moth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Electrical Industry Pure Nickel Wire 0.025mm, High Temperature Resistance Pure Nickel Wire, 201 Nickel Coil Wire


Port:	ShangHai ,China	Brand:	Tankii
Application:	Industry Heating Elements	Grade:	Pure Nickel
Ultimate Strenrth (≥ Mpa):	462Mpa	Type:	Nickel
Resistance(μω.m):	Stable	Ni( Min):	99.9%
Powder Or Not:	Not Powder	Elongation(≥ %):	35%
Surface:	Bright	Thickness:	0.01~6mm
Material:	Nickel Material	Width:	10~1000mm
Standard:	ASTM	Product Name:	High Temperture Resistance 99.98% Pure Nickel Wire (Ni4) 0.025mm In Stock Used In Electrical Industry
Melting Point:	1455℃	Color:	Nickel Nature
Purity:	More Than 99.9%	Faeture:	Weak Magnetic
Density:	8.9g/cm3

Port:	ShangHai ,China
Brand:	Tankii
Application:	Industry Heating Elements
Grade:	Pure Nickel
Ultimate Strenrth (≥ Mpa):	462Mpa
Type:	Nickel
Resistance(μω.m):	Stable
Ni( Min):	99.9%
Powder Or Not:	Not Powder
Elongation(≥ %):	35%
Surface:	Bright
Thickness:	0.01~6mm
Material:	Nickel Material
Width:	10~1000mm
Standard:	ASTM
Product Name:	High Temperture Resistance 99.98% Pure Nickel Wire (Ni4) 0.025mm In Stock Used In Electrical Industry
Melting Point:	1455℃
Color:	Nickel Nature
Purity:	More Than 99.9%
Faeture:	Weak Magnetic
Density:	8.9g/cm3

Description

0.025mm 201 Pure Nickel Wire For Electrical Industry High Temperature Resistance

Product Description:

Nickel 200 is commercially pure wrought nickel. It is highly resistant to various reducing chemicals. It can also be used in oxidizing conditions that cause the formation of a passive oxide film, for instance its unexcelled resistance to caustic alkalis. Nickel 200 is limited to service at temperatures below 315℃, because at higher temperatures it suffers from graphitization which results in severely compromised properties. In that circumstance, Nickel 201 is used instead. It has a high Curietemperature and good magnetostrictive properties. Its thermal and electrical conductivities are higher than nickel alloys.

Nickel 201 is the low-carbon version of Nickel 200. Because of its low carbon content, Nickel 201 is not subject to embrittlement by intergranularly precipitated carbon or graphite when exposed to temperatures of 315 to 760℃ for prolonged time if carbonaceous materials are not in contact with it. Therefore, it is a substitute for Nickel 200 in Applications above 315℃. However it does suffer from intergranular embrittlement by sulfur compounds at temperatures above 315℃. Sodium peroxide can be used to change them to sulfates to counteract their effect.

Alloy	Ni%	Mn%	Fe%	Si%	Cu%	C%	S%
Nickel 201	Min 99	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.02	Max 0.01
Nickel 200	Min 99.2	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.15	Max 0.01
