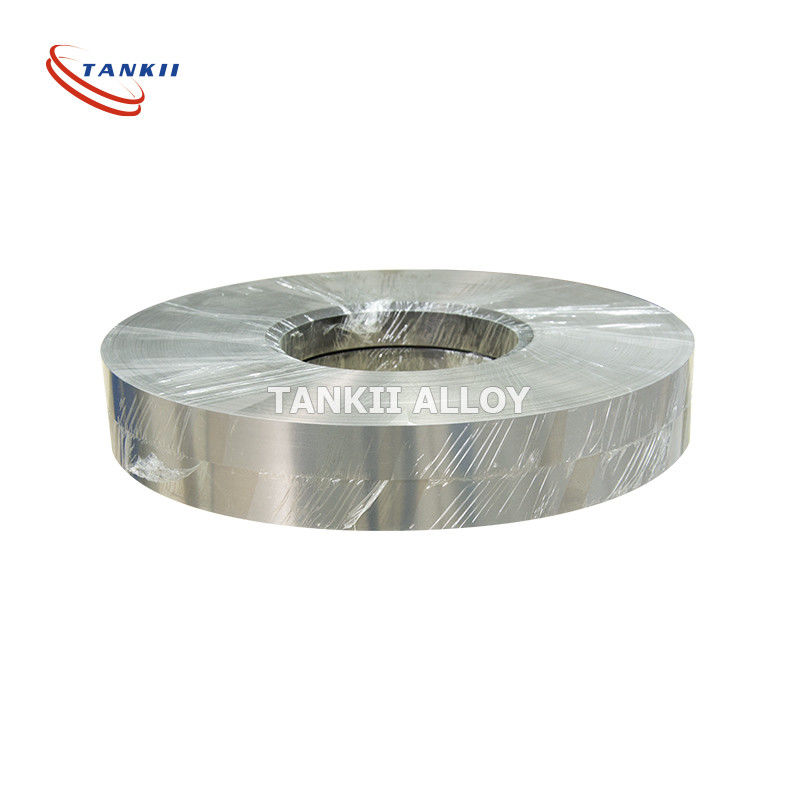

0Cr21Al6Nb FeCrAl Alloy Heating Resistance Strip Annealed
0Cr21Al6Nb FeCrAl Alloy Heating Resistance Strip Annealed
0Cr21Al6Nb FeCrAl Alloy Heating Resistance Strip Annealed
0Cr21Al6Nb FeCrAl Alloy Heating Resistance Strip Annealed
0Cr21Al6Nb FeCrAl Alloy Heating Resistance Strip Annealed

0Cr21Al6Nb FeCrAl Alloy Heating Resistance Strip Annealed

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2008

Model Number: 0Cr21Al6nb

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: negotiate

Packaging Details: Spool, Coil, Carton, Wooden case with Plastic Film According to Client's Requirements

Delivery Time: 7-15 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20+TON+MONTH

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

0Cr21Al6Nb FeCrAl Alloy

,

Heating Resistance Strip FeCrAl Alloy

,

Annealed FeCrAl Alloy

Size:
1.0*220
Condition:
Annealed Soft
Stock:
Available
Application:
Heating
Advantages:
High Resistance
Density:
7.25
Size:
1.0*220
Condition:
Annealed Soft
Stock:
Available
Application:
Heating
Advantages:
High Resistance
Density:
7.25
Description
0Cr21Al6Nb FeCrAl Alloy Heating Resistance Strip Annealed

1.0*200 0Cr21Al6Nb FeCrAl heating resistance strip ribbon in stock for heating elements


1. Description
With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature, It is widely used in industrial electric furnace, household electrical appliance and Far infrared ray device.

2. Specification
Wire:
Diameter: 0.15mm-8.0mm
Strip:
Thickness: 0.6mm-1.5mm
Width: over 40mm


3. Usage
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

4. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

5. Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet

6. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;

C P S Mn Si Cr Ni Al Fe Other
Max
0.05 0.025 0.025 0.70 Max 0.6 21.0~23.0 Max 0.60 5.0~7.0 Bal. Nb 0.5
Mechanical Properties
Max Continuous Service Temp 1350ºC
Resistivity at 20ºC 1.45 ohm mm2/m
Density 7.1 g/cm3
Thermal Conductivity 46.1 KJ/m·h·ºC
Coefficient of Thermal Expansion 16.0×10-6/ºC
Melting Point 1510ºC
Tensile Strength 637~784 Mpa
Elongation Min 12%
Section Variation Shrink Rate 65~75%
Repeatedly Bend Frequency Min 5 times
Continuous Service Time -
Hardness 200-260HB
Micrographic Structure Ferrite
Magnetic Property Magnetic


Temperature Factor of Electrical Resistivity
20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC 700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC
1 0.997 0.996 0.994 0.991 0.990 0.990 0.990 0.990 0.990 0.990 0.990 0.990



Standard Specification:

Grade Main chemical composition Hightest temperature ℃

Rrsistivity
µΩ.m

 Melting point ℃ Tensile strength N/mm²

Elogation
%

Working life
h/℃

Magnetic
properties
  Cr Al Ni Fe
OCr21Al4 17-21 3-4 - - 1100 1.23±0.06 1500 750 ≥12 ≥80/1250 magnetic
OCr25Al5 23-26 4.5-6.5 - - 1250 1.42±0.07 1500 750 ≥12 ≥80/1300 magnetic
OCr21Al6Nb 21-23 5-7 - - 1350 1.43±0.07 1510 750 ≥12 ≥50/1350 magnetic
OCr27Al7Mo2 22-24 5-7 - - 1400 1.53±0.07 1520 750 ≥10 ≥50/1350 magnetic
KSC 26.8-27.8 6-7 - - 1350 1.44±0.05 1510 750 ≥16 ≥60/1350 magnetic
Cr20Ni80 20-23 - Rest ≤1.0 1200 1.09±0.05 1400 750 ≥20 ≥80/1200 Non-magnetic
Cr30Ni70 30 - Rest ≤1.0 1250 1.18±0.05 1380 750 ≥20 ≥50/1250 Non-magnetic
Cr15Ni60 15-18 - 55 Rest 1150 1.12±0.05 1390 750 ≥20 ≥80/1150 Non-magnetic
Cr20Ni35 18-21 - 35 Rest 1100 1.04±0.05 1390 750 ≥20 ≥80/1100 Weak magnetic
Cr20Ni30 20 - 32 Rest 1100 1.04±0.05 1390 750 ≥20 ≥80/1100 Weak magnetic
