Ni200 Ni201 Pure Nickel Strip

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2015

Model Number: Ni200

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: To negotiate

Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film according to the client´s requirements

Delivery Time: 7-15 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 2000+TON+YEAR

Get Best Price
Contact Now
Specifications
Highlight:

nickel foil

,

nickel copper alloy

Nickel:
Min 99%
Surface:
Bright
Treatment:
Cold Rolled
State:
Soft
Grade:
Ni200, Ni201, N6, N4
Nickel:
Min 99%
Surface:
Bright
Treatment:
Cold Rolled
State:
Soft
Grade:
Ni200, Ni201, N6, N4
Description
Ni200 Ni201 Pure Nickel Strip

Ni200 Ni201 Pure Nickel Strip/ Foil for Electric Battery Application



Product Description




Name

Nickel Strip

Material

Ni200, Ni201

Color

bright, oxidized

Size

Dia 0.025mm-0.6mm Coil / Straight/Spool

Standard

ASTM B880-1988

Surface

Polished

Standard

ASTM B160/B162, AISI,DIN,GB etc

Application

Electric apparatus, chemical, heating etc.

Package

Carton or wooden case as demanded

Sample

All in stock

Certification


Official Quality Certification and test report.







Ni 200 is a 99.6% pure wrought nickel alloy. Sold under the brand names Nickel Alloy Ni-200, Commercially Pure Nickel, and Low Alloy Nickel, Ni 200 offers users a wide range of benefits including its primary component, nickel. Nickel is one of the world’s toughest metals and imparts a number of advantages to this material. Ni 200 has excellent resistance to most corrosive and caustic environments, media, alkalis, and acids (sulfuric, hydrochloric, hydrofluoric). Used both in and outdoors, Ni 200 also has:



The surface of the pure nickel strip should be smooth and clean without wind layers, cracks, bubbles, spikes, bends and inclusions. Minor local defects, such as scratches, spots, pits, dents, roll marks, etc., that do not exceed the allowable deviation of the strip thickness are allowed. Slight oxidation, blackening, and slight local oil marks are not used as the basis for scrapping. Cut strips on both sides without burrs, cracks, or curls. The strip should be straight, but slight waves are allowed; the lateral bend of the strip should not exceed 3 mm per meter.

Pure nickel belts show good corrosion resistance in many acidic and alkaline environments and are mainly used in reducing media. It has good mechanical properties in a relatively wide temperature range and is easy to cold work. Therefore, it is widely used in plate heat exchangers, bellows compensation expansion joints, caustic soda, chemical equipment, etc. However, in the actual production of pure nickel strip, as with titanium strip coils, there are also many technical difficulties in the annealing of the entire strip of nickel strips. If the annealing temperature is too high and the holding time is too long, the entire nickel belt roll is easily annealed and bonded, but if the holding time is not enough, the entire roll cannot be retracted. Therefore, low temperature and long time annealing is an effective way to reduce the overall coil annealing of nickel strip steel.

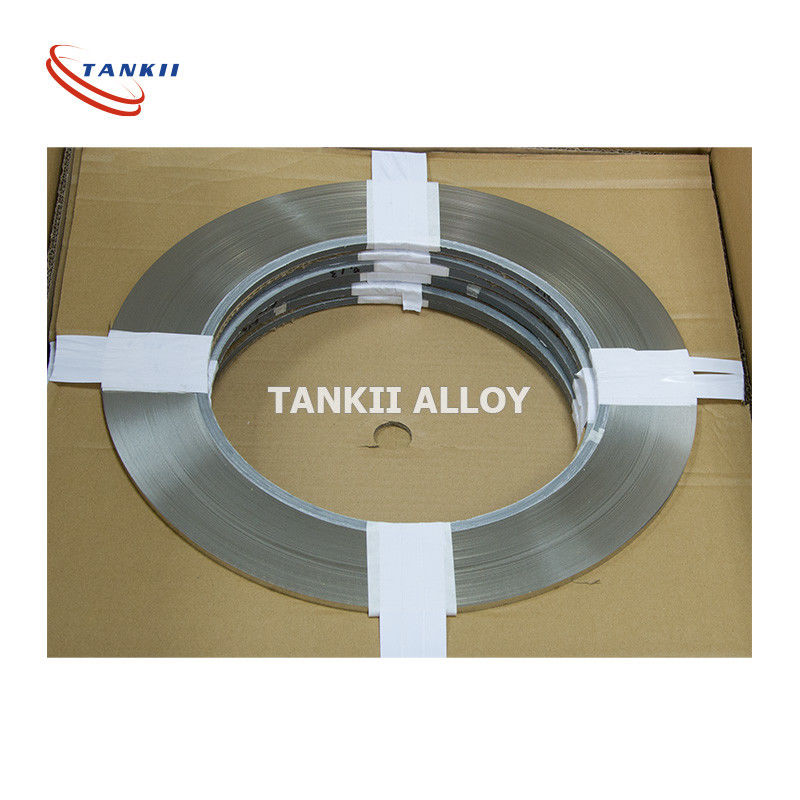

Ni200 Ni201 Pure Nickel Strip 0Ni200 Ni201 Pure Nickel Strip 1
